0137-40XX

PCB Terminal BlocksPCB Terminal Blocks

Pitch : 3.50 mm, 300V, 5A

AccessoriesPDF Download Inquiry Add

CAD data

  • General information
    • Short description

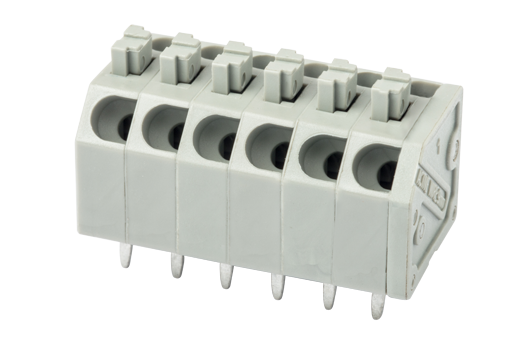

    • PCB Terminal Blocks, Push-in Design
    • Long description
    • PCB Terminal Blocks, Push-in Design, Wave soldering, Pitch:3.50mm, 300V, 5A
    • Category
    • PCB Terminal Blocks
    • Pitch (mm)
    • 3.50
    • Color
    • Grey (default)
    • Connection method
    • Push in design
    • Type of locking
    • Without
    • Soldering method
    • Wave soldering
    • Length (mm)
    • 3.50*(P-1)+1.50
    • Width (mm)
    • 11
    • Height (mm)
    • 11.95
    • Pin demensions (Thickness x Width)(mm)
    • 0.5x0.8
    • PCB hole diameter (mm)
    • 1.2
    • Number of positions
    • 02P~24P
    • Level
    • Single level
  • Material information
    • Insulation material
    • PA
    • Insulation material group
    • I
    • Flame retardant rating , compliant with UL94
    • V0
    • Insulation resistance
    • ≥500MΩ at DC 500V
    • Conductor material
    • COPPER ALLOY
    • Plating of conductor surface
    • Tin PLATED
  • Connection data-IEC
    • Rated voltage (V)
    • 160
    • Rated current (A)
    • 17.5
    • Rated voltage (II/2)(V)
    • 320
    • Rated voltage (III/2) (V)
    • 160
    • Rated voltage (III/3)(V)
    • 160
    • Rated impulse voltage (II/2)(KV)
    • 2.5
    • Rated impulse voltage (III/2)(KV)
    • 2.5
    • Rated impulse voltage (III/3)(KV)
    • 2.5
    • Conductor cross section solid. min (mm²)
    • 0.2
    • Conductor cross section solid.max (mm²)
    • 1.5
    • Conductor cross section stranded. min (mm²)
    • 0.5
    • Conductor cross section stranded. max (mm²)
    • 1.5
    • Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
    • 0.25
    • Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
    • 1
    • Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
    • 0.25
    • Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
    • 1
    • Slotted screwdriver size (Blade thickness x Width)(mm)
    • 0.4x2.5
    • Stripping Length (mm)
    • 9~10
  • Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 300
    • Rated current (UL/CUL Group B)(A)
    • 5
    • Rated voltage (UL/CUL Group D)(V)
    • 300
    • Rated current (UL/CUL Group D)(A)
    • 5
    • Min. solid wire connection (AWG) acc. to UL/CUL
    • 26
    • Max. solid wire connection AWG acc. to UL/CUL
    • 16
    • Min. stranded wire connection AWG acc. to UL/CUL
    • 24
    • Max. stranded wire connection AWG acc. to UL/CUL
    • 20
  • Environment & Safety
    • Finger protection (YES or NO)
    • YES
    • Operating temperature. max (°C)
    • 120
    • Operating temperature. min (°C)
    • -40
  • VDE Approval
    • Wire Range (mm²)
    • 0.2~1.5
    • Rated voltage (V)
    • 160
    • Rated current (A)
    • 17.5
