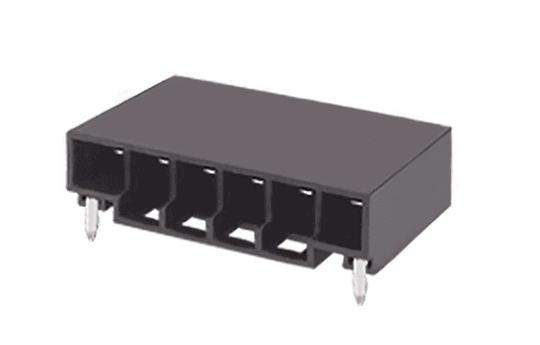

0150-26XX

PCB Terminal BlocksPCB Connector-Socket

Pitch : 5.08 mm, 300V, 16A

AccessoriesPDF Download Inquiry Add

CAD data

  • General information
    • Short description
    • PCB Connector–Socket, Wave soldering
    • Long description
    • PCB Connector–Socket, Wave soldering, Pitch:5.08mm, 300V, 16A
    • Category
    • PCB Connector–Socket
    • Pitch (mm)
    • 5.08
    • Color
    • Black (default)
    • Type of locking
    • With lock flange
    • Soldering method
    • Wave soldering
    • Length (mm)
    • 5.08*(P-1)+8.0
    • Width (mm)
    • 17.2
    • Height (mm)
    • 10.5
    • Pin demensions (Thickness x Width)(mm)
    • 0.8x1.8
    • PCB hole diameter (mm)
    • Front: φ1.7~1.8 /Back:1*2.65
    • Number of positions
    • 02P~24P
    • Level
    • Single level
  • Material information
    • Insulation material
    • PBT
    • Insulation material group
    • IIIa
    • Flame retardant rating , compliant with UL94
    • V0
    • Insulation resistance
    • ≥1000MΩ at DC 500V
    • Conductor material
    • COPPER ALLOY
    • Plating of conductor surface
    • Tin PLATED
  • Connection data-IEC
    • Rated voltage (V)
    • 320
    • Rated current (A)
    • 20
    • Rated voltage (II/2)(V)
    • 320
    • Rated voltage (III/2) (V)
    • 320
    • Rated voltage (III/3)(V)
    • 200
    • Rated impulse voltage (II/2)(KV)
    • 4
    • Rated impulse voltage (III/2)(KV)
    • 4
    • Rated impulse voltage (III/3)(KV)
    • 4
  • Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 300
    • Rated current (UL/CUL Group B)(A)
    • 16
    • Rated voltage (UL/CUL Group D)(V)
    • 300
    • Rated current (UL/CUL Group D)(A)
    • 10
  • Environment & Safety
    • Finger protection (YES or NO)
    • YES
    • Operating temperature. max (°C)
    • 120
    • Operating temperature. min (°C)
    • -40
  • UL Recognized
    • Rated voltage (Group B)(V)
    • 300
    • Rated current (Group B)(A)
    • 16
    • Rated voltage (Group D)(V)
    • 300
    • Rated current (Group D)(A)
    • 10
  • CUL Recognized
    • Rated voltage (Group B)(V)
    • 300
    • Rated current (Group B)(A)
    • 16
    • Rated voltage (Group D)(V)
    • 300
    • Rated current (Group D)(A)
    • 10
  • VDE Approval
    • Rated voltage (V)
    • 320
    • Rated current (A)
    • 20

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
