0166-80XXC

Barrier Terminal BlocksSingle Row

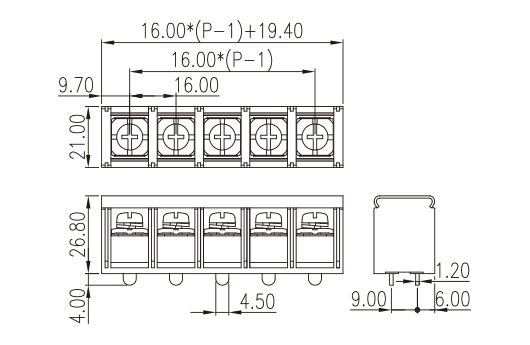

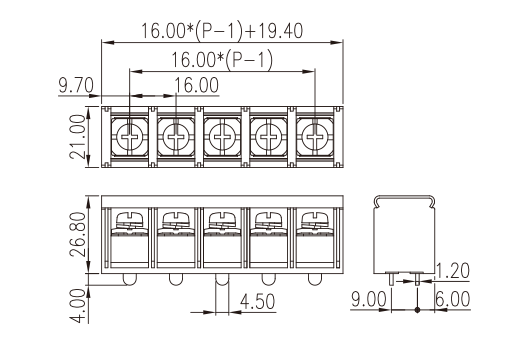

Pitch: 16.00mm , M5, 600V, 65/85/100A

AccessoriesPDF Download Inquiry Add

CAD data

  • General information
    • Short description
    • Barrier terminal blocks , Screw connection
    • Long description
    • Barrier terminal blocks , screw connection , Pitch : 16.00mm , M5 , 600V , 65/85/100A
    • Category
    • Single Row
    • Pitch (mm)
    • 16.00
    • Color
    • Black(default)
    • Connection method
    • Screw connection
    • Type of locking
    • Without
    • Pin demensions (Thickness x Width)(mm)
    • 1.2X4.5

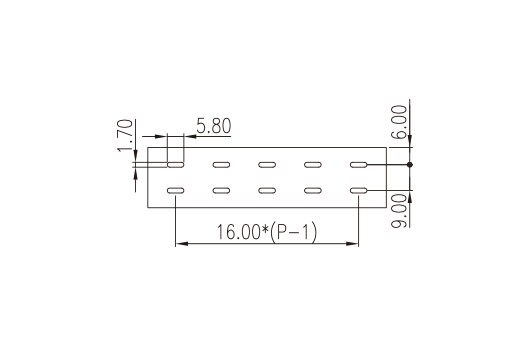

    • PCB hole diameter (mm)
    • 1.7x5.8
    • Level
    • Single Row
  • Material information
    • Insulation material
    • PBT
    • Insulation material group
    • IIIa
    • Flame retardant rating , compliant with UL94
    • V0
    • Conductor material
    • Copper Alloy
    • Plating of conductor surface
    • Tinned
  • Connection data-IEC
    • Rated current (A)
    • 57
    • Rated voltage (II/2)(V)
    • 1000
    • Rated voltage (III/2) (V)
    • 1000
    • Rated voltage (III/3)(V)
    • 630
    • Rated impulse voltage (II/2)(KV)
    • 10KV
    • Rated impulse voltage (III/2)(KV)
    • 10KV
    • Rated impulse voltage (III/3)(KV)
    • 10KV
    • Conductor cross section solid. min (mm²)
    • 1.5
    • Conductor cross section solid.max (mm²)
    • 10
    • Conductor cross section stranded. min (mm²)
    • 1.5
    • Conductor cross section stranded. max (mm²)
    • 10
    • 2 conductors with same cross section, solid, max (mm²)
    • 6
    • 2 conductors with same cross section, stranded, max (mm²)
    • 6
    • Screw thread
    • M5
    • Slotted screwdriver size (Blade thickness x Width)(mm)
    • 1.0X5.5
    • Philips screwdriver size
    • PH2
    • Rated torque (N.m)
    • 2.4
    • Recommend tightening torque. min (N.m)
    • 2
    • Recommend tightening torque. max (N.m)
    • 2.4
    • Stripping Length (mm)
    • 14~15
  • Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 600
    • Rated current (UL/CUL Group B)(A)
    • 65/85/100
    • Rated voltage (UL/CUL Group C)(V)
    • 600
    • Rated current (UL/CUL Group C)(A)
    • 65/85/100
    • Min. solid wire connection (AWG) acc. to UL/CUL
    • 14/4/-
    • Max. solid wire connection AWG acc. to UL/CUL
    • 6/4/-
    • Min. stranded wire connection AWG acc. to UL/CUL
    • 14/4/-
    • Max. stranded wire connection AWG acc. to UL/CUL
    • 6/4/-
  • Environment & Safety
    • Back of the hand protection (YES or NO)
    • YES
    • Operating temperature. max (°C)
    • 130
    • Operating temperature. min (°C)
    • -40
  • UL Recognized
    • Wire Range (Group B)(AWG)
    • 14~4
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 65/85/100
    • Wire Range (Group C)(AWG)
    • 14~4
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 65/85/100
  • CUL Recognized
    • Wire Range (Group B)(AWG)
    • 14~4
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 65/85/100
    • Wire Range (Group C)(AWG)
    • 14~4
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 65/85/100
  • VDE Approval
    • Wire Range (mm²)
    • 1.5~10
    • Rated current (A)
    • 57

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
