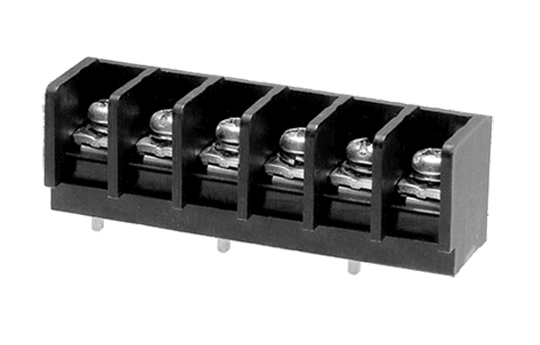

The photo demonstrate a 6 pole product
The photo demonstrate a 6 pole product
The photo demonstrate a 6 pole product
General information
Short description
Barrier terminal blocks, Screw connection
Long description

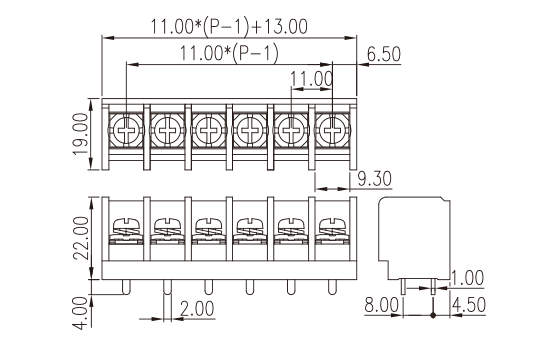

Barrier terminal blocks, screw connection, Pitch : 11.00mm, M4, 600V, 30A/50A
Connection method
Screw connection
Pin demensions (Thickness x Width)(mm)
1.0x2.0

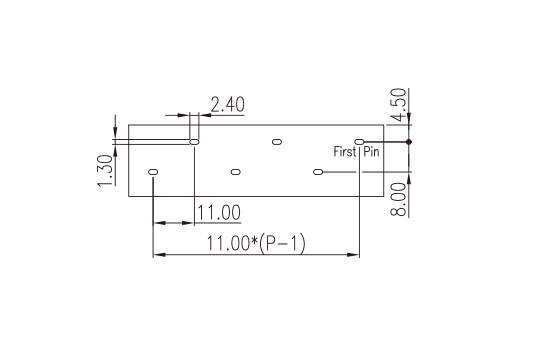

PCB hole diameter (mm)
1.3x2.4
Material information
Insulation material group
IIIa
Flame retardant rating , compliant with UL94
V0
Insulation resistance
≥1000MΩ at DC 500V
Conductor material
COPPER ALLOY
Plating of conductor surface
Tin PLATED
Connection data-IEC
Rated voltage (II/2)(V)
1000
Rated voltage (III/2) (V)
1000
Rated voltage (III/3)(V)
800
Rated impulse voltage (II/2)(KV)
8
Rated impulse voltage (III/2)(KV)
8
Rated impulse voltage (III/3)(KV)
8
Conductor cross section solid. min (mm²)
0.5
Conductor cross section solid.max (mm²)
6
Conductor cross section stranded. min (mm²)
0.5
Conductor cross section stranded. max (mm²)
6
2 conductors with same cross section, solid, min (mm²)
0.5
2 conductors with same cross section, solid, max (mm²)
4
2 conductors with same cross section, stranded, min (mm²)
0.5
2 conductors with same cross section, stranded, max (mm²)
4
Slotted screwdriver size (Blade thickness x Width)(mm)
1.0x5.5
Philips screwdriver size
PH2
Recommend tightening torque. min (N.m)
1.2
Recommend tightening torque. max (N.m)
1.8
Stripping Length (mm)
10~11
Connection data-UL
Rated voltage (UL/CUL Group B)(V)
600
Rated current (UL/CUL Group B)(A)
30/50 (With Ring or Fork terminals)
Rated voltage (UL/CUL Group C)(V)
600
Rated current (UL/CUL Group C)(A)
30/50 (With Ring or Fork terminals)
Min. solid wire connection (AWG) acc. to UL/CUL
22
Max. solid wire connection AWG acc. to UL/CUL
10/8
Min. stranded wire connection AWG acc. to UL/CUL
22
Max. stranded wire connection AWG acc. to UL/CUL
10/8
Environment & Safety
Back of the hand protection (YES or NO)
YES
Operating temperature. max (°C)
120
Operating temperature. min (°C)
-40
UL Recognized
Wire Range (Group B)(AWG)
22~10 / 8
Rated voltage (Group B)(V)
600
Rated current (Group B)(A)
30/50 (With Ring or Fork terminals)
Wire Range (Group C)(AWG)
22~10 / 8
Rated voltage (Group C)(V)
600
Rated current (Group C)(A)
30/50 (With Ring or Fork terminals)
CUL Recognized
Wire Range (Group B)(AWG)
22~10 / 8
Rated voltage (Group B)(V)
600
Rated current (Group B)(A)
30/50 (With Ring or Fork terminals)
Wire Range (Group C)(AWG)
22~10 / 8
Rated voltage (Group C)(V)
600
Rated current (Group C)(A)
30/50 (With Ring or Fork terminals)
DS-601
Insertion bridge
For pitch is 11.00mm of barrier terminal blocks. Material is brass. Rated current 40A.
Add
The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
