0168-62XX

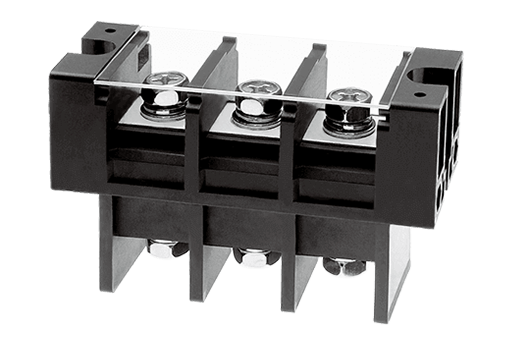

Barrier Terminal BlocksPanel Feed-Through

Pitch: 27mm, M8, 600V, 175A

AccessoriesPDF Download Inquiry Add

CAD data

  • General information
    • Short description
    • Barrier terminal blocks, Screw connection
    • Long description
    • Barrier terminal blocks, Screw connection, Pitch: 27mm, M8, 600V, 175A
    • Category
    • Panel Feed Through Terminal Blocks
    • Pitch (mm)
    • 27
    • Color
    • Black (default)
    • Connection method
    • Screw connection
    • Type of locking
    • With mounting flange
    • Level
    • Single level
  • Material information
    • Insulation material
    • PBT
    • Insulation material group
    • IIIa
    • Flame retardant rating , compliant with UL94
    • V0
    • Conductor material
    • COPPER ALLOY
    • Plating of conductor surface
    • Tinned
  • Connection data-IEC
    • Rated current (A)
    • 192
    • Rated voltage (II/2)(V)
    • 1000
    • Rated voltage (III/2) (V)
    • 1000
    • Rated voltage (III/3)(V)
    • 1000
    • Rated impulse voltage (II/2)(KV)
    • 8
    • Rated impulse voltage (III/2)(KV)
    • 8
    • Rated impulse voltage (III/3)(KV)
    • 8
    • Conductor cross section solid. min (mm²)
    • 6
    • Conductor cross section solid.max (mm²)
    • 70
    • Conductor cross section stranded. min (mm²)
    • 6
    • Conductor cross section stranded. max (mm²)
    • 70
    • 2 conductors with same cross section, solid, max (mm²)
    • 50
    • 2 conductors with same cross section, stranded, max (mm²)
    • 50
    • Screw thread
    • M8
    • Slotted screwdriver size (Blade thickness x Width)(mm)
    • 1.0x5.5
    • Philips screwdriver size
    • PH3
    • Rated torque (N.m)
    • 6
    • Recommend tightening torque. min (N.m)
    • 3.5
    • Recommend tightening torque. max (N.m)
    • 6
  • Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 600
    • Rated current (UL/CUL Group B)(A)
    • 175
    • Rated voltage (UL/CUL Group C)(V)
    • 600
    • Rated current (UL/CUL Group C)(A)
    • 175
    • Min. solid wire connection (AWG) acc. to UL/CUL
    • 10
    • Max. solid wire connection AWG acc. to UL/CUL
    • 2/0
    • Min. stranded wire connection AWG acc. to UL/CUL
    • 10
    • Max. stranded wire connection AWG acc. to UL/CUL
    • 2/0
  • Environment & Safety
    • Back of the hand protection (YES or NO)
    • YES
    • Operating temperature. max (°C)
    • 130
    • Operating temperature. min (°C)
    • -40
  • UL Recognized
    • Wire Range (Group B)(AWG)
    • 10~2/0
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 175
    • Wire Range (Group C)(AWG)
    • 10~2/0
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 175
  • CUL Recognized
    • Wire Range (Group B)(AWG)
    • 10~2/0
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 175
    • Wire Range (Group C)(AWG)
    • 10~2/0
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 175

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
