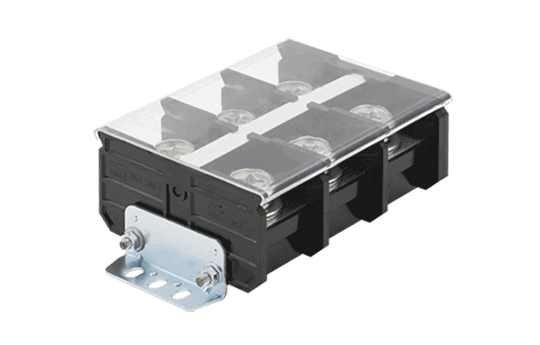

DKB200-XXPCK

NEMA Terminal BlocksPanel Mounting

Pitch : 33.00mm, M10, 600V, 230A

AccessoriesPDF Download Inquiry Add

CAD data

  • General information
    • Short description
    • Panel Mounting, Screw Connection
    • Long description
    • Panel Mounting, Screw Connection, Pitch:33.00mm, M10, 600V, 230A
    • Category
    • Panel Mounting
    • Pitch (mm)
    • 33.00
    • Color
    • Refer to drawing
    • Connection method
    • Screw connection
    • Type of locking
    • Panel Mounting
    • Length (mm)
    • 33*P+38
    • Width (mm)
    • 84.5
    • Height (mm)
    • Refer to drawing
    • Number of positions
    • 01P~12P
    • Level
    • Single level
    • Connection points
    • 2~24
  • Material information
    • Insulation material
    • PC
    • Insulation material group
    • IIIa
    • Flame retardant rating , compliant with UL94
    • V2
    • Insulation resistance
    • ≥1000MΩ at DC 500V
    • Conductor material
    • COPPER ALLOY
    • Plating of conductor surface
    • Ni PLATED
  • Connection data-IEC
    • Rated voltage (V)
    • 1000
    • Rated current (A)
    • 232
    • Rated voltage (III/3)(V)
    • 1000
    • Rated impulse voltage (III/3)(KV)
    • 8
    • Screw thread
    • M10
    • Philips screwdriver size
    • PH4
    • Rated torque (N.m)
    • 5
    • Recommend tightening torque. min (N.m)
    • 4
    • Recommend tightening torque. max (N.m)
    • 5
    • Stripping Length (mm)
    • The stripping length depends on the specification provided by the cable lug manufacturer
    • End cover plate required
    • YES
    • Grounding connections
    • NO
  • Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 600
    • Rated current (UL/CUL Group B)(A)
    • 230
    • Rated voltage (UL/CUL Group C)(V)
    • 600
    • Rated current (UL/CUL Group C)(A)
    • 230
    • Min. solid wire connection (AWG) acc. to UL/CUL
    • 8
    • Max. solid wire connection AWG acc. to UL/CUL
    • 4/0
    • Min. stranded wire connection AWG acc. to UL/CUL
    • 8
    • Max. stranded wire connection AWG acc. to UL/CUL
    • 4/0
  • Environment & Safety
    • Back of the hand protection (YES or NO)
    • YES
    • Finger protection (YES or NO)
    • NO
    • Operating temperature. max (°C)
    • 125
    • Operating temperature. min (°C)
    • -40
  • UL Recognized
    • Wire Range (Group B)(AWG)
    • 8~4/0
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 230
    • Wire Range (Group C)(AWG)
    • 8~4/0
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 230
  • CUL Recognized
    • Wire Range (Group B)(AWG)
    • 8~4/0
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 230
    • Wire Range (Group C)(AWG)
    • 8~4/0
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 230
  • VDE Approval
    • Wire Range (mm²)
    • 10~95
    • Rated voltage (V)
    • 1000
    • Rated current (A)
    • 232
  • DKBK200-10P

    Label

    For DKB200.
    White color.
    Using UL94-V2 class of insulation material.
  • Add
  • DKBC200-1000

    Cover

    For DKB200.
    Using UL94-V2 class of insulation material.
  • Add
  • TM-R200

    Continuous Flat Marking Labels

  • Add

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
