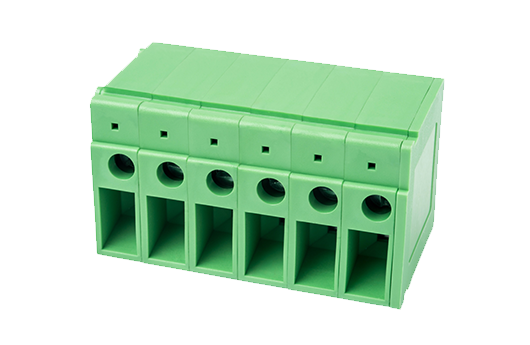

DT-2320-XXP

PCB Terminal BlocksPCB Terminal Blocks

Pitch : 7.62mm, 300V, 30A

AccessoriesPDF Download Inquiry Add

CAD data

  • General information
    • Short description
    • PCB Terminal Blocks, Front Screw Connection
    • Long description
    • PCB Terminal Blocks, Front Screw Connection, Wave soldering, Pitch:7.62mm, M3, 300V, 30A
    • Category
    • PCB Terminal Blocks
    • Pitch (mm)
    • 7.62
    • Color
    • Green (default)
    • Connection method
    • Front Screw Connection
    • Type of locking
    • Without
    • Length (mm)
    • 7.62*P+1.5
    • Width (mm)
    • 26
    • Height (mm)
    • 26
    • Pin demensions (Thickness x Width)(mm)
    • 0.8x1.0
    • PCB hole diameter (mm)
    • 1.4~1.5
    • Number of positions
    • 02P~16P
    • Level
    • Single level
  • Material information
    • Insulation material
    • PA
    • Insulation material group
    • I
    • Flame retardant rating , compliant with UL94
    • V0
    • Insulation resistance
    • ≥500MΩ at DC 500V
    • Conductor material
    • COPPER ALLOY
    • Plating of conductor surface
    • Tin PLATED
  • Connection data-IEC
    • Rated voltage (V)
    • 630
    • Rated current (A)
    • 24
    • Rated voltage (II/2)(V)
    • 1000
    • Rated voltage (III/2) (V)
    • 630
    • Rated voltage (III/3)(V)
    • 500
    • Rated impulse voltage (II/2)(KV)
    • 6
    • Rated impulse voltage (III/2)(KV)
    • 6
    • Rated impulse voltage (III/3)(KV)
    • 6
    • Conductor cross section solid. min (mm²)
    • 0.5
    • Conductor cross section solid.max (mm²)
    • 2.5
    • Conductor cross section stranded. min (mm²)
    • 0.5
    • Conductor cross section stranded. max (mm²)
    • 2.5
    • Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
    • 0.5
    • Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
    • 1.5
    • Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
    • 0.5
    • Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
    • 1.5
    • 2 conductors with same cross section, solid, min (mm²)
    • 0.5
    • 2 conductors with same cross section, solid, max (mm²)
    • 1
    • 2 conductors with same cross section, stranded, min (mm²)
    • 0.5
    • 2 conductors with same cross section, stranded, max (mm²)
    • 1
    • 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²)
    • 0.5
    • 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²)
    • 0.75
    • 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
    • 0.5
    • 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
    • 1
    • Screw thread
    • M3
    • Rated torque (N.m)
    • 0.6
    • Stripping Length (mm)
    • 13~14
  • Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 300
    • Rated current (UL/CUL Group B)(A)
    • 30
    • Rated voltage (UL/CUL Group D)(V)
    • 300
    • Rated current (UL/CUL Group D)(A)
    • 10
    • Min. solid wire connection (AWG) acc. to UL/CUL
    • 22
    • Max. solid wire connection AWG acc. to UL/CUL
    • 10
    • Min. stranded wire connection AWG acc. to UL/CUL
    • 22
    • Max. stranded wire connection AWG acc. to UL/CUL
    • 10
  • Environment & Safety
    • Finger protection (YES or NO)
    • YES
    • Operating temperature. max (°C)
    • 120
    • Operating temperature. min (°C)
    • -40
  • UL Recognized
    • Wire Range (Group B)(AWG)
    • 22~10
    • Rated voltage (Group B)(V)
    • 300
    • Rated current (Group B)(A)
    • 30
    • Wire Range (Group D)(AWG)
    • 22~10
    • Rated voltage (Group D)(V)
    • 300
    • Rated current (Group D)(A)
    • 10
  • CUL Recognized
    • Wire Range (Group B)(AWG)
    • 22~10
    • Rated voltage (Group B)(V)
    • 300
    • Rated current (Group B)(A)
    • 30
    • Wire Ranget (Group D)(AWG)
    • 22~10
    • Rated voltage (Group D)(V)
    • 300
    • Rated current (Group D)(A)
    • 10
  • VDE Approval
    • Wire Range (mm²)
    • 0.5~6
    • Rated voltage (V)
    • 630
    • Rated current (A)
    • 32

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
