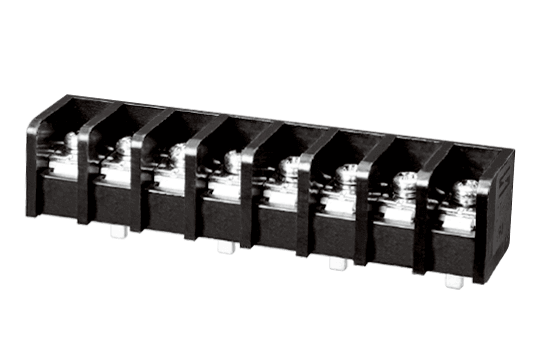

The photo demonstrate a 8 pole product
The photo demonstrate a 8 pole product
The photo demonstrate a 8 pole product
The photo demonstrate a 8 pole product
General information
Short description
Barrier terminal blocks , Screw connection
Long description

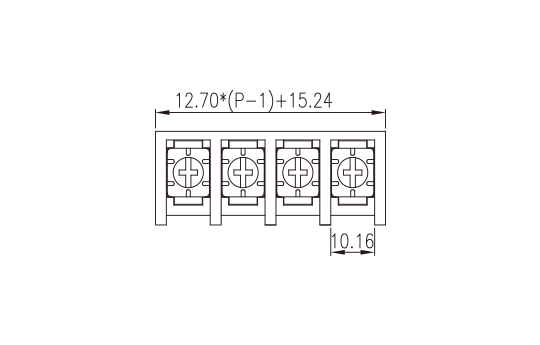

Barrier terminal blocks , screw connection , Pitch : 12.70mm , M4 , 600V , 45A(str),43A(sol)
Connection method
Screw connection

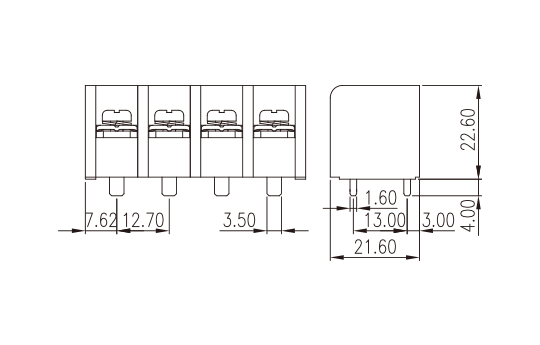

Pin demensions (Thickness x Width)(mm)
1.6X3.5

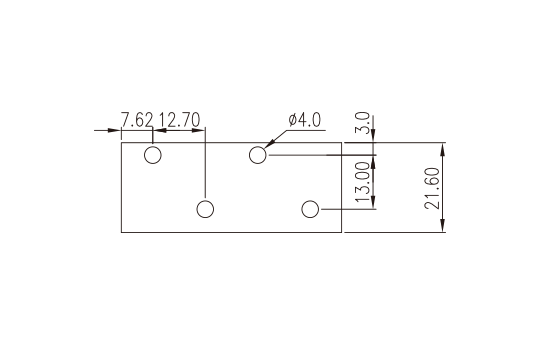

PCB hole diameter (mm)
4.0
Material information
Insulation material group
IIIa
Flame retardant rating , compliant with UL94
V0
Conductor material
Copper Alloy
Plating of conductor surface
Tin PLATED
Connection data-IEC
Rated voltage (II/2)(V)
1000
Rated voltage (III/2) (V)
1000
Rated voltage (III/3)(V)
500
Rated impulse voltage (II/2)(KV)
8
Rated impulse voltage (III/2)(KV)
8
Rated impulse voltage (III/3)(KV)
8
Conductor cross section solid. min (mm²)
0.75
Conductor cross section solid.max (mm²)
6
Conductor cross section stranded. min (mm²)
0.75
Conductor cross section stranded. max (mm²)
6
2 conductors with same cross section, solid, max (mm²)
4
2 conductors with same cross section, stranded, max (mm²)
4
Slotted screwdriver size (Blade thickness x Width)(mm)
1.0x5.5
Philips screwdriver size
PH2
Stripping Length (mm)
13~14
Connection data-UL
Rated voltage (UL/CUL Group B)(V)
600
Rated current (UL/CUL Group B)(A)
45(str),43(sol)
Rated voltage (UL/CUL Group C)(V)
600
Rated current (UL/CUL Group C)(A)
45(str),43(sol)
Min. solid wire connection (AWG) acc. to UL/CUL
18
Max. solid wire connection AWG acc. to UL/CUL
8
Min. stranded wire connection AWG acc. to UL/CUL
18
Max. stranded wire connection AWG acc. to UL/CUL
8
Environment & Safety
Back of the hand protection (YES or NO)
YES
Operating temperature. max (°C)
120
Operating temperature. min (°C)
-40
UL Recognized
Wire Range (Group B)(AWG)
18~8
Rated voltage (Group B)(V)
600
Rated current (Group B)(A)
45(str),43(sol)
Wire Range (Group C)(AWG)
18~8
Rated voltage (Group C)(V)
600
Rated current (Group C)(A)
45(str),43(sol)
CUL Recognized
Wire Range (Group B)(AWG)
18~8
Rated voltage (Group B)(V)
600
Rated current (Group B)(A)
45(str),43(sol)
Wire Range (Group C)(AWG)
18~8
Rated voltage (Group C)(V)
600
Rated current (Group C)(A)
45(str),43(sol)
VDE Approval
The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
