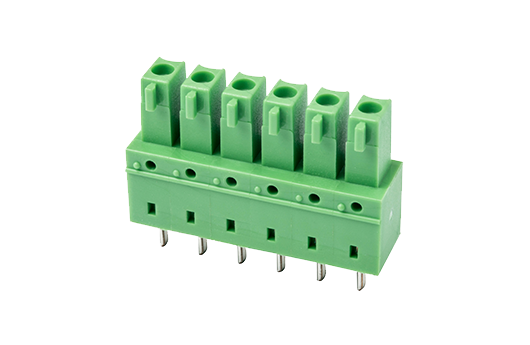

EC381CV-XXP

PCB Terminal BlocksPCB Connector-Plug

Pitch : 3.81 mm, 300V, 8A

AccessoriesPDF Download Inquiry Add

CAD data

  • General information
    • Short description
    • PCB Connector – Plug, Wave soldering
    • Long description
    • PCB Connector – Plug, Wave soldering, Pitch:3.81mm, 300V, 8A
    • Category
    • PCB Connector – Plug
    • Pitch (mm)
    • 3.81
    • Color
    • Green (default)
    • Type of locking
    • Without
    • Soldering method
    • Wave soldering
    • Length (mm)
    • 3.81*(P-1)+4.6
    • Width (mm)
    • 6.85
    • Height (mm)
    • 14.5
    • Pin demensions (Thickness x Width)(mm)
    • 0.6x1.1
    • PCB hole diameter (mm)
    • 1.2
    • Number of positions
    • 02P~16P
    • Level
    • Single level
  • Material information
    • Insulation material
    • PA
    • Insulation material group
    • I
    • Flame retardant rating , compliant with UL94
    • V0
    • Insulation resistance
    • ≥500MΩ at DC 500V
    • Conductor material
    • COPPER ALLOY
    • Plating of conductor surface
    • Tin PLATED
  • Connection data-IEC
    • Rated voltage (V)
    • 320
    • Rated current (A)
    • 12
    • Rated voltage (II/2)(V)
    • 320
    • Rated voltage (III/2) (V)
    • 320
    • Rated voltage (III/3)(V)
    • 250
    • Rated impulse voltage (II/2)(KV)
    • 2.5
    • Rated impulse voltage (III/2)(KV)
    • 2.5
    • Rated impulse voltage (III/3)(KV)
    • 2.5
  • Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 300
    • Rated current (UL/CUL Group B)(A)
    • 8
    • Rated voltage (UL/CUL Group D)(V)
    • 300
    • Rated current (UL/CUL Group D)(A)
    • 8
  • Environment & Safety
    • Finger protection (YES or NO)
    • YES
    • Operating temperature. max (°C)
    • 120
    • Operating temperature. min (°C)
    • -40
  • UL Recognized
    • Rated voltage (Group B)(V)
    • 300
    • Rated current (Group B)(A)
    • 8
  • CUL Recognized
    • Rated voltage (Group B)(V)
    • 300
    • Rated current (Group B)(A)
    • 8

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
