General information
Short description

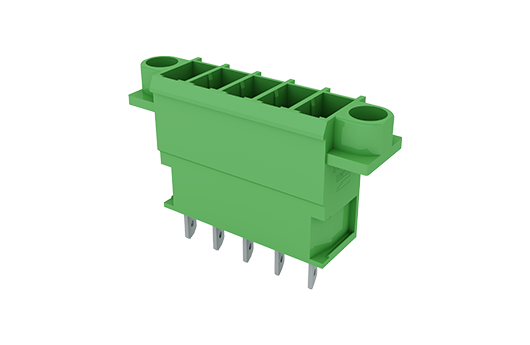

Connector – Socket, Slip-on connection
Long description
PCB Connector, Pitch : 7.62mm, 300V, 30A
Category
PCB Connector – Socket
Connection method
Slip-on connection
Type of locking
With mounting flange
Length (mm)
7.62*(P-1)+22.84
Pin demensions (Thickness x Width)(mm)
0.8x4.8
Number of positions
02P~12P
Material information
Insulation material group
IIIa
Flame retardant rating , compliant with UL94
V0
Insulation resistance
≥1000MΩ at DC 500V
Conductor material
COPPER ALLOY
Plating of conductor surface
Tin PLATED
Connection data-IEC
Rated voltage (II/2)(V)
800
Rated voltage (III/2) (V)
630
Rated voltage (III/3)(V)
400
Rated impulse voltage (II/2)(KV)
6
Rated impulse voltage (III/2)(KV)
6
Rated impulse voltage (III/3)(KV)
6
Connection data-UL
Rated voltage (UL/CUL Group B)(V)
300
Rated current (UL/CUL Group B)(A)
30
Rated voltage (UL/CUL Group C)(V)
300
Rated current (UL/CUL Group C)(A)
30
Rated voltage (UL/CUL Group D)(V)
600
Rated current (UL/CUL Group D)(A)
5
Environment & Safety
Finger protection (YES or NO)
YES
Operating temperature. max (°C)
120
Operating temperature. min (°C)
-40
UL Recognized
Rated voltage (Group B)(V)
300
Rated current (Group B)(A)
30
Rated voltage (Group C)(V)
300
Rated current (Group C)(A)
30
Rated voltage (Group D)(V)
600
Rated current (Group D)(A)
5
CUL Recognized
Rated voltage (Group B)(V)
300
Rated current (Group B)(A)
30
Rated voltage (Group C)(V)
300
Rated current (Group C)(A)
30
Rated voltage (Group D)(V)
600
Rated current (Group D)(A)
5
ECHK2
Keycode
For EC116 Series, EC762 Series, ECH116 Series, ECH762 Series. Orange color. Using UL94-V0 class of insulation material.
Add
The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
