General information
Short description

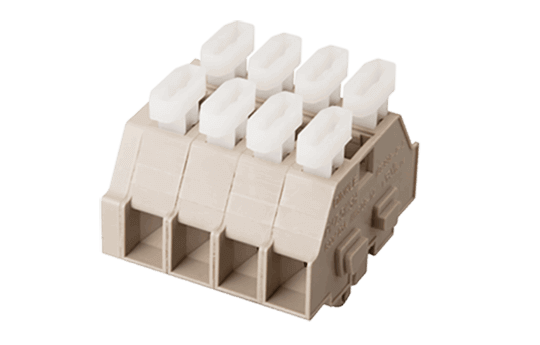

DIN Rail terminal blocks, Panel mounting terminal blocks
Long description
DIN Rail terminal blocks, Panel mounting terminal blocks, 600V, 25A
Category
Panel mounting terminal blocks
Connection method
Spring Clamp Connection
Type of locking
Panel Mounting
Number of positions
01P~16P
Material information
Insulation material group
I
Flame retardant rating , compliant with UL94
V0
Connection data-IEC
Rated voltage (III/3)(V)
630
Rated impulse voltage (II/2)(KV)
8
Rated impulse voltage (III/2)(KV)
8
Rated impulse voltage (III/3)(KV)
8
Conductor cross section solid. min (mm²)
0.5
Conductor cross section solid.max (mm²)
2.5
Conductor cross section stranded. min (mm²)
0.5
Conductor cross section stranded. max (mm²)
2.5
Slotted screwdriver size (Blade thickness x Width)(mm)
0.4x2.5
Stripping Length (mm)
7~8
End cover plate required
YES
Connection data-UL
Rated voltage (UL/CUL Group B)(V)
600
Rated current (UL/CUL Group B)(A)
25
Min. solid wire connection (AWG) acc. to UL/CUL
28
Max. solid wire connection AWG acc. to UL/CUL
12
Min. stranded wire connection AWG acc. to UL/CUL
14
Max. stranded wire connection AWG acc. to UL/CUL
12
Environment & Safety
Back of the hand protection (YES or NO)
YES
Finger protection (YES or NO)
YES
Operating temperature. max (°C)
120
Operating temperature. min (°C)
-40
DS-204
Insertion Bridge
For PM2.5WS-XXP, PM2.5WSA-XXP, PMM2.5WS-XXP, PMM2.5WSA-XXP. Beige color. Using UL94-V0 class of insulation material.
Add
The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
