- 일반정보
- 일반정보
- Sensor Terminal Block, Screw Connection
- 구체적 설명

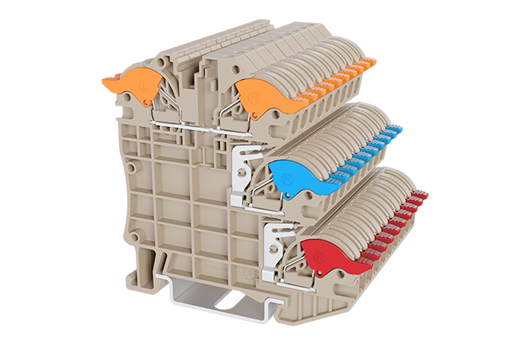

- Sensor Terminal Block, Screw Connection, Width:5.10mm, 300V, 14A
- 카테고리
- Sensor Terminal Block
- 색상
- Refer to drawing
- 커넥션방식
- Push-in Design
- 길이 (mm)
- 68
- 너비 (mm)
- 5.1
- 높이 (mm)
- 63.5（TS-35N）/ 71（TS-35/15N）
- 단수
- Three level
- 커넥션 개수
- 4
- 원자재 정보
- 커넥션정보-IEC
- 커넥션 데이타-UL
- 사용환경&안전
-
TM42LW
Marking Label For
BEST APPLICATION：
DP2.5N Series, DP2.5N-3L-SPE, DPH2.5 Series, AK2.5 Series, DKES1.5N2, DKES1.5N3, DPP2.5N Series, DP2.5N-3L, DP2.5N-3L-PV, DP2.5N-3L-L3PE, DP2.5N-3L-PE, DPH1.5SGU, DK2.5S, DK1.5SG Series, PM2.5N-XXP, PM2.5WN-XXP, PMM2.5WN-XXP, AKK2.5, AKK2.5-PV, AKK2.5-PE, AKK2.5-D Series, DK2.5L-3L, DK2.5P
AVAILABLE APPLICATION：
DPES2.5, DPES2.5-PE, DP2.5PG, DP2.5SG Series, DPPES2.5, DPPES2.5-PE
White color.
Using UL94-V0 class of insulation material. - 추가
-
MKG-003
Label For SS2N, SS6N, SS7N, DP Series, AK Series.
Using UL94-V0 class of insulation material. - 추가
-
TM-R102
Continuous Flat Marking Labels - 추가
-
DPH1.5SGC
End Cover For DPH1.5SG
Beige color.
Using UL94-V0 class of insulation material. - 추가
-
SS7N
End Bracket For TS-35, TS-35/15 rails.
Beige color.
Using UL94-V0 class of insulation material. - 추가
-
DSD03-M1XXX
Plug-in bridge For DPD6-P001, DPD6-P002
Red color.
Using UL94-V0 class of insulation material. - 추가
The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
