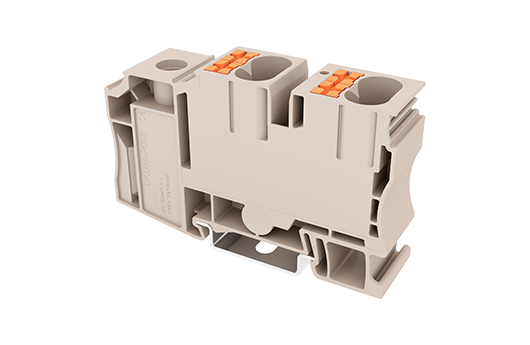

DKD35-P003

DIN 레일 단자대푸시인 단자대

600V, 96A, Beige (default)

액세서리PDF 다운로드 문의 추가

CAD data

  • 일반정보
    • 일반정보
    • Potential collective Terminal Block, Screw Connection / Push-in Design
    • 구체적 설명
    • Potential collective Terminal Block, Screw Connection / Push-in Design, Width: 19.4mm, M6, 600V, 102A
    • 카테고리
    • Potential collective Terminal Block
    • 핀간격 (mm)
    • 19.4
    • 색상
    • Beige (default)
    • 커넥션방식
    • Screw Connection / Push-in Design
    • 길이 (mm)
    • 80
    • 너비 (mm)
    • 19.4
    • 높이 (mm)
    • 49
    • 단수
    • Single level
    • 커넥션 개수
    • 5
  • 원자재 정보
    • 절연자재
    • PA
    • 절연자재 그룹
    • I
    • UL 94에 따른 난연등급
    • V0
    • 절연저항
    • ≥500MΩ at DC 500V
  • 커넥션정보-IEC
    • 마운팅 레일
    • TS-35
  • UL인증
    • 정격전선(Group B)(AWG)
    • Line Side：12~1/0 / Load Side：20~6
    • 정격전압 (Group B)(V)
    • 600
    • 정격전류 (Group B)(A)
    • Line Side：96 / Load Side：55
    • 정격전선(Group C)(AWG)
    • Line Side：12~1/0 / Load Side：20~6
    • 정격전압(Group C)(V)
    • 600
    • 정격전류 (Group C)(A)
    • Line Side：96 / Load Side：55
    • 정격전선(Group D)(AWG)
    • Line Side：12~1/0 / Load Side：20~6
    • 정격전압 (Group D)(V)
    • 600
    • 정격전류(Group D)(A)
    • Line Side：96 / Load Side：55
  • CUL인증
    • 정격전선 (Group B)(AWG)
    • Line Side：12~1/0 / Load Side：20~6
    • 정격전압 (Group B)(V)
    • 600
    • 정격전류 (Group B)(A)
    • Line Side：96 / Load Side：55
    • 정격전선 (Group C)(AWG)
    • Line Side：12~1/0 / Load Side：20~6
    • 정격전압(Group C)(V)
    • 600
    • 정격전류 (Group C)(A)
    • Line Side：96 / Load Side：55
    • 정격전선(Group D)(AWG)
    • Line Side：12~1/0 / Load Side：20~6
    • 정격전압 (Group D)(V)
    • 600
    • 정격전류(Group D)(A)
    • Line Side：96 / Load Side：55

  • TM45LW

    Marking Label

    For
    BEST APPLICATION：
    DP10, DP10-PE, DP10-TN, DP10-TN-PE, DKD10-P001, DPHD10-P001, DPH10 Series, AK10, AK10-PE, AK10-TN, AK10-TN-PE

    AVAILABLE APPLICATION：
    DP16, DP16-PE, DP16-TN, DP16-TN-PE, DPH16 Series, AK16, AK16-PE, AK16-TN, AK35, DPD10-P001, DPD16-P001, DKD35-P001, DKD35-P002, DK10-TF, DK10-TFA

    White color.
    Using UL94-V0 class of insulation material.
  • 추가
    •

  • SS11

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • 추가
    •

  • TS-35

    DIN-Rail

    For DP / DK..N / DK.. / AK / DKB / DKU.. /DKM.. series.
    Material is iron.
    Length of 1000mm / 2000mm.
  • 추가
    •

  • TS-35/15

    DIN-Rail

    For DK / DK-PE series.
    Material is iron.
    Length of 1000mm / 2000mm.
  • 추가
    •

  • TS-35C

    DIN rail end cap

    For TS-35 rail.
    Black color.
    Using UL94-V2 class of insulation material.
  • 추가
    •

  • TM-R100

    Continuous Flat Marking Labels

  • 추가
    •

  • SS7N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • 추가
    •

  • SS4N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • 추가
    •

  • SS13

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • 추가
    •

  • SS6N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • 추가
    •

  • SS5N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • 추가
    •

  • SS2N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • 추가
    •

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
