PCB Terminal Blocks
Accessories
Accessories are often used in PCB terminal blocks to improve connection verification and error-proofing. Accessories include key codes, levers and insertion bridges.
-
Description
Add
-

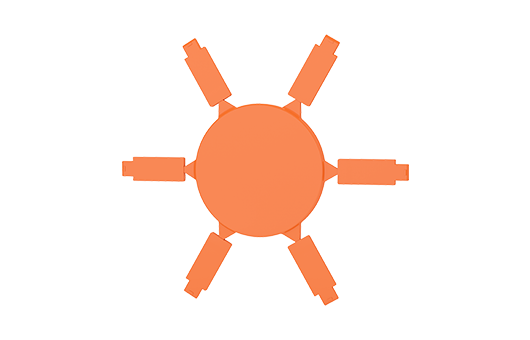

ECHK1 Keycode
Orange color.
For ECH350 Series, ECH381 Series, ECHP381 Series,
ECHB350 Series, ECHB381 Series, ECH508 Series, EECH350 Series, EECH381 Series, 0221-25XX, 0221-33XX, 0221-39XX, 0221-41XX, 0221-51XX, 0221-52XX.
Using UL94-V0 class of insulating material. -
ECHK1L Keycode
Orange color.
For ECH350 Series, ECH381 Series,
0221-25XX, 0221-33XX, 0221-39XX, 0221-41XX, 0221-51XX, 0221-52XX.
Using High-temperature plastics class of insulation material. -
TS-35 For DP / DK..N / DK.. / AK / DKB / DKU.. /DKM.. series.
Material is iron.
Length of 1000mm / 2000mm. -
EHDK1 For EHD series.
Orange color.
Using UL94-V0 class of insulation material. -
EHDK1L For EHD series.
Orange color.
Using High-temperature plastics class of insulation material. -
ECHK2 For EC116 Series, EC762 Series, ECH116 Series, ECH762 Series.
Orange color.
Using UL94-V0 class of insulation material. -
ECHK3 For EC880 series.
Orange color.
Using UL94-V0 class of insulation material. -
ECHK4 For ECH880 series.
Orange color.
Using UL94-V0 class of insulation material. -
ESDK1 Keycode
Inserted into the slot of plug which pitch can be 5.00mm, 5.08mm, 7.50mm and 7.62mm to prevent mis-insertion.
Orange color.
Using UL94-V0 class of insulating material. -
ESDK2 Keycode
Inserted into the slot of plug which pitch can be 5.00mm, 5.08mm, 7.50mm and 7.62mm to prevent mis-insertion.
Red color.
Using UL94-V0 class of insulating material. -
CSC-01XX For EC350 series.
Grey color.
Using UL94-V0 class of insulation material. -
SDH-002
-
SDH-003
-
TKE-R-XX Rail
-
ECHG1
-
SDH-005
-
0159K1L Keycode
For 0159 Series
Using High-temperature plastics class of insulation material. -
0225K1 Keycode
Orange color.
For 0225-01XX, 0225-02XX, 0225-03XX, 0225-06XX, 0225-07XX, 0225-08XX, 0226 Series Connector-Plug.
Using UL94-V0 class of insulating material. -
0225K3 Keycode
Orange color.
For 0225-01XX, 0225-02XX, 0225-03XX, 0225-06XX, 0225-07XX, 0225-08XX, 0226 Series Connector-Plug.
Using UL94-V0 class of insulating material. -
0225K2L Keycode
Orange color.
For 0225-11XX, 0225-12XX, 0225-16XX, 0225-16XXL, 0225-17XX, 0225-17XXL, 0225-21XX,0255-22XX, 0225-26XX, 0225-26XXL, 0225-27XX, 0225-27XXL, 0225-36XX, 0225-36XXL, 0225-37XX, 0225-37XXL, 0225-31XX, 0225-32XX, 0225-13XX, 0225-13XXL, 0225-14XX, 0225-14XXL, 0225-23XX, 0225-23XXL, 0225-24XX, 0225-24XXL, 0225-33XX, 0225-33XXL, 0225-34XX, 0225-34XXL, 0226 Series Connector-Socket.
Using UL94-V0 class of insulating material. -
0225K4L Keycode
Orange color.
For 0225-11XX, 0225-12XX, 0225-16XX, 0225-16XXL, 0225-17XX, 0225-17XXL, 0225-21XX,0255-22XX, 0225-26XX, 0225-26XXL, 0225-27XX, 0225-27XXL, 0225-36XX, 0225-36XXL, 0225-37XX, 0225-37XXL, 0225-31XX, 0225-32XX, 0225-13XX, 0225-13XXL, 0225-14XX, 0225-14XXL, 0225-23XX, 0225-23XXL, 0225-24XX, 0225-24XXL, 0225-33XX, 0225-33XXL, 0225-34XX, 0225-34XXL, 0226 Series Connector-Socket.
Using UL94-V0 class of insulating material. -
0227K1 Keycode
Orange color.
For 0227-01XX, 0227-02XX, 0227-03XX, 0227-04XX, 0227-06XX, 0227-07XX, 0227-08XX, 0227-09XX.
Using UL94-V0 class of insulating material. -
0227K2L Keycode
Orange color.
For 0226-13XX, 0226-13XXL, 0226-14XX, 0226-14XXL, 0226-23XX, 0226-23XXL, 0226-24XX, 0226-24XXL, 0226-33XX, 0226-33XXL, 0226-34XX, 0226-34XXL, 0227-13XX, 0227-13XXL, 0227-14XX, 0227-14XXL, 0227-16XX, 0227-16XXL, 0227-17XX, 0227-17XXL, 0227-23XX, 0227-23XXL, 0227-24XX, 0227-24XXL, 0227-26XX, 0227-26XXL, 0227-27XX, 0227-27XXL, 0227-33XX, 0227-33XXL, 0227-34XX, 0227-34XXL, 0227-36XX, 0227-36XXL, 0227-37XX, 0227-37XXL.
Using UL94-V0 class of insulating material.
