DIN Rail Terminal Blocks

Accessories

Accessories include labels, jumpers, end brackets, marking blocks, which allows clear identification on the application of DIN rail terminal blocks.

Terminal Blocks Accessories List


Description

Add

TS-35C DIN rail end cap Add

TS-35C For TS-35 rail.
Black color.
Using UL94-V2 class of insulation material.

DSD03-1.5/2.5 Plug-in bridge Add

DSD03-1.5/2.5 For DP1.5 / DP2.5 / DP1.5-TN / DP2.5-TN / DP1.5-TR / DP2.5-TR
Red color.
Using UL94-V0 class of insulation material.

AK6C End Cover Add

AK6C For AK6
Grey color.
Using UL94-V0 class of insulation material.

AKSPS-003 Partition Add

AKSPS-003 For AK1.5-TN / AK2.5-TR / AK4-TN / AK2.5-TP / AK2.5-TG / AK4-TG / AK2.5-CP / AK4-CP / AK4-TF(5X20)
Gray color.
Using UL94-V0 class of insulation material.

DSD03-1.5 Plug-in bridge Add

DSD03-1.5 For DP1.5/DP1.5-TR/DP1.5-TN
Red color.
Using UL94-V0 class of insulation material.

DSD03-1.5/4 Plug-in bridge Add

DSD03-1.5/4 For DP1.5 / DP4 / DP1.5-TN / DP4-TN / DP1.5-TR / DP4-TR
Red color.
Using UL94-V0 class of insulation material.

DP6C End Cover Add

DP6C For DP6
Grey color.
Using UL94-V0 class of insulation material.

AK6C-TN End Cover Add

AK6C-TN For AK6-TN
Grey color.
Using UL94-V0 class of insulation material.

TS-35N DIN-Rail Add

TS-35N For DP / DP-PE / DK / DK-PE / AK / AK-PE / AK..P series.
Material is iron.
Length of 1000mm / 2000mm.

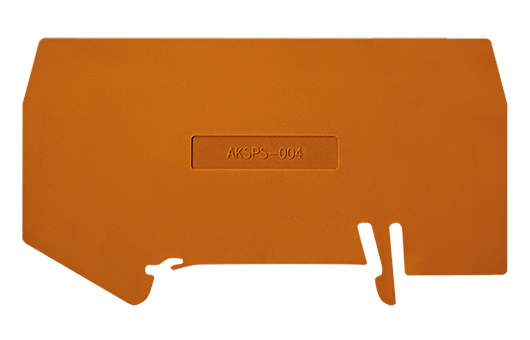

AKSPS-004 Partition Plate Add

AKSPS-004 For AK1.5-TR/AK2.5-TR/AK2.5-TP/AK2.5-TN-TP/AK2.5-TN-TG.
Grey color.
Using UL94-V0 class of insulation material.

DP1.5C-TR End Cover Add

DP1.5C-TR For DP1.5-TR
Grey color.
Using UL94-V0 class of insulation material.

AK6C-YG End Cover Add

AK6C-YG For AK6-PE
Green-Yellow (default)
Using UL94-V0 class of insulation material.

DK10NC End cover Add

DK10NC For DK10N
Grey color.
Using UL94-V0 class of insulation material.

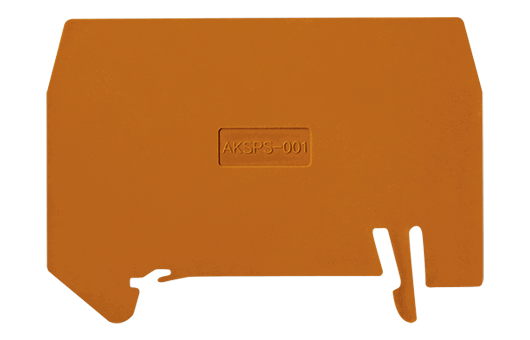

AKSPS-001 Partition Plate Add

AKSPS-001 For AK1.5 / AK2.5 / AK4 / DP1.5 / DP2.5 / DP4
Gray color.
Using UL94-V0 class of insulation material.

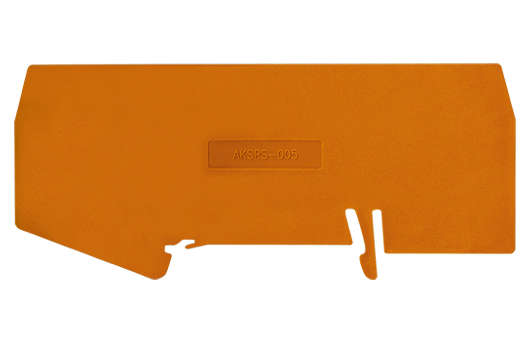

AKSPS-005 Partition Plate Add

AKSPS-005 For DP4-TR, DP4-TR-PE.
Grey color.
Using UL94-V0 class of insulation material.

DP6C-TR End Cover Add

DP6C-TR For DP6-TR
Grey color.
Using UL94-V0 class of insulation material.

AK6C-TR End Cover Add

AK6C-TR For AK6-TR
Grey color.
Using UL94-V0 class of insulation material.

AKSPS-002 Partition Plate Add

AKSPS-002 For AK6 / DP6
Gray color.
Using UL94-V0 class of insulation material.

DSS4N-XXP Plug-in bridge Add

DSS4N-XXP For DK4N / DK4N-TN / DK4N-TR / DK4D / DKK4N.
Red color.
Using UL94-V0 class of insulation material.

TS-35 DIN-Rail Add

TS-35 For DP / DP-PE / DK / DK-PE / AK / AK-PE / AK..P series.
Material is iron.
Length of 1000mm / 2000mm.

DP6C-TR-YG End Cover Add

DP6C-TR-YG For DP6-TR-PE
YELLOW-GREEN color.
Using UL94-V0 class of insulation material.

DSS10N-XXP Plug-in bridge Add

DSS10N-XXP For DK10N / DK10D.
Red color.
Using UL94V0 class insulation material.

DSS16N-02PN Plug-in bridge Add

DSS16N-02PN For DK16N.
Red color.
Using UL94-V0 class of insulation material.

DSS35N-02PN Plug-in bridge Add

DSS35N-02PN For DK35N.
Red color.
Using UL94-V0 class of insulation material.

DP6C-YG End Cover Add

DP6C-YG For DP6-PE
YELLOW-GREEN color.
Using UL94-V0 class of insulation material.

DK10NC-PE End Cover Add

DK10NC-PE For DK10N-PE
Green-Yellow (default)
Using UL94-V0 class of insulation material.

DP6C-TN-YG End Cover Add

DP6C-TN-YG For DP6-TN-PE
Grey color.
Using UL94-V0 class of insulation material.

TS-15 DIN-Rail Add

TS-15 For DK..S series.
Material is iron.
Length of 1000mm / 2000mm.

SS3 End Bracket Add

SS3 For TS-35, TS-35/15 rails.
Material is steel then galvanized on the surface.

SS8 End Bracket Add

SS8 For TS-15 rail.
Gray color.
Using UL94-V0 class of insulation material.

SS11 End Bracket Add

SS11 For TS-35, TS-35/15 rails.
Grey color.
Using UL94-V0 class of insulation material.

MKH-001 Label Add

MKH-001 For SS2 / SS4 / SS5 / SS7 / SS8.
Using UL94-V2 class of insulation material.

MKH-002 Label Add

MKH-002 For SS6 of terminal holder.
Using UL94-V2 class of insulation material.

MKL For SS4 / SS5.
Using UL94-V2 class of insulation material.

DKSPS-001 Partition Plate Add

DKSPS-001 For DK2.5 / DK4 / DK6 / DK10
Orange color.
Using UL94-V0 class of insulation material.

DKSPS-002 Partition Plate Add

DKSPS-002 For DK2.5 / DK4 / DK6 / DK10 / DK2.5-TG
Grey color.
Using UL94-V0 class of insulation material.

DKSPS-006 Partition Plate Add

DKSPS-006 For DKTL6 / DKTD6.
Gray color.
Using UL94-V0 class of insulation material.

DKTLP Partition Plate Add

DKTLP For DKTL6 / DKTD6.
Orange color.
Using UL94-V0 class of insulation material.

DKNSPS-001 Partition Plate Add

DKNSPS-001 For DK2.5N / DK4N.
Grey color.
Using UL94-V0 class of insulation material.

DKNSPS-002 Partition Plate Add

DKNSPS-002 For DK6N / DK10N.
Grey color.
Using UL94-V0 class of insulation material.

DKNSPS-004 Partition Plate Add

DKNSPS-004 For DK35N / DK35H.
Grey color.
Using UL94-V0 class of insulation material.

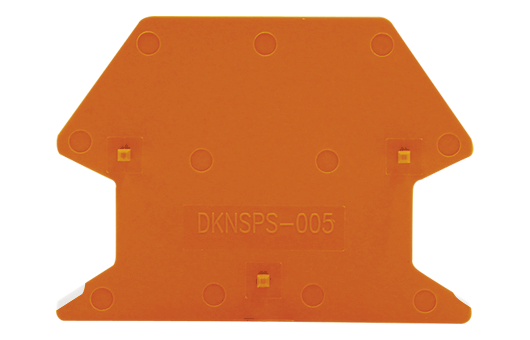

DKNSPS-005 Partition Plate Add

DKNSPS-005 For DK2.5N / DK4N
Grey color.
Using UL94-V0 class of insulation material.

DKNSPS-006 Partition Plate Add

DKNSPS-006 For DKTD6N.
Gray color.
Using UL94-V0 class of insulation material.

DKNSPS-007 Partition Plate Add

DKNSPS-007 For DKTD6N.
Gray color.
Using UL94-V0 class of insulation material.

DKMC5 Cover Add

DKMC5 For DKM5.
Gray color.
Using UL94-V0 class of insulation material.

DKMC6 Cover Add

DKMC6 For DKM6 / DKM6-2.
Gray color.
Using UL94-V0 class of insulation material.

DKMC8 Cover Add

DKMC8 For DKM8 / DKM8-2.
Gray color.
Using UL94-V0 class of insulation material.

DKMC10/12 Cover Add

DKMC10/12 For DKM10 / DKM12 / DKM10-2.
Gray color.
Using UL94-V0 class of insulation material.

DKMSPS-001 Cover Add

DKMSPS-001 For DKM5 / DKM6.
Gray color.
Using UL94-V0 class of insulation material.

DKMSPS-002 Cover Add

DKMSPS-002 For DKM8 / DKM10 / DKM12 / DKM6-2 / DKM8-2 / DKM10-2.
Gray color.
Using UL94-V0 class of insulation material.

DSD01-1.5XXN Plug-in bridge Add

DSD01-1.5XXN For AK1.5 / AK1.5-TN / AK1.5-TR / AKK1.5
Red color.
Using UL94-V0 class of insulation material.

DSD01-2.5XXN Plug-in bridge Add

DSD01-2.5XXN For DP2.5/AK2.5/AK2.5-TN/AK2.5-TR/AKK2.5/AK2.5-TP/AK2.5-TN-TP/AK2.5-TR-TP/AK2.5-TG/AK2.5-TN-TG/AK2.5-TR-TG/AK2.5-CP/AK2.5-TN-CP/AK2.5-TR-CP/AKK2.5-D01/AKK2.5-D02/AKK2.5-D03/AKK2.5-D04
Red color.
Using UL94-V0 class of insulation material.

DSD01-4XXN Plug-in bridge Add

DSD01-4XXN For DP4 / AK4 / AK4-TN / AK4-TR / AKK4 / AK4-TG / AK4-TP / AK4-CP / AK4-TF(5X20)
Red color.
Using UL94-V0 class of insulation material.

DSD01-6XXN Plug-in bridge Add

DSD01-6XXN For DP6 / AK46 / AK6-TN / AK6-TR
Red color.
Using UL94-V0 class of insulation material.

DSD01-10XXN Plug-in bridge Add

DSD01-10XXN For DP10、DP10-PE、DP10-TN、DP10-TN-PE、AK10、AK10-TN.
Red color.
Using UL94-V0 class of insulation material.

DSD01-16XXN Plug-in bridge Add

DSD01-16XXN For AK16 / AK16-TN.
Red color.
Using UL94-V0 class of insulation material.

DSD01-3502N Plug-in bridge Add

DSD01-3502N For AK35
Red color.
Using UL94-V0 class of insulation material.

DSS2.5N-XXP Plug-in bridge Add

DSS2.5N-XXP For DK2.5N/DK2.5D/DK2.5N-TN/DK2.5N-TR/DKK2.5N
Red color.
Using UL94-V0 class of insulation material.

DSS6N-XXP Plug-in bridge Add

DSS6N-XXP For DK6N / DK6D.
Red color.
Using UL94-V0 class of insulation material.

DSD03-2.5/4 Plug-in bridge Add

DSD03-2.5/4 For DP2.5 / DP4 / DP2.5-TN / DP4-TN / DP2.5-TR / DP4-TR
Red color.
Using UL94-V0 class of insulation material.

DSD02-2.5XX-B Screw-on bridge Add

DSD02-2.5XX-B For DK2.5 / DK1.5-TR.
Black color.
Using UL94-V0 class of insulation material.

DSD02-6XX-B Screw-on bridge Add

DSD02-6XX-B For DK6.
Black color.
Using UL94-V0 class of insulation material.

DSD02-10XX-B Screw-on bridge Add

DSD02-10XX-B For DK10.
Black color.
Using UL94-V0 class of insulation material.

DS4-XXP Screw-on bridge Add

DS4-XXP For DK4 / DKK4 / DK4-TR.
Grey color.
Using UL94-V0 class of insulation material.

DS6-XXP Screw-on bridge Add

DS6-XXP For DK6.
Grey color.
Using UL94-V0 class of insulation material.

DS10-XXP Screw-on bridge Add

DS10-XXP For DK10 / DK 10-TF / DK10-TFA.
Grey color.
Using UL94-V0 class of insulation material.

DK6NC End cover Add

DK6NC For DK6N
Grey color.
Using UL94-V0 class of insulation material.

DS16-XXP Screw-on bridge Add

DS16-XXP For DK16H.
Grey color.
Using UL94-V0 class of insulation material.

CSC-4XXP Insertion Bridge Add

CSC-4XXP For DK4 / DKK4 / DK4TR / DK4-TR-TG.
Grey color.
Using UL94-V0 class of insulation material.

CSC-4XXPS Insertion Bridge Add

CSC-4XXPS For DK4P / DK4S / PM4N-XXP.
Grey color.
Using UL94-V0 class of insulation material.

CSC-6XXP Insertion Bridge Add

CSC-6XXP For DK6.
Grey color.
Using UL94-V0 class of insulation material.

CSC-10XXP Insertion Bridge Add

CSC-10XXP For DK10.
Grey color.
Using UL94-V0 class of insulation material.

DK4PC End Cover Add

DK4PC For DK4S.
Grey color.
Using UL94-V0 class of insulation material.

DS35-XXP Screw-on bridge Add

DS35-XXP For DK35H.
Grey color.
Using UL94-V0 class of insulation material.

DKES1.5CA End Cover Add

DKES1.5CA For DKES1.5-XXP
Grey color.
Using UL94-V0 class of insulation material.

DSD02-2.5XX-A Screw-on bridge Add

DSD02-2.5XX-A For DK2.5 / DK1.5-TR.
Black color.
Using UL94-V0 class of insulation material.

DSD02-4XX-A Screw-on bridge Add

DSD02-4XX-A For DK4.
Black color.
Using UL94-V0 class of insulation material.

DK6PC End Cover Add

DK6PC For DK6S.
Grey color.
Using UL94-V0 class of insulation material.

CSC-6XXPS Insertion Bridge Add

CSC-6XXPS For DK6P / DK6S / PM6N-XXP.
Grey color.
Using UL94-V0 class of insulation material.

DKES1.5CB End Cover Add

DKES1.5CB For DKES1.5
Grey color.
Using UL94-V0 class of insulation material.

CSC-16XXP Insertion Bridge Add

CSC-16XXP For DK16H / DK16N.
Grey color.
Using UL94-V0 class of insulation material.

DK4NC End cover Add

DK4NC For DK2.5N / DK4N / DK2.5N-TP / DK2.5N-TG / DK2.5N-CP / DK4N-TP / DK4N-TG / DK4N-CP
Grey color.
Using UL94-V0 class of insulation material.

DK4C-TF(5X20) End Cover Add

DK4C-TF(5X20) For DK4-TF(5X20) / DK4-TFL(5X20)
Grey color.
Using UL94-V0 class of insulation material.

CSC-2.5XXPS Insertion Bridge Add

CSC-2.5XXPS For DK2.5P / DK2.5S / PM2.5N-XXP.
Gray color.
Using UL94-V0 class of insulation material.

DSD02-6XX-A Screw-on bridge Add

DSD02-6XX-A For DK6.
Black color.
Using UL94-V0 class of insulation material.

CSC-2.5XXP Insertion Bridge Add

CSC-2.5XXP For DK1.5TR/DK2.5/DK2.5 TG/DKK2.5/DKES1.5/PM2.5W
Grey color.
Using UL94-V0 class of insulation material.

CSC-35XXP Insertion Bridge Add

CSC-35XXP For DK35H / DK35N.
Gray color.
Using UL94-V0 class of insulation material.

CSC-50XXP Insertion Bridge Add

CSC-50XXP For DK50.
Grey color.
Using UL94-V0 class of insulation material.

DSD02-10XX-A Screw-on bridge Add

DSD02-10XX-A For DK10.
Black color.
Using UL94-V0 class of insulation material.

CSC-95XXP Insertion Bridge Add

CSC-95XXP For DK95.
Grey color.
Using UL94-V0 class of insulation material.

CSC-2.5XXPN Insertion Bridge Add

CSC-2.5XXPN For DK2.5N/DK2.5N-TN/DK2.5N-TR/DK2.5D/DKK2.5N.
Gray color.
Using UL94-V0 class of insulation material.

CSC-150XXP Insertion Bridge Add

CSC-150XXP For DK150.
Gray color.
Using UL94-V0 class of insulation material.

CSC-4XXPN Insertion Bridge Add

CSC-4XXPN For DK4N / DK4N-TN / DK4N-TR / DK4N-TP / DK4N-TG / DK4D / DKK4N.
Grey color.
Using UL94-V0 class of insulation material.

CSC-240XXP Insertion Bridge Add

CSC-240XXP For DK240.
Gray color.
Using UL94-V0 class of insulation material.

CSC-6XXPN Insertion Bridge Add

CSC-6XXPN For DK4-TF (5X20) / DK4-TFL .. (5X20).
Grey color.
Using UL94-V0 class of insulation material.

CSC-10XXPN Insertion Bridge Add

CSC-10XXPN For DK10N / DK10D.
Grey color.
Using UL94-V0 class of insulation material.

CSC-16XXPN Insertion Bridge Add

CSC-16XXPN For DK10-TF.
Gray color.
Using UL94-V0 class of insulation material.

DS6A02 Insertion Bridge Add

DS6A02 For DKTL6 / DKTD6.
Gray color.
Using UL94-V0 class of insulation material.

DS6A03 Insertion Bridge Add

DS6A03 For DKTL6 / DKTD6.
Gray color.
Using UL94-V0 class of insulation material.

DS-204 Insertion Bridge Add

DS-204 For PM2.5 WS / PMM2.5WS.
Gray color.
Using UL94-V0 class of insulation material.

DS6B01-XXP Insertion Bridge Add

DS6B01-XXP For DKTD6N.
Material is copper alloy then tin-plated on surface.

DS6B02-02P Insertion Bridge Add

DS6B02-02P For DKTD6N.
Material is copper alloy then tin-plated on surface

DKTD6N-KP Cover Add

DKTD6N-KP For DKTD6N.
White color.
Using UL94-V0 class of insulation material.

DS6S4 Cross connection screw with test socket Add

DS6S4 For DKTD6N.
Black color.
Using UL94-V0 class of insulation material.

C002-0101-RD Test plug Add

C002-0101-RD For DKTD6N.
Red color.

FUK6.3A-01 Fuse Add

FUK6.3A-01 For DK4N-TF(5X20), DK4-TFL(5X20), DKK4-TF(5X20), DKK10-TF(5X20), DP4-TFU(5X20), DP-FU(5X20)

DSH1 Busbar holder Add

DSH1 For DKZ4 / DKZ4E / DKZ4E-YG / DKZ16 / DKZ35 / DKZ35A / DKZ70A / DKZ70B / DKZ120.
Gray color.
Using UL94-V2 class of insulation material.

DSH2 Busbar holder Add

DSH2 For DKZ4 / DKZ4E / DKZ4E-YG / DKZ16 / DKZ35 / DKZ35A / DKZ70A / DKZ70B / DKZ120.
Gray color.
Using UL94-V2 class of insulation material.

DKZB0310-1000 Busbar Add

DKZB0310-1000 For DKZ4 / DKZ4E / DKZ4E-YG.
White color.

DKZB0510-1000 Busbar Add

DKZB0510-1000 For DKZ4 / DKZ4E / DKZ4E-YG.
White color.

DKZB0515-1000 Busbar Add

DKZB0515-1000 For DKZ35 / DKZ35A .
White color.

DKZB1010-1000 Busbar Add

DKZB1010-1000 For DKZ4 / DKZ4E / DKZ4E-YG.
White color.

AKP-TG Feed through connector Add

AKP-TG For AK2.5-TG / AK4-TG / AK2.5-TN-TG / AK2.5-TR-TG / DK2.5N-TG / DK4N-TG / DKK2.5N-TG / DKK4N-TG.
Orange color.
Using UL94-V0 class of insulation material.

AKP-TP Plug-in bridge Add

AKP-TP For AK2.5-TP / AK4-TP / AK2.5-TN-TP / AK2.5-TR-TP / DKK2.5N-TP / DK2.5N-TP / DK4N- TP / DKK4N-TP.
Orange color.
Using UL94-V0 class of insulation material.

AKP-CP Component plug Add

AKP-CP For AK2.5 CP / AK4-CP / AK2.5-TN-CP / AK2.5-TR-CP / DK2.5N-CP / DK4N-CP / DKK4N-CP / DKK2.5N-CP.
Orange color.
Using UL94-V0 class of insulation material.

AK2.5C End Cover Add

AK2.5C For AK1.5 / AK2.5
Grey color.
Using UL94-V0 class of insulation material.

AK4C End Cover Add

AK4C For AK4
Grey color.
Using UL94-V0 class of insulation material.

PM2.5NC End Cover Add

PM2.5NC For PM2.5N.
Grey color.
Using UL94-V0 class of insulation material.

PM4NC End Cover Add

PM4NC For PM4N
Gery color.
Using UL94-V0 class of insulation material.

PM6NC End cover Add

PM6NC For PM6N
Grey color.
Using UL94-V0 class of insulation material.

PM2.5WSC End Cover Add

PM2.5WSC For PM2.5WS / PM2.5WSA / PMM2.5WS / PMM2.5WSA
Grey color.
Using UL94-V0 class of insulation material.

PMH Mounting base Add

PMH For PM2.5N / PM4N / PM6N / PM2.5WS / PM2.5WSA / PMM2.5WS / PMM2.5WSA / PM2.5W / PMM2.5W.
Gray color.
Using UL94-V0 class of insulation material.

DS-401 Insertion bridge Add

DS-401 For pitch is 9.50mm of barrier terminal blocks.
Material is brass.
Rated current 25A.

DKBC150-1000 Cover Add

DKBC150-1000 For DKB150.
Using UL94-V2 class of insulation material.

TM41W Marking Label Add

TM41W For DP1.5,DP1.5-TN,DP1.5-TR,DP1.5-PE,DP1.5-TN-PE,DP1.5-TR-PE

White color.
Using UL94-V2 class of insulation material.

TM42W Marking Label Add

TM42W For
BEST APPLICATION：
DP2.5, DP2.5-TN, DP2.5-TR, DPP2.5, DP2.5-3L, DP2.5-3L-PV, DP2.5-PE, DP2.5-TN-PE,
DP2.5-TR-PE, DPP2.5-PE, DP2.5-3L-L3PE, DK2.5S, PM2.5WN, PMM2.5WN

AVAILABLE APPLICATION：
DP2.5-ES, DP2.5/1P, DP2.5PG-XXP, DKES1.5, DKES1.5-XXP, DKES1.5M-XXP

White color.
Using UL94-V2 class of insulation material.

TM43W Marking Label Add

TM43W For
BEST APPLICATION：
DP4, DP4-TN, DP4-TR, DPP4, DP4-PE, DP4-TN-PE, DP4-TR-PE, DPP4-PE, DP4-TFU,
DP4-TFU(5X20), DK4S, SS2, SS7

White color.
Using UL94-V2 class of insulation material.

TM44W Marking Label Add

TM44W For
BEST APPLICATION：
DP6, DP6-TN, DP6-TR, DP6-PE, DP6-TN-PE, DP6-TR-PE, DPTD6, DPTL6,
DPTD6-D05, DPTD6-D06, DK6S

AVAILABLE APPLICATION：
DK4N-TF(5X20), DK4N-TFL(5X20), DKK4-TF(5X20)

White color.
Using UL94-V2 class of insulation material.

TM45W Marking Label Add

TM45W For
BEST APPLICATION：
DP10, DP10-TN, DP10-PE, DP10-TN-PE

AVAILABLE APPLICATION：
DP16, DP16-PE, DK10-TF(5X20)

White color.
Using UL94-V2 class of insulation material.

TM46W Marking Label Add

TM46W For DP1.5,DP1.5-TN,DP1.5-TR,DP1.5-PE,DP1.5-TN-PE,DP1.5-TR-PE

White color.
Using UL94-V2 class of insulation material.

TM47W Marking Label Add

TM47W For
BEST APPLICATION：
DP2.5, DP2.5-TN, DP2.5-TR, DP2.5-PE, DP2.5-TN-PE, DP2.5-TR-PE, DP2.5/1P,
DK2.5N, DK2.5N-TN, DK2.5N-TR
DKK2.5N, DKK2.5N-PV, DK2.5N-PE, DK2.5N-TN-PE, DK2.5N-TR-PE, DK2.5N-TP,
DK2.5N-TG, DK2.5N-CP, DKK2.5N-TP, DKK2.5N-TG, DKK2.5N-CP, PM2.5N

AVAILABLE APPLICATION：
DK2.5-PE, DKES1.5, DKES1.5-XXP, DKES1.5M-XXP

White color.
Using UL94-V2 class of insulation material.

TM48W Marking Label Add

TM48W For DP4, DP4-TN, DP4-TR, DP4-PE, DP4-TN-PE, DP4-TR-PE, SS2
DK4N, DK4N-TN, DK4N-TR, DKK4N, DKK4N-PV, DK4N-PE, DK4N-TN-PE, DK4N-TR-PE,
DK4-PE, DK4N-TP, DK4N-TG, DK4N-CP, DKK4N-TP, DKK4N-TG, DKK4N-CP, PM4N

White color.
Using UL94-V2 class of insulation material.

TM49W Marking Label Add

TM49W For
BEST APPLICATION：
DP6, DP6-TN, DP6-TR, DP6-PE, DP6-TN-PE, DP6-TR-PE, DPTD6, DPTL6,
DPTD6-D05, DPTD6-D06, DK6N, DK6N-TN, DK6N-PE, DKTD6N, DKTD6, DKTL6,
PM6N

AVAILABLE APPLICATION：
DK10N, DK10N-TN, DK10N-PE, DK10-PE, DK16-PE, DK16N-PE, DK16H, DK35H,
DK35H-PE, DK50, DK50-PE, DK95-PE, DK95, DK150, DK240
DKM5, DKM6, DKM8, DKM10, DKM12, DKMW8, DKM6-2, DKM8-2, DKM10-2, SS4,
SS5, SS6, SS7, SS8, SS11

White color.
Using UL94-V2 class of insulation material.

TM50W Marking Label Add

TM50W For
BEST APPLICATION：
DP10, DP10-TN, DP10-PE, DP10-TN-PE

AVAILABLE APPLICATION：
DP16, DP16-PE

White color.
Using UL94-V2 class of insulation material.

AK2.5C-TR End Cover Add

AK2.5C-TR For AK2.5-TR
Grey color.
Using UL94-V0 class of insulation material.

AK4C-TR End Cover Add

AK4C-TR For AK4-TR
Grey color.
Using UL94-V0 class of insulation material.

DP1.5C End Cover Add

DP1.5C For DP1.5
Grey color.
Using UL94-V0 class of insulation material.

DP2.5C End Cover Add

DP2.5C For DP2.5
Grey color.
Using UL94-V0 class of insulation material.

DP4C End Cover Add

DP4C For DP4
Grey color.
Using UL94-V0 class of insulation material.

DP10C End Cover Add

DP10C For DP10
Grey color.
Using UL94-V0 class of insulation material.

DP16C End Cover Add

DP16C For DP16
Grey color.
Using UL94-V0 class of insulation material.

DP1.5C-TN End Cover Add

DP1.5C-TN For DP1.5-TN
Grey color.
Using UL94-V0 class of insulation material.

DP2.5C-TN End Cover Add

DP2.5C-TN For DP2.5-TN
Grey color.
Using UL94-V0 class of insulation material.

DP4C-TN End Cover Add

DP4C-TN For DP4-TN
Grey color.
Using UL94-V0 class of insulation material.

DP10C-TN End Cover Add

DP10C-TN For DP10-TN
Grey color.
Using UL94-V0 class of insulation material.

DP2.5C-TR End Cover Add

DP2.5C-TR For DP2.5-TR
Grey color.
Using UL94-V0 class of insulation material.

DP4C-TR End Cover Add

DP4C-TR For DP4-TR
Grey color.
Using UL94-V0 class of insulation material.

DPP1.5C End Cover Add

DPP1.5C For DPP1.5
Grey color.
Using UL94-V0 class of insulation material.

DPP2.5C End Cover Add

DPP2.5C For DPP2.5
Grey color.
Using UL94-V0 class of insulation material.

DPP4C End Cover Add

DPP4C For DPP4
Grey color.
Using UL94-V0 class of insulation material.

DP2.5C-3L End Cover Add

DP2.5C-3L For DP2.5-3L / DP2.5-3L-PV
Grey color.
Using UL94-V0 class of insulation material.

DP1.5C-YG End Cover Add

DP1.5C-YG For DP1.5-PE
Green-Yellow (default)
Using UL94-V0 class of insulation material.

DP2.5C-YG End Cover Add

DP2.5C-YG For DP2.5-PE
YELLOW-GREEN color.
Using UL94-V0 class of insulation material.

DP4C-YG End Cover Add

DP4C-YG For DP4-PE
YELLOW-GREEN color.
Using UL94-V0 class of insulation material.

DP2.5C-TN-YG End Cover Add

DP2.5C-TN-YG For DP2.5-TN-PE
YELLOW-GREEN color.
Using UL94-V0 class of insulation material.

DP4C-TN-YG End Cover Add

DP4C-TN-YG For DP4-TN-PE
YELLOW-GREEN color.
Using UL94-V0 class of insulation material.

DP10C-TN-YG End Cover Add

DP10C-TN-YG For DP10-TN-PE
YELLOW-GREEN color.
Using UL94-V0 class of insulation material.

DP4C-TR-YG End Cover Add

DP4C-TR-YG 适用于DP4-TR-PE
产品为黄绿色
采用V0等级绝缘材料

DPP1.5C-YG End Cover Add

DPP1.5C-YG For DPP1.5-PE
YELLOW-GREEN color.
Using UL94-V0 class of insulation material.

DPP2.5C-YG End Cover Add

DPP2.5C-YG For DPP2.5-PE
YELLOW-GREEN color.
Using UL94-V0 class of insulation material.

DPP4C-YG End Cover Add

DPP4C-YG For DPP4-PE
YELLOW-GREEN color.
Using UL94-V0 class of insulation material.

DP2.5C-ES End Cover Add

DP2.5C-ES For DP2.5-ES
Grey color.
Using UL94-V0 class of insulation material.

DP2.5/1PC End Cover Add

DP2.5/1PC For DP2.5/1P
Grey color.
Using UL94-V0 class of insulation material.

DP4C-TFU End Cover Add

DP4C-TFU For DP4-TFU / DP4-TFU(5x20)
Grey color.
Using UL94-V0 class of insulation material.

DPTD6C End Cover Add

DPTD6C For DPTD6 / DPTL6 / DPTD6-D05 / DPTD6-D06
Grey color.
Using UL94-V0 class of insulation material.

DK16HC End Cover Add

DK16HC For DK16H
Grey color.
Using UL94-V0 class of insulation material.

DK2.5NC-TN End Cover Add

DK2.5NC-TN For DK2.5N-TN / DK4N-TN
Grey color.
Using UL94-V0 class of insulation material.

DK2.5NC-TR End Cover Add

DK2.5NC-TR For DK2.5N-TR / DK4N-TR
Grey color.
Using UL94-V0 class of insulation material.

DKK2.5NC End Cover Add

DKK2.5NC For DKK2.5N / DKK4N / DKK2.5N-PV / DKK4N-PV / DKK2.5N-TP / DKK2.5N-TG / DKK2.5N-CP / DKK4N-TP / DKK4N-TG / DKK4N-CP
Grey color.
Using UL94-V0 class of insulation material.

DK2.5NC-PE End Cover Add

DK2.5NC-PE For DK2.5N-PE/DK4N-PE
Green-Yellow (default)
Using UL94-V0 class of insulation material.

DK6NC-PE End Cover Add

DK6NC-PE For DK6N-PE
Green-Yellow (default)
Using UL94-V0 class of insulation material.

DK16NC-PE End Cover Add

DK16NC-PE For DK16N-PE
Green-Yellow (default)
Using UL94-V0 class of insulation material.

DK2.5NC-TN-PE End Cover Add

DK2.5NC-TN-PE For DK2.5N-TN-PE / DK4N-TN-PE
Green-Yellow (default)
Using UL94-V0 class of insulation material.

DK2.5NC-TR-PE End Cover Add

DK2.5NC-TR-PE For DK2.5N-TR-PE/DK4N-TR-PE
Green-Yellow (default)
Using UL94-V0 class of insulation material.

DKES1.5MCA End Cover Add

DKES1.5MCA For DKES1.5
Grey color.
Using UL94-V0 class of insulation material.

DK2.5PC End Cover Add

DK2.5PC For DK2.5S
Grey color.
Using UL94-V0 class of insulation material.

DK4NC-TF End Cover Add

DK4NC-TF For DK4N-TF(5x20) / DK4N-TFL(5x20)
Grey color.
Using UL94-V0 class of insulation material.

DKTD6NC End Cover Add

DKTD6NC For DKTD6N
Grey color.
Using UL94-V0 class of insulation material.

DKTLC End Cover Add

DKTLC For DKTD6 / DKTL6
Grey color.
Using UL94-V0 class of insulation material.

AK10C End Cover Add

AK10C For AK10
Grey color.
Using UL94-V0 class of insulation material.

AK16C End Cover Add

AK16C For AK16
Grey color.
Using UL94-V0 class of insulation material.

AK2.5C-TN End Cover Add

AK2.5C-TN For AK2.5-TN
Grey color.
Using UL94-V0 class of insulation material.

AK4C-TN End Cover Add

AK4C-TN For AK4-TN
Grey color.
Using UL94-V0 class of insulation material.

AK10C-TN End Cover Add

AK10C-TN For AK10-TN
Grey color.
Using UL94-V0 class of insulation material.

AK16C-TN End Cover Add

AK16C-TN For AK16-TN
Grey color.
Using UL94-V0 class of insulation material.

AKK2.5C End Cover Add

AKK2.5C For AKK1.5 / AKK2.5
Grey color.
Using UL94-V0 class of insulation material.

AKK4C End Cover Add

AKK4C For AKK4
Grey color.
Using UL94-V0 class of insulation material.

AK2.5C-YG End Cover Add

AK2.5C-YG For AK1.5-PE / AK2.5-PE
Green-Yellow (default)
Using UL94-V0 class of insulation material.

AK4C-YG End Cover Add

AK4C-YG For AK4-PE
Green-Yellow (default)
Using UL94-V0 class of insulation material.

AK10C-YG End Cover Add

AK10C-YG For AK10-PE
Green-Yellow (default)
Using UL94-V0 class of insulation material.

DP-PZ-02P Strain relief Add

DP-PZ-02P For DP2.5PG-XXP.
Black color.
Using UL94-V0 class of insulation material.

DP-PZ-04P Strain relief Add

DP-PZ-04P For DP2.5PG-XXP.
Black color.
Using UL94-V0 class of insulation material.

DP-PR Latch Add

DP-PR For DP2.5PG-XXP.
Orange color.
Using UL94-V0 class of insulation material.

0207-01XX Component plug Add

0207-01XX For DP2.5-ES.
Blue color.
Using UL94-V0 class of insulation material.

0175L1 Lever Add

0175L1 For DK2.5N、DK2.5N-TN、DK2.5N-TR、DKK2.5N.
Orange color.
Using UL94-V0 class of insulation material.

0175-T002 Test plug Add

0175-T002 For DK2.5N, DK2.5N-TN, DK2.5N-TR, DKK2.5N, DKK2.5N-PV.
Red color.
Using UL94-V0 class of insulation material.

DP-FU(5X20) Fuse Plug Add

DP-FU(5X20) For DP4-TFU(5X20).
Black color.
Using UL94-V0 class of insulation material.

FUK1A-001 Fuse Add

FUK1A-001 For DK4N-TF(5X20), DK4-TFL(5X20), DKK4-TF(5X20), DKK10-TF(5X20), DP4-TFU(5X20), DP-FU(5X20)

FUK1A-002 Fuse Add

FUK1A-002 For DK4N-TF(5X20), DK4-TFL(5X20), DKK4-TF(5X20), DKK10-TF(5X20), DP4-TFU(5X20), DP-FU(5X20)
