PCB Terminal Blocks
PCB terminal blocks use an error-proofing design and an assortment of techniques to provide electricity or signal transmissions for a variety of industrial applications. They also comply with international certifications.
-
PCB Connector-Plug
Connector-plugs use an assortment of connecting technologies such as screw connections, spring clamp connections and a push-in design structure. The plug components are available in a variety of wire entry angles and mounting structures.
More -
PCB Connector-Socket
Connector sockets are often soldered or mounted onto PCB terminal blocks. Sockets are available in a range of designs including different angles, single/multi-level, normal PA and high temperature material to meet different application and assembly requirements.
More -
PCB Terminal Blocks

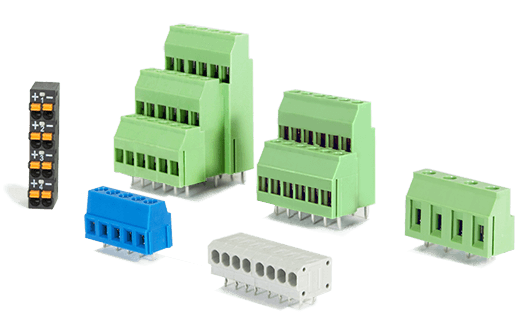

PCB terminal blocks come in a wide range of products that are quick to install, easy to maintain and compact in size. They use a variety of connecting technologies and come in different angles, single/multi-level designs and high heat resistance material for reflow applications.
More -
Transformer Terminal Blocks
The special slot design on the back of the block makes for easy installation. This range of products provides a safe and reliable high voltage connection. The modular design allows the user to arrange the needed pole size with easily.
More -
Panel Feed-Through Blocks
A highly reliable structure through a panel or housing makes for a safer connection. There are different sizes available that are suitable for wire diameters ranging from 4mm² to 95mm². Different wiring angles are also available.
More -
Special Type Terminal Blocks
These products are designed for special connection purposes. The terminal blocks can be mounted on a panel or on a DIN rail while connected to a plug component. 5.00mm and 5.08mm pitches are available.
More -
In tape-on-reel packing
SMT (Surface Mount Technology) process is a modern module manufacturing process, focusing on cost-optimization through a fully automated process. PCB connectors suitable for THR (Through Hole Reflow) soldering method are loaded onto tape-on-reel packaging, which integrates these components into the automated SMT process. Dinkle offers tape-on-reel packaging method for PCB sockets ranging from pitches 3.5mm to 7.62mm, meeting the PCB requirements for SMT process. Vacuum nozzle or mechanical gripper tape-on-reel options are both available. With suction method, you have two options available for vertical or horizontal position depending on your application requirement. Vacuum nozzle is commonly used for components placement operations by applying pressure through vacuum, and both vertical and horizontal direction picking for the connectors are supported. Mechanical gripper is designed for uniquely shaped parts, where extra spaces are reserved on the two sides of the connector to accommodate the gripper.
More -
Accessories
Accessories are often used in PCB terminal blocks to improve connection verification and error-proofing. Accessories include key codes, levers and insertion bridges.
More
