0156-13XX

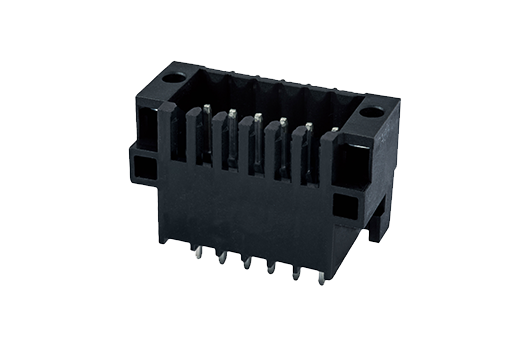

PCB Terminal BlocksPCB Connector-Socket

Pitch : 2.54 mm , 150V , 5A

AccessoriesPDF Download Inquiry Add

  • General information
    • Short description
    • PCB Connector – Socket,Wave soldering
    • Long description
    • PCB Connector – Socket,Wave soldering,Pitch:2.54mm,150V,5A
    • Category
    • PCB Connector – Socket
    • Pitch (mm)
    • 2.54
    • Color
    • Black(default)
    • Type of locking
    • With threaded flange / With lock flange
    • Soldering method
    • Wave soldering
    • Length (mm)
    • 2.54*(P/2-1)+10.1
    • Width (mm)
    • 10.5
    • Height (mm)
    • 14.2
    • Pin demensions (Thickness x Width)(mm)
    • 0.8x0.8
    • PCB hole diameter (mm)
    • 1.4
    • Number of positions
    • 04P~44P
    • Level
    • Double level
  • Material information
    • Insulation material
    • PA
    • Insulation material group
    • I
    • Flame retardant rating , compliant with UL94
    • V0
    • Insulation resistance
    • ≥500MΩ at DC 500V
    • Conductor material
    • COPPER ALLOY
    • Plating of conductor surface
    • Tin PLATED
  • Connection data-IEC
    • Rated voltage (V)
    • 320
    • Rated current (A)
    • 6
    • Rated voltage (II/2)(V)
    • 320
    • Rated voltage (III/2) (V)
    • 160
    • Rated impulse voltage (II/2)(KV)
    • 2.5
    • Rated impulse voltage (III/2)(KV)
    • 2.5
  • Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 150
    • Rated current (UL/CUL Group B)(A)
    • 5
  • Environment & Safety
    • Finger protection (YES or NO)
    • NO
    • Operating temperature. max (°C)
    • 120
    • Operating temperature. min (°C)
    • -40
  • UL Recognized
    • Rated voltage (Group B)(V)
    • 150
    • Rated current (Group B)(A)
    • 5
  • CUL Recognized
    • Rated voltage (Group B)(V)
    • 150
    • Rated current (Group B)(A)
    • 5

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
