• Short description

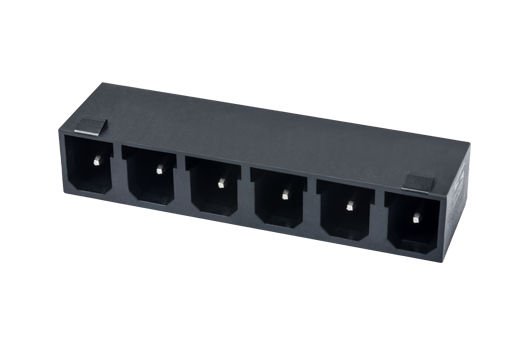

• PCB Connector–Socket, Wave soldering

• Long description
• PCB Connector–Socket, Wave soldering, Pitch:7.62mm, 300V, 32A

• Category
• PCB Connector–Socket

• Pitch (mm)
• 7.62

• Color
• Black (default)

• Type of locking
• Without

• Soldering method
• Wave soldering

• Length (mm)
• 7.62*(P-1)+7.0

• Width (mm)
• 12.65

• Height (mm)
• 9.35

• Pin demensions (Thickness x Width)(mm)
• 1x1

• PCB hole diameter (mm)
• 1.3

• Number of positions
• 02P~12P

• Level
• Single level

• Insulation material
• PBT

• Insulation material group
• IIIa

• Flame retardant rating , compliant with UL94
• V0

• Insulation resistance
• ≥1000MΩ at DC 500V

• Conductor material
• COPPER ALLOY

• Plating of conductor surface
• Tin PLATED

• Rated voltage (V)
• 630

• Rated current (A)
• 32

• Rated voltage (II/2)(V)
• 630

• Rated voltage (III/2) (V)
• 500

• Rated voltage (III/3)(V)
• 400

• Rated impulse voltage (II/2)(KV)
• 6

• Rated impulse voltage (III/2)(KV)
• 6

• Rated impulse voltage (III/3)(KV)
• 6

• Rated voltage (UL/CUL Group B)(V)
• 300

• Rated current (UL/CUL Group B)(A)
• 25

• Rated voltage (UL/CUL Group C)(V)
• 300

• Rated current (UL/CUL Group C)(A)
• 25

• Rated voltage (UL/CUL Group D)(V)
• 600

• Rated current (UL/CUL Group D)(A)
• 5

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 120

• Operating temperature. min (°C)
• -40

• Rated voltage (Group B)(V)
• 300

• Rated current (Group B)(A)
• 25

• Rated voltage (Group C)(V)
• 300

• Rated current (Group C)(A)
• 25

• Rated voltage (Group D)(V)
• 600

• Rated current (Group D)(A)
• 5

• Rated voltage (Group B)(V)
• 300

• Rated current (Group B)(A)
• 25

• Rated voltage (Group C)(V)
• 300

• Rated current (Group C)(A)
• 25

• Rated voltage (Group D)(V)
• 600

• Rated current (Group D)(A)
• 5
