• Short description

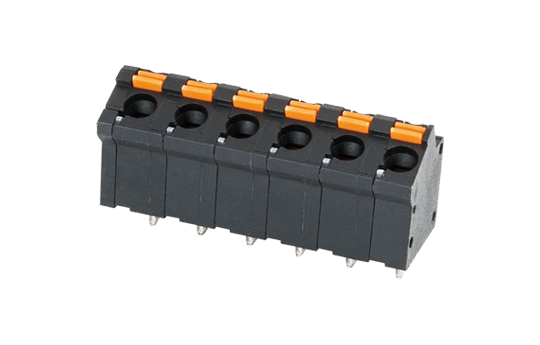

• PCB Terminal Blocks, Push-in Design

• Long description
• PCB Terminal Blocks, Push-in Design, Wave soldering, Pitch:5.00mm, 300V, 10A

• Category
• PCB Terminal Blocks

• Pitch (mm)
• 5.00

• Color
• Black (default)

• Connection method
• Push in Design

• Type of locking
• Without

• Soldering method
• Wave Soldering

• Length (mm)
• 5.00*(P-1)+5.1

• Width (mm)
• 11.1

• Height (mm)
• 12.4

• Pin demensions (Thickness x Width)(mm)
• 0.6x1

• PCB hole diameter (mm)
• 1.2

• Number of positions
• 02P~20P

• Level
• Single level

• Insulation material
• PA

• Insulation material group
• I

• Flame retardant rating , compliant with UL94
• V0

• Insulation resistance
• ≥500MΩ at DC 500V

• Conductor material
• COPPER ALLOY

• Plating of conductor surface
• Tin PLATED

• Rated voltage (V)
• 320

• Rated current (A)
• 14

• Rated voltage (II/2)(V)
• 630

• Rated voltage (III/2) (V)
• 320

• Rated voltage (III/3)(V)
• 250

• Rated impulse voltage (II/2)(KV)
• 4

• Rated impulse voltage (III/2)(KV)
• 4

• Rated impulse voltage (III/3)(KV)
• 4

• Conductor cross section solid. min (mm²)
• 0.2

• Conductor cross section solid.max (mm²)
• 1.5

• Conductor cross section stranded. min (mm²)
• 0.2

• Conductor cross section stranded. max (mm²)
• 1.5

• Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
• 1

• Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
• 0.75

• Slotted screwdriver size (Blade thickness x Width)(mm)
• 0.4x2.5

• Stripping Length (mm)
• 8~9

• Rated voltage (UL/CUL Group B)(V)
• 300

• Rated current (UL/CUL Group B)(A)
• 10

• Rated voltage (UL/CUL Group D)(V)
• 300

• Rated current (UL/CUL Group D)(A)
• 10

• Min. solid wire connection (AWG) acc. to UL/CUL
• 26

• Max. solid wire connection AWG acc. to UL/CUL
• 16

• Min. stranded wire connection AWG acc. to UL/CUL
• 26

• Max. stranded wire connection AWG acc. to UL/CUL
• 16

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 120

• Operating temperature. min (°C)
• -40
