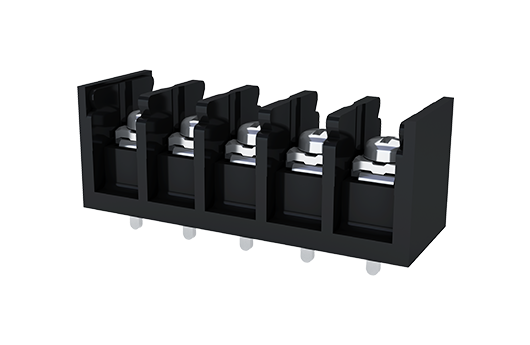

• Short description
• Single Row, Screw Connection

• Long description
• Single Row, Screw Connection, Pitch :10.00mm, M4, 300V, 45A

• Category
• Single Row

• Pitch (mm)
• 10

• Color
• Black (default)

• Connection method
• Screw connection

• Type of locking
• Without

• Soldering method
• Wave Soldering

• Length (mm)
• 10.00*(P-1)+13.00

• Width (mm)
• 18

• Height (mm)
• 19.4

• Pin demensions (Thickness x Width)(mm)
• 1x1.8

• PCB hole diameter (mm)
• 2.4~2.5

• Number of positions
• 02P~08P

• Level
• Single Row

• Connection points
• 2~8

• Insulation material
• PBT

• Insulation material group
• IIIa

• Flame retardant rating , compliant with UL94
• V0

• Insulation resistance
• ≥1000MΩ at DC 500V

• Conductor material
• COPPER ALLOY

• Plating of conductor surface
• Tin PLATED

• Rated voltage (V)
• 630

• Rated current (A)
• 57

• Rated voltage (II/2)(V)
• 800

• Rated voltage (III/2) (V)
• 630

• Rated voltage (III/3)(V)
• 500

• Rated impulse voltage (II/2)(KV)
• 6

• Rated impulse voltage (III/2)(KV)
• 6

• Rated impulse voltage (III/3)(KV)
• 6

• Conductor cross section solid. min (mm²)
• 0.5

• Conductor cross section solid.max (mm²)
• 4

• Conductor cross section stranded. min (mm²)
• 0.5

• Conductor cross section stranded. max (mm²)
• 4 6~10（O&Y）

• 2 conductors with same cross section, solid, min (mm²)
• 0.5

• 2 conductors with same cross section, solid, max (mm²)
• 4

• 2 conductors with same cross section, stranded, min (mm²)
• 0.5

• 2 conductors with same cross section, stranded, max (mm²)
• 4 6~10（O&Y）

• Screw thread
• M4

• Slotted screwdriver size (Blade thickness x Width)(mm)
• 1x5.5

• Philips screwdriver size
• PH2

• Recommend tightening torque. min (N.m)
• 0.8

• Recommend tightening torque. max (N.m)
• 1

• Stripping Length (mm)
• 11~12

• Rated voltage (UL/CUL Group B)(V)
• 300

• Rated current (UL/CUL Group B)(A)
• 45

• Rated voltage (UL/CUL Group C)(V)
• 300

• Rated current (UL/CUL Group C)(A)
• 45

• Rated voltage (UL/CUL Group D)(V)
• 300

• Rated current (UL/CUL Group D)(A)
• 10

• Min. solid wire connection (AWG) acc. to UL/CUL
• 22

• Max. solid wire connection AWG acc. to UL/CUL
• 10 8（O&Y）

• Min. stranded wire connection AWG acc. to UL/CUL
• 22

• Max. stranded wire connection AWG acc. to UL/CUL
• 10 8（O&Y）

• Back of the hand protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 120

• Operating temperature. min (°C)
• -40

• Wire Range (Group B)(AWG)
• 22~10 88（O&Y）

• Rated voltage (Group B)(V)
• 300

• Rated current (Group B)(A)
• 45

• Wire Range (Group C)(AWG)
• 22~10 88（O&Y）

• Rated voltage (Group C)(V)
• 300

• Rated current (Group C)(A)
• 45

• Wire Range (Group D)(AWG)
• 22~10 88（O&Y）

• Rated voltage (Group D)(V)
• 300

• Rated current (Group D)(A)
• 10

• Wire Range (Group B)(AWG)
• 22~10 88（O&Y）

• Rated voltage (Group B)(V)
• 300

• Rated current (Group B)(A)
• 45

• Wire Range (Group C)(AWG)
• 22~10 88（O&Y）

• Rated voltage (Group C)(V)
• 300

• Rated current (Group C)(A)
• 45

• Wire Ranget (Group D)(AWG)
• 22~10 88（O&Y）

• Rated voltage (Group D)(V)
• 300

• Rated current (Group D)(A)
• 10
