0221-52XXL

PCB Terminal BlocksPCB Connector-Socket

Pitch: 3.81 mm , 300V, 8A

AccessoriesPDF Download Inquiry Add

  • General information
    • Short description
    • PCB Connector – Socket,Reflow Soldering
    • Long description
    • PCB Connector – Socket,Reflow Soldering (245℃),Pitch:3.81mm,300V,8A
    • Category

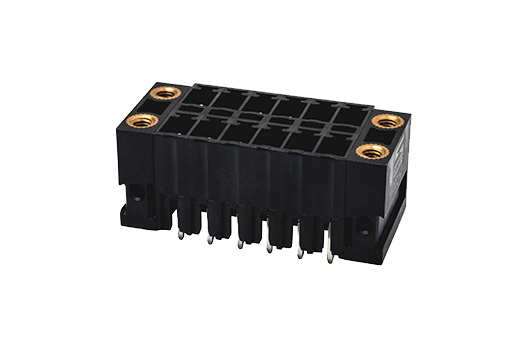

    • PCB Connector – Socket
    • Pitch (mm)
    • 3.81
    • Color
    • Black(default)
    • Type of locking
    • Without
    • Soldering method
    • Reflow Soldering (245℃)

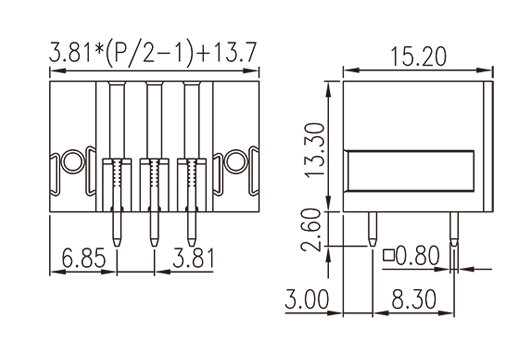

    • Length (mm)
    • 3.81*(P/2-1)+13.7
    • Width (mm)
    • 13.3
    • Height (mm)
    • 15.2
    • Pin demensions (Thickness x Width)(mm)
    • 0.8X0.8

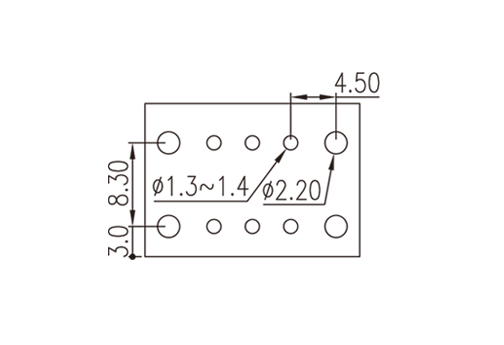

    • PCB hole diameter (mm)
    • 1.4
    • Number of positions
    • 04P~48P
    • Level
    • Double level
  • Material information
    • Insulation material
    • High-temperature plastics
    • Insulation material group
    • IIIa
    • Flame retardant rating , compliant with UL94
    • V0
    • Insulation resistance
    • ≥500MΩ at DC 500V
    • Conductor material
    • COPPER ALLOY
    • Plating of conductor surface
    • Tin PLATED
    • MSL
    • 2
  • Connection data-IEC
    • Rated voltage (V)
    • 320
    • Rated current (A)
    • 5
    • Rated voltage (II/2)(V)
    • 320
    • Rated voltage (III/2) (V)
    • 320
    • Rated voltage (III/3)(V)
    • 160
    • Rated impulse voltage (II/2)(KV)
    • 4
    • Rated impulse voltage (III/2)(KV)
    • 4
    • Rated impulse voltage (III/3)(KV)
    • 4
    • Tightening torque with flange. max (N.m)
    • 0.3
  • Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 300
    • Rated current (UL/CUL Group B)(A)
    • 8
  • Environment & Safety
    • Finger protection (YES or NO)
    • YES
    • Operating temperature. max (°C)
    • 130
    • Operating temperature. min (°C)
    • -40
  • UL Recognized
    • Rated voltage (Group B)(V)
    • 300
    • Rated current (Group B)(A)
    • 8
  • CUL Recognized
    • Rated voltage (Group B)(V)
    • 300
    • Rated current (Group B)(A)
    • 8
  • ECHK1L

    Keycode

    Keycode
  • Add

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
