• Short description

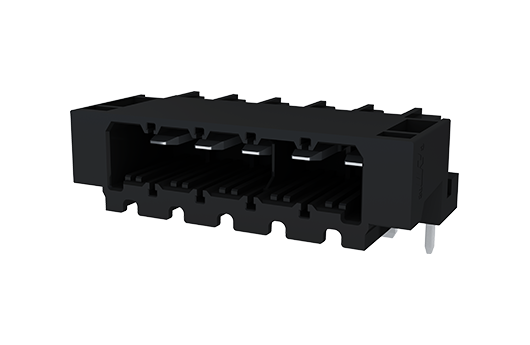

• PCB Connector – Socket, Reflow Soldering

• Long description
• PCB Connector – Socket, Pitch : 5.00mm, 300V, 15A

• Category
• PCB Connector – Socket

• Pitch (mm)
• 5

• Color
• Black (default)

• Type of locking
• With release tool

• Soldering method
• Reflow Soldering

• Length (mm)
• 5.00*(P-1)+13

• Width (mm)
• 16

• Height (mm)
• 9.3

• Pin demensions (Thickness x Width)(mm)
• 0.8x1.8

• PCB hole diameter (mm)
• 0.9*2.6

• Number of positions
• 02P~16P

• Level
• Single level

• Insulation material
• HIGH-TEMPERATURE PLASTICS

• Insulation material group
• I

• Flame retardant rating , compliant with UL94
• V0

• Insulation resistance
• ≥500MΩ at DC 500V

• Conductor material
• COPPER ALLOY

• Plating of conductor surface
• Tin PLATED

• MSL
• 2

• Rated voltage (V)
• 630

• Rated current (A)
• 18

• Rated voltage (II/2)(V)
• 630

• Rated voltage (III/2) (V)
• 320

• Rated voltage (III/3)(V)
• 320

• Rated impulse voltage (II/2)(KV)
• 4

• Rated impulse voltage (III/2)(KV)
• 4

• Rated impulse voltage (III/3)(KV)
• 4

• Rated voltage (UL/CUL Group B)(V)
• 300

• Rated current (UL/CUL Group B)(A)
• 15

• Rated voltage (UL/CUL Group D)(V)
• 300

• Rated current (UL/CUL Group D)(A)
• 15

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 120

• Operating temperature. min (°C)
• -40

• Wire Range (Group B)(AWG)
• 300

• Rated voltage (Group B)(V)
• 15

• Rated voltage (Group D)(V)
• 300

• Rated current (Group D)(A)
• 15

• Rated voltage (Group B)(V)
• 300

• Rated current (Group B)(A)
• 15

• Rated voltage (Group D)(V)
• 300

• Rated current (Group D)(A)
• 15
