• Short description

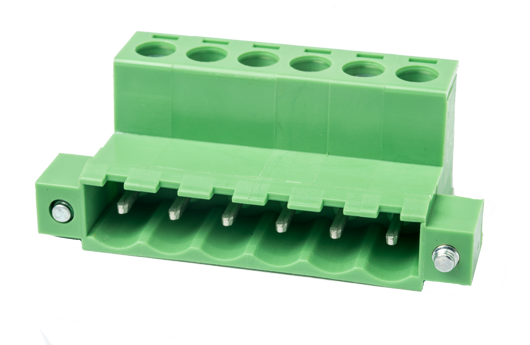

• PCB Connector – Socket, Screw Connection

• Long description
• PCB Connector – Socket, Screw Connection, Pitch: 5.08 mm, 300V, 12A

• Category
• PCB Connector – Socket

• Pitch (mm)
• 5.08

• Color
• Green (default)

• Connection method
• Screw Connection

• Type of locking
• With screw flange

• Length (mm)
• 5.08*(P-1)+6.58

• Width (mm)
• 19.2

• Height (mm)
• 15

• Number of positions
• 02P~12P

• Level
• Single level

• Insulation material
• PA

• Insulation material group
• I

• Flame retardant rating , compliant with UL94
• V0

• Insulation resistance
• ≥500MΩ at DC 500V

• Conductor material
• COPPER ALLOY

• Plating of conductor surface
• Tin PLATED

• Rated voltage (V)
• 250

• Rated current (A)
• 12

• Rated voltage (II/2)(V)
• 600

• Rated voltage (III/2) (V)
• 320

• Rated voltage (III/3)(V)
• 250

• Rated impulse voltage (II/2)(KV)
• 2.5

• Rated impulse voltage (III/2)(KV)
• 2.5

• Rated impulse voltage (III/3)(KV)
• 2.5

• Conductor cross section solid. min (mm²)
• 0.5

• Conductor cross section solid.max (mm²)
• 2.5

• Conductor cross section stranded. min (mm²)
• 0.5

• Conductor cross section stranded. max (mm²)
• 2.5

• Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
• 2.5

• Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
• 1.5

• 2 conductors with same cross section, solid, max (mm²)
• 1.5

• 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
• 0.5

• 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
• 1

• Screw thread
• M2.5

• Slotted screwdriver size (Blade thickness x Width)(mm)
• 0.6x3.5

• Philips screwdriver size
• PH1

• Rated torque (N.m)
• 0.5

• Stripping Length (mm)
• 7~8

• Rated voltage (UL/CUL Group B)(V)
• 300

• Rated current (UL/CUL Group B)(A)
• 12

• Min. solid wire connection (AWG) acc. to UL/CUL
• 24

• Max. solid wire connection AWG acc. to UL/CUL
• 12

• Min. stranded wire connection AWG acc. to UL/CUL
• 24

• Max. stranded wire connection AWG acc. to UL/CUL
• 12

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 120

• Operating temperature. min (°C)
• -40

• Wire Range (Group B)(AWG)
• 24~12

• Rated voltage (Group B)(V)
• 300

• Rated current (Group B)(A)
• 12

• Wire Range (Group B)(AWG)
• 24~12

• Rated voltage (Group B)(V)
• 300

• Rated current (Group B)(A)
• 12
