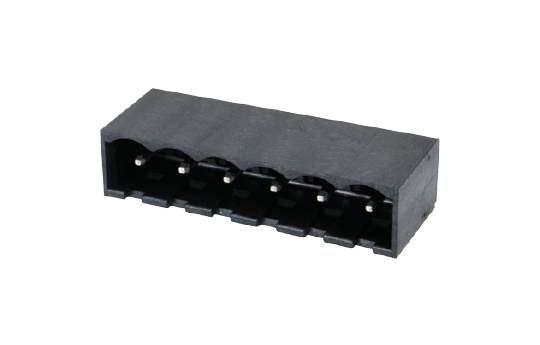

The photo demonstrate a 6 pole product
The photo demonstrate a 6 pole product
The photo demonstrate a 6 pole product
General information
Short description
PCB Connector – Socket, Reflow soldering
Long description
PCB Connector – Socket, Reflow Soldering (245℃), Pitch:5.00mm, 300V, 15A
Category
PCB Connector – Socket
Soldering method
Reflow Soldering (Temperature condition according to standard IPC/JEDEC J-STD-020E)
Length (mm)
5.00*(P-1)+6.9
Pin demensions (Thickness x Width)(mm)
1.0x1.0
PCB hole diameter (mm)
1.6~1.7
Number of positions
02P~24P
Material information
Insulation material
HIGH-TEMPERATURE PLASTICS
Insulation material group
IIIa
Flame retardant rating , compliant with UL94
V0
Insulation resistance
≥500MΩ at DC 500V
Conductor material
COPPER ALLOY
Plating of conductor surface
Tin PLATED
Connection data-IEC
Rated voltage (II/2)(V)
600
Rated voltage (III/2) (V)
400
Rated voltage (III/3)(V)
320
Rated impulse voltage (II/2)(KV)
4
Rated impulse voltage (III/2)(KV)
4
Rated impulse voltage (III/3)(KV)
4
Connection data-UL
Rated voltage (UL/CUL Group B)(V)
300
Rated current (UL/CUL Group B)(A)
15
Rated voltage (UL/CUL Group D)(V)
300
Rated current (UL/CUL Group D)(A)
10
Environment & Safety
Finger protection (YES or NO)
YES
Operating temperature. max (°C)
120
Operating temperature. min (°C)
-40
The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
