General information
Short description
Barrier terminals blocks, Panel Mounting
Long description
Barrier terminals blocks, Panel Mounting, Pitch : 25.00mm, M8, 600V, 200A

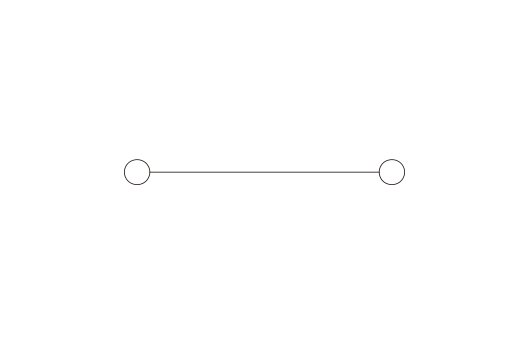

Connection method
Screw connection
Type of locking
Panel Mounting
Number of positions
02P~12P
Material information
Insulation material group
IIIa
Flame retardant rating , compliant with UL94
V2
Insulation resistance
≥1000MΩ at DC 500V
Conductor material
Copper Alloy
Plating of conductor surface
Ni plated
Connection data-IEC
Rated voltage (III/3)(V)
630
Rated impulse voltage (II/2)(KV)
8
Rated impulse voltage (III/2)(KV)
8
Rated impulse voltage (III/3)(KV)
8
Conductor cross section solid. min (mm²)
10
Conductor cross section solid.max (mm²)
50
Conductor cross section stranded. min (mm²)
10
Conductor cross section stranded. max (mm²)
50
2 conductors with same cross section, solid, max (mm²)
50
2 conductors with same cross section, stranded, max (mm²)
50
Philips screwdriver size
PH3
Recommend tightening torque. min (N.m)
3.5
Recommend tightening torque. max (N.m)
4.2
Stripping Length (mm)
20~21
End cover plate required
YES
Connection data-UL
Rated voltage (UL/CUL Group B)(V)
600
Rated current (UL/CUL Group B)(A)
200
Rated voltage (UL/CUL Group C)(V)
600
Rated current (UL/CUL Group C)(A)
200
Min. solid wire connection (AWG) acc. to UL/CUL
8
Max. solid wire connection AWG acc. to UL/CUL
3/0(With Ring terminals)
Min. stranded wire connection AWG acc. to UL/CUL
8
Max. stranded wire connection AWG acc. to UL/CUL
3/0(With Ring terminals)
Environment & Safety
Back of the hand protection (YES or NO)
YES
Finger protection (YES or NO)
NO
Operating temperature. max (°C)
125
Operating temperature. min (°C)
-40
UL Recognized
Wire Range (Group B)(AWG)
3/0(With Ring terminals)
Rated voltage (Group B)(V)
600
Rated current (Group B)(A)
200
Wire Range (Group C)(AWG)
3/0(With Ring terminals)
Rated voltage (Group C)(V)
600
Rated current (Group C)(A)
200
CUL Recognized
Wire Range (Group B)(AWG)
3/0(With Ring terminals)
Rated voltage (Group B)(V)
600
Rated current (Group B)(A)
200
Wire Range (Group C)(AWG)
3/0(With Ring terminals)
Rated voltage (Group C)(V)
600
Rated current (Group C)(A)
200
VDE Approval
DKBC100-1000
Cover
For DKB100N / DKNSPS-009. Using UL94-V2 class of insulation material.
Add
TM-R200
Continuous Flat Marking Labels
Add
The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
