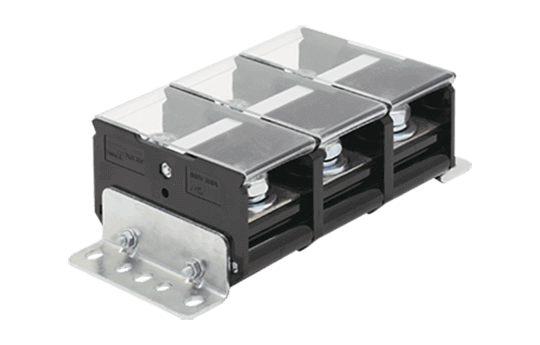

DKB300-XXPCK

NEMA Terminal BlocksPanel Mounting

Pitch : 45.00mm , M10 , 600V , 380A

AccessoriesPDF Download Inquiry Add

  • General information
    • Short description
    • Barrier terminals blocks , Panel Mounting
    • Long description
    • Barrier terminals blocks , Panel Mounting , Pitch : 45.00mm , M10 , 600V , 380A
    • Category
    • Panel Mounting
    • Pitch (mm)
    • 45.00
    • Color
    • Black(default)
    • Connection method
    • Screw connection
    • Type of locking
    • Panel Mounting
    • Length (mm)
    • 45xP+50
    • Width (mm)
    • 90.00
    • Height (mm)
    • 57.0
    • Number of poles
    • 1
    • Level
    • Single level
  • Material information
    • Insulation material
    • PC
    • Insulation material group
    • IIIa
    • Flame retardant rating , compliant with UL94
    • V2
    • Conductor material
    • Copper Alloy
    • Plating of conductor surface
    • Ni plated
  • Connection data-IEC
    • Rated voltage (V)
    • 1000
    • Rated current (A)
    • 415
    • Rated voltage (III/3)(V)
    • 800
    • Rated impulse voltage (II/2)(KV)
    • 8
    • Rated impulse voltage (III/2)(KV)
    • 8
    • Rated impulse voltage (III/3)(KV)
    • 8
    • Conductor cross section solid. min (mm²)
    • 70 or 10(2)
    • Conductor cross section solid.max (mm²)
    • 240 or 70(2)
    • Conductor cross section stranded. min (mm²)
    • 70 or 10(2)
    • Conductor cross section stranded. max (mm²)
    • 240 or 70(2)
    • 2 conductors with same cross section, solid, max (mm²)
    • 240
    • 2 conductors with same cross section, stranded, max (mm²)
    • 240
    • Screw thread
    • M10
    • Slotted screwdriver size (Blade thickness x Width)(mm)
    • 1.0X5.5
    • Rated torque (N.m)
    • 10
    • Recommend tightening torque. min (N.m)
    • 4
    • Recommend tightening torque. max (N.m)
    • 10
    • Stripping Length (mm)
    • 32~33
  • Connection data-UL
    • Rated voltage (UL/CUL Group C)(V)
    • 600
    • Rated current (UL/CUL Group C)(A)
    • 380
    • Rated voltage (UL/CUL Group D)(V)
    • 600
    • Rated current (UL/CUL Group D)(A)
    • 380
    • Min. solid wire connection (AWG) acc. to UL/CUL
    • 3/0 or 6(2)
    • Max. solid wire connection AWG acc. to UL/CUL
    • 500 or 3/0(2)
    • Min. stranded wire connection AWG acc. to UL/CUL
    • 3/0 or 6(2)
    • Max. stranded wire connection AWG acc. to UL/CUL
    • 500 or 3/0(2)
  • Environment & Safety
    • Back of the hand protection (YES or NO)
    • YES
    • Finger protection (YES or NO)
    • NO
    • Operating temperature. max (°C)
    • 125
    • Operating temperature. min (°C)
    • -40
  • VDE Approval
    • Wire Range (mm²)
    • 70~240
    • Rated voltage (V)
    • 1000
    • Rated current (A)
    • 415
  • DKBC300

    Cover

    For DKB300.
    Using UL94-V2 class of insulation material.
  • Add

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
