• Short description
• Panel Mounting, Screw Connection

• Long description
• Panel Mounting, Screw Connection, Pitch：7.00mm, M3, 600V, 15A

• Category
• Panel Mounting

• Pitch (mm)
• 7

• Color

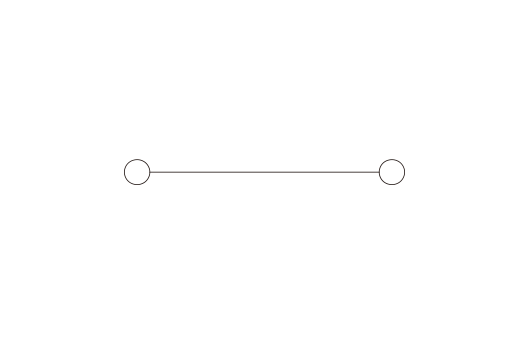

• Refer to drawing

• Connection method
• Screw Connection

• Type of locking
• Panel Mounting

• Length (mm)
• 7.00*P+19.6

• Width (mm)
• 36.5

• Height (mm)
• 28

• Number of poles
• 01P~20P

• Number of positions
• 01P~20P

• Level
• 1

• Connection points
• 2~40

• Insulation material
• PC

• Insulation material group
• Ⅲa

• Flame retardant rating , compliant with UL94
• V2

• Insulation resistance
• ≥1000MΩ at DC 500V

• Conductor material
• COPPER ALLOY

• Plating of conductor surface
• Tin PLATED

• Rated voltage (V)
• 630

• Rated current (A)
• 17.5

• Rated voltage (III/3)(V)
• 630

• Rated impulse voltage (III/3)(KV)
• 8

• Conductor cross section solid. min (mm²)
• 0.2

• Conductor cross section solid.max (mm²)
• 1.5

• Conductor cross section stranded. min (mm²)
• 0.2

• Conductor cross section stranded. max (mm²)
• 1.5

• Screw thread
• M3

• Philips screwdriver size
• PH2

• Rated torque (N.m)
• 0.6~1

• Recommend tightening torque. min (N.m)
• 0.6

• Recommend tightening torque. max (N.m)
• 1

• Stripping Length (mm)
• The stripping length depends on the specification provided by the cablelug manufacturer.

• Mounting rail
• TS-35N、TS-35/15N

• End cover plate required
• YES

• Grounding connections
• NO

• Rated voltage (UL/CUL Group B)(V)
• 600

• Rated current (UL/CUL Group B)(A)
• 15

• Rated voltage (UL/CUL Group C)(V)
• 600

• Rated current (UL/CUL Group C)(A)
• 15

• Rated voltage (UL/CUL Group D)(V)
• 600

• Rated current (UL/CUL Group D)(A)
• 15

• Min. solid wire connection (AWG) acc. to UL/CUL
• 26

• Max. solid wire connection AWG acc. to UL/CUL
• 14

• Min. stranded wire connection AWG acc. to UL/CUL
• 26

• Max. stranded wire connection AWG acc. to UL/CUL
• 14

• Back of the hand protection (YES or NO)
• YES

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 125

• Operating temperature. min (°C)
• -40

• Wire Range (Group B)(AWG)
• 26~14

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 15

• Wire Range (Group C)(AWG)
• 26~14

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 15

• Wire Range (Group D)(AWG)
• 26~14

• Rated voltage (Group D)(V)
• 600

• Rated current (Group D)(A)
• 15

• Wire Range (Group B)(AWG)
• 26~14

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 15

• Wire Range (Group C)(AWG)
• 26~14

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 15

• Wire Ranget (Group D)(AWG)
• 26~14

• Rated voltage (Group D)(V)
• 600

• Rated current (Group D)(A)
• 15
