EC116CVM-XXP

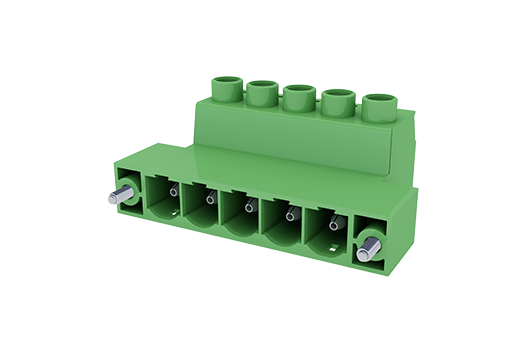

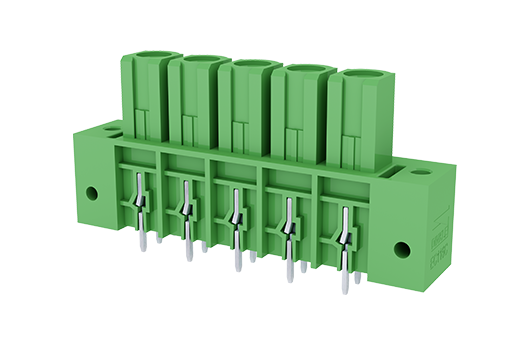

PCB Terminal BlocksPCB Connector-Plug

Pitch : 10.16mm, 300V, 51A

Specification
Approvals
Drawings
Accessories

General information Material information Connection data-IEC Connection data-UL Environment & Safety UL Recognized CUL Recognized

General information
- Short description
- PCB Connector-Plug,Wave soldering
- Long description
- PCB Connector, Pitch : 10.16mm, 300V, 51A
- Category
- PCB Connector – Plug
- Pitch (mm)
- 10.16
- Color
- Green (default)
- Type of locking
- With threaded flange
- Soldering method
- Wave soldering
- Length (mm)
- 10.16*(P-1)+27.92
- Width (mm)
- 13.6
- Height (mm)
- 32.1
- Pin demensions (Thickness x Width)(mm)
- 0.8x1.2
- PCB hole diameter (mm)
- 1.8
- Number of positions
- 02P~10P
- Level
- Single level
Material information
- Insulation material
- PA
- Insulation material group
- I
- Flame retardant rating , compliant with UL94
- V0
- Insulation resistance
- ≧500MΩ at DC 500V
- Conductor material
- COPPER ALLOY
- Plating of conductor surface
- Ag PLATED
Connection data-IEC
- Rated voltage (V)
- 1000
- Rated current (A)
- 76
- Rated voltage (II/2)(V)
- 1000
- Rated voltage (III/2) (V)
- 1000
- Rated voltage (III/3)(V)
- 630
- Rated impulse voltage (II/2)(KV)
- 8
- Rated impulse voltage (III/2)(KV)
- 8
- Rated impulse voltage (III/3)(KV)
- 8
- Tightening torque with flange. max (N.m)
- 0.5
Connection data-UL
- Rated voltage (UL/CUL Group B)(V)
- 300
- Rated current (UL/CUL Group B)(A)
- 51
- Rated voltage (UL/CUL Group C)(V)
- 300
- Rated current (UL/CUL Group C)(A)
- 51
- Rated voltage (UL/CUL Group D)(V)
- 600
- Rated current (UL/CUL Group D)(A)
- 5
Environment & Safety
- Finger protection (YES or NO)
- YES
- Operating temperature. max (°C)
- 120
- Operating temperature. min (°C)
- -40
UL Recognized
- Rated voltage (Group B)(V)
- 300
- Rated current (Group B)(A)
- 51
- Rated voltage (Group C)(V)
- 300
- Rated current (Group C)(A)
- 51
- Rated voltage (Group D)(V)
- 600
- Rated current (Group D)(A)
- 5
CUL Recognized
- Rated voltage (Group B)(V)
- 300
- Rated current (Group B)(A)
- 51
- Rated voltage (Group C)(V)
- 300
- Rated current (Group C)(A)
- 51
- Rated voltage (Group D)(V)
- 600
- Rated current (Group D)(A)
- 5

ECHK2
Keycode
For EC116 Series, EC762 Series, ECH116 Series, ECH762 Series.
Orange color.
Using UL94-V0 class of insulation material.

Add

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
