• Short description

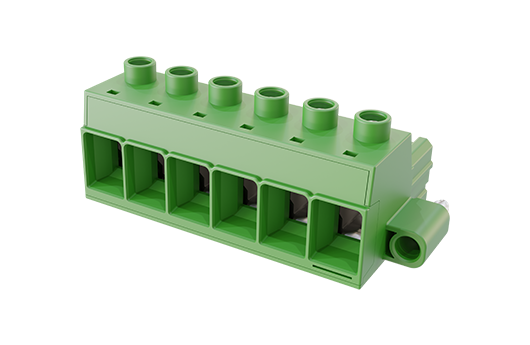

• PCB Connector-Plug, Screw Connection

• Long description
• PCB Connector-Plug, Screw Connection, Pitch :15.00mm, M5, 1000V, 115A

• Category
• PCB Connector – Plug

• Pitch (mm)
• 15

• Color
• Green (default)

• Connection method
• Screw Connection

• Type of locking
• With screw flange

• Length (mm)
• 15.00*(P-1)+39.4

• Width (mm)
• 52

• Height (mm)
• 40

• Number of positions
• 02P~08P

• Level
• Single level

• Connection points
• 2~8

• Insulation material
• PA

• Insulation material group
• I

• Flame retardant rating , compliant with UL94
• V0

• Insulation resistance
• ≥500MΩ at DC 500V

• Conductor material
• HIGH PERFORMANCE COPPER ALLOY

• Plating of conductor surface
• Tin PLATED

• Rated voltage (V)
• 1000

• Rated current (A)
• 125

• Rated voltage (II/2)(V)
• 1000

• Rated voltage (III/2) (V)
• 1000

• Rated voltage (III/3)(V)
• 1000

• Rated impulse voltage (II/2)(KV)
• 8

• Rated impulse voltage (III/2)(KV)
• 8

• Rated impulse voltage (III/3)(KV)
• 8

• Conductor cross section solid. min (mm²)
• 0.5

• Conductor cross section solid.max (mm²)
• 35

• Conductor cross section stranded. min (mm²)
• 0.5

• Conductor cross section stranded. max (mm²)
• 35

• Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
• 1

• Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
• 35

• Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
• 1.5

• Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
• 35

• 2 conductors with same cross section, solid, min (mm²)
• 0.5

• 2 conductors with same cross section, solid, max (mm²)
• 6

• 2 conductors with same cross section, stranded, min (mm²)
• 0.5

• 2 conductors with same cross section, stranded, max (mm²)
• 6

• 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²)
• 0.5

• 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²)
• 6

• 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
• 0.5

• 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
• 6

• Screw thread
• M5

• Slotted screwdriver size (Blade thickness x Width)(mm)
• 1.2x6.5

• Philips screwdriver size
• PH2

• Rated torque (N.m)
• 2.5（0.5~25mm²/AWG 20~4） 4（35mm²/AWG 3~2）

• Tightening torque with flange. max (N.m)
• 0.6

• Stripping Length (mm)
• 19~20

• Rated voltage (UL/CUL Group B)(V)
• 600

• Rated current (UL/CUL Group B)(A)
• 115

• Rated voltage (UL/CUL Group C)(V)
• 600

• Rated current (UL/CUL Group C)(A)
• 115

• Rated voltage (UL/CUL Group D)(V)
• 600

• Rated current (UL/CUL Group D)(A)
• 5

• Rated voltage (UL/CUL Group E)(V)
• 1000

• Rated current (UL/CUL Group E)(A)
• 115

• Min. solid wire connection (AWG) acc. to UL/CUL
• 20

• Max. solid wire connection AWG acc. to UL/CUL
• 2

• Min. stranded wire connection AWG acc. to UL/CUL
• 20

• Max. stranded wire connection AWG acc. to UL/CUL
• 2

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 120

• Operating temperature. min (°C)
• -40
