General information
- Short description

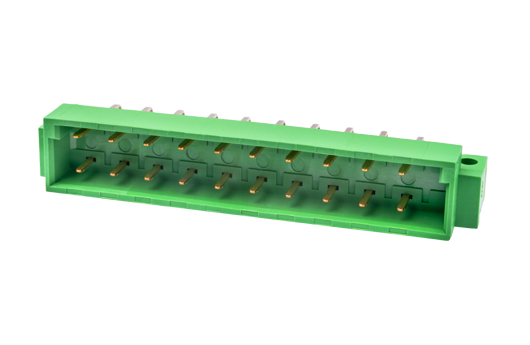

- PCB Connector – Socket, Wave soldering
- Long description
- PCB Connector – Socket, Wave soldering, Pitch:5.08mm, 300V, 6A
- Category
- PCB Connector – Socket
- Pitch (mm)
- 5.08
- Color
- Green (default)
- Type of locking
- With threaded flange
- Soldering method
- Wave Soldering
- Length (mm)
- 5.08*(P/2-1)+17.6
- Width (mm)
- 13
- Height (mm)
- 11
- Pin demensions (Thickness x Width)(mm)
- 0.6x0.6
- PCB hole diameter (mm)
- 1
- Number of positions
- 20P~44P
- Level
- Double level
-
Material information
- Insulation material
- PBT
- Insulation material group
- IIIa
- Flame retardant rating , compliant with UL94
- V0
- Insulation resistance
- ≥1000MΩ at DC 500V
- Conductor material
- COPPER ALLOY
- Plating of conductor surface
- Tin PLATED
-
Connection data-IEC
- Rated voltage (V)
- 320
- Rated current (A)
- 6
- Rated voltage (II/2)(V)
- 320
- Rated voltage (III/2) (V)
- 320
- Rated voltage (III/3)(V)
- 250
- Rated impulse voltage (II/2)(KV)
- 4
- Rated impulse voltage (III/2)(KV)
- 4
- Rated impulse voltage (III/3)(KV)
- 4
- Tightening torque with flange. max (N.m)
- 0.3
-
Connection data-UL
- Rated voltage (UL/CUL Group B)(V)
- 300
- Rated current (UL/CUL Group B)(A)
- 6
- Rated voltage (UL/CUL Group D)(V)
- 300
- Rated current (UL/CUL Group D)(A)
- 6
-
Environment & Safety
- Finger protection (YES or NO)
- NO
- Operating temperature. max (°C)
- 120
- Operating temperature. min (°C)
- -40
No Data
The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
