• Short description

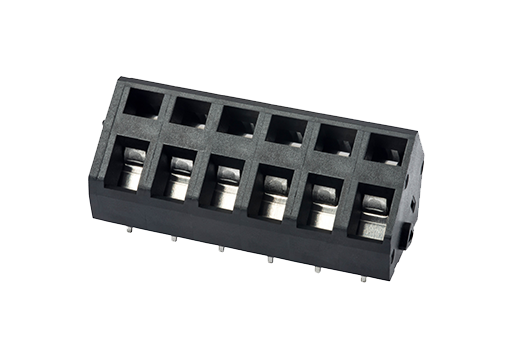

• PCB Terminal Blocks, Spring Clamp Connection

• Long description
• PCB Terminal Blocks, Spring Clamp Connection, Wave soldering, Pitch:5.00mm, 300V, 15A

• Category
• PCB Terminal Blocks

• Pitch (mm)
• 5.00

• Color
• Black (default)

• Connection method
• Spring Clamp Connection

• Type of locking
• Without

• Soldering method
• Reflow Soldering (Temperature condition according to standard IPC/JEDEC J-STD-020E)

• Length (mm)
• 5.00*(P-1)+7.2

• Width (mm)
• 14

• Height (mm)
• 13

• Pin demensions (Thickness x Width)(mm)
• 0.7x0.7

• PCB hole diameter (mm)
• 1.2

• Number of positions
• 02P~12P

• Level
• Single level

• Connection points
• 1

• Insulation material
• HIGH-TEMPERATURE PLASTICS

• Insulation material group
• IIIa

• Flame retardant rating , compliant with UL94
• V2

• Insulation resistance
• ≥500MΩ at DC 500V

• Conductor material
• COPPER ALLOY

• Plating of conductor surface
• Tin PLATED

• MSL
• 4

• Rated voltage (V)
• 320

• Rated current (A)
• 24

• Rated voltage (II/2)(V)
• 320

• Rated voltage (III/2) (V)
• 320

• Rated voltage (III/3)(V)
• 200

• Rated impulse voltage (II/2)(KV)
• 4

• Rated impulse voltage (III/2)(KV)
• 4

• Rated impulse voltage (III/3)(KV)
• 4

• Conductor cross section solid. min (mm²)
• 0.2

• Conductor cross section solid.max (mm²)
• 2.5

• Conductor cross section stranded. min (mm²)
• 0.2

• Conductor cross section stranded. max (mm²)
• 2.5

• Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
• 1.5

• Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
• 1.5

• 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
• 0.5

• 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
• 1

• Slotted screwdriver size (Blade thickness x Width)(mm)
• 0.6x3.5

• Stripping Length (mm)
• 5~6

• Rated voltage (UL/CUL Group B)(V)
• 300

• Rated current (UL/CUL Group B)(A)
• 15

• Rated voltage (UL/CUL Group C)(V)
• 150

• Rated current (UL/CUL Group C)(A)
• 15

• Rated voltage (UL/CUL Group D)(V)
• 300

• Rated current (UL/CUL Group D)(A)
• 10

• Min. solid wire connection (AWG) acc. to UL/CUL
• 28

• Max. solid wire connection AWG acc. to UL/CUL
• 12

• Min. stranded wire connection AWG acc. to UL/CUL
• 28

• Max. stranded wire connection AWG acc. to UL/CUL
• 12

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 120

• Operating temperature. min (°C)
• -40

• Wire Range (Group B)(AWG)
• 28~12

• Rated voltage (Group B)(V)
• 300

• Rated current (Group B)(A)
• 15

• Wire Range (Group C)(AWG)
• 28~12

• Rated voltage (Group C)(V)
• 150

• Rated current (Group C)(A)
• 15

• Wire Range (Group D)(AWG)
• 28~12

• Rated voltage (Group D)(V)
• 300

• Rated current (Group D)(A)
• 10

• Wire Range (Group B)(AWG)
• 28~12

• Rated voltage (Group B)(V)
• 300

• Rated current (Group B)(A)
• 15

• Wire Range (Group C)(AWG)
• 28~12

• Rated voltage (Group C)(V)
• 150

• Rated current (Group C)(A)
• 15

• Wire Ranget (Group D)(AWG)
• 28~12

• Rated voltage (Group D)(V)
• 300

• Rated current (Group D)(A)
• 10
