• Short description

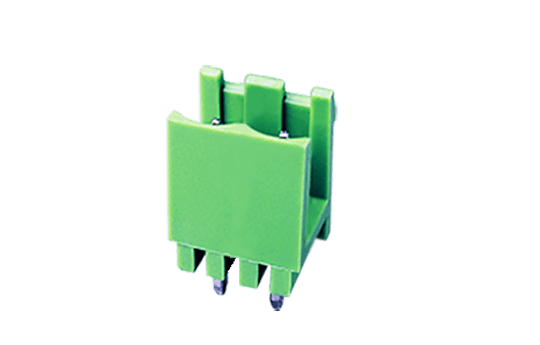

• PCB Connector–Socket, Wave soldering

• Long description
• PCB Connector–Socket, Wave soldering, Pitch: 5.00 mm, 300V, 15A

• Category
• PCB Connector–Socket

• Pitch (mm)
• 5

• Color
• Green (default)

• Type of locking
• Without

• Soldering method
• Wave soldering

• Length (mm)
• 5.00*P

• Width (mm)
• 12

• Height (mm)
• 8.47

• Pin demensions (Thickness x Width)(mm)
• 1.0x1.0

• PCB hole diameter (mm)
• 1.6~1.7

• Number of positions
• 02P

• Level
• Single level

• Insulation material
• PA

• Insulation material group
• I

• Flame retardant rating , compliant with UL94
• V0

• Insulation resistance
• ≥500MΩ at DC 500V

• Conductor material
• COPPER ALLOY

• Plating of conductor surface
• Tin PLATED

• Rated voltage (V)
• 630

• Rated current (A)
• 18

• Rated voltage (II/2)(V)
• 630

• Rated voltage (III/2) (V)
• 320

• Rated voltage (III/3)(V)
• 250

• Rated impulse voltage (II/2)(KV)
• 4

• Rated impulse voltage (III/2)(KV)
• 4

• Rated impulse voltage (III/3)(KV)
• 4

• Rated voltage (UL/CUL Group B)(V)
• 300

• Rated current (UL/CUL Group B)(A)
• 15

• Rated voltage (UL/CUL Group D)(V)
• 300

• Rated current (UL/CUL Group D)(A)
• 10

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 120

• Operating temperature. min (°C)
• -40

• Rated voltage (Group B)(V)
• 300

• Rated current (Group B)(A)
• 15

• Rated voltage (Group D)(V)
• 300

• Rated current (Group D)(A)
• 10

• Wire Range (Group B)(AWG)
• 300

• Rated voltage (Group B)(V)
• 15

• Wire Ranget (Group D)(AWG)
• 300

• Rated voltage (Group D)(V)
• 10

• Rated voltage (V)
• 600

• Rated current (A)
• 18
