• Short description

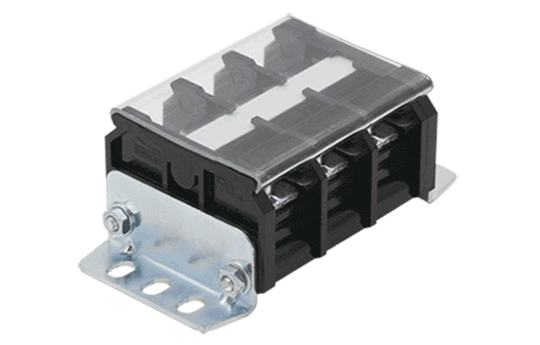

• Barrier terminals blocks, Panel Mounting

• Long description
• Barrier terminals blocks, Panel Mounting, Pitch : 19.00mm, M6, 600V, 65A

• Category
• Panel Mounting

• Pitch (mm)
• 19.00

• Color
• Black (default)

• Connection method
• Screw connection

• Type of locking
• Panel Mounting

• Length (mm)
• 19*P+40

• Width (mm)
• 54

• Height (mm)
• 39.2

• Number of poles
• 1

• Level
• Single level

• Insulation material
• PC

• Insulation material group
• IIIa

• Flame retardant rating , compliant with UL94
• V2

• Conductor material
• Copper Alloy

• Plating of conductor surface
• Ni plated

• Rated voltage (V)
• 800

• Rated current (A)
• 76

• Rated voltage (III/3)(V)
• 630

• Rated impulse voltage (II/2)(KV)
• 8

• Rated impulse voltage (III/2)(KV)
• 8

• Rated impulse voltage (III/3)(KV)
• 8

• Conductor cross section solid. min (mm²)
• 0.75

• Conductor cross section solid.max (mm²)
• 16

• Conductor cross section stranded. min (mm²)
• 0.75

• Conductor cross section stranded. max (mm²)
• 16

• 2 conductors with same cross section, solid, max (mm²)
• 16

• 2 conductors with same cross section, stranded, max (mm²)
• 16

• Screw thread
• M6

• Slotted screwdriver size (Blade thickness x Width)(mm)
• 1.0X5.5

• Philips screwdriver size
• PH3

• Rated torque (N.m)
• 3

• Recommend tightening torque. min (N.m)
• 2.5

• Recommend tightening torque. max (N.m)
• 3

• Stripping Length (mm)
• 17~18

• Rated voltage (UL/CUL Group B)(V)
• 600

• Rated current (UL/CUL Group B)(A)
• 65

• Rated voltage (UL/CUL Group C)(V)
• 600

• Rated current (UL/CUL Group C)(A)
• 65

• Min. solid wire connection (AWG) acc. to UL/CUL
• 18

• Max. solid wire connection AWG acc. to UL/CUL
• 6

• Min. stranded wire connection AWG acc. to UL/CUL
• 18

• Max. stranded wire connection AWG acc. to UL/CUL
• 6

• Back of the hand protection (YES or NO)
• YES

• Finger protection (YES or NO)
• NO

• Operating temperature. max (°C)
• 125

• Operating temperature. min (°C)
• -40

• Wire Range (Group B)(AWG)
• 18~6

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 65

• Wire Range (Group C)(AWG)
• 18~6

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 65

• Wire Range (Group B)(AWG)
• 18~6

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 65

• Wire Range (Group C)(AWG)
• 18~6

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 65
