• Short description

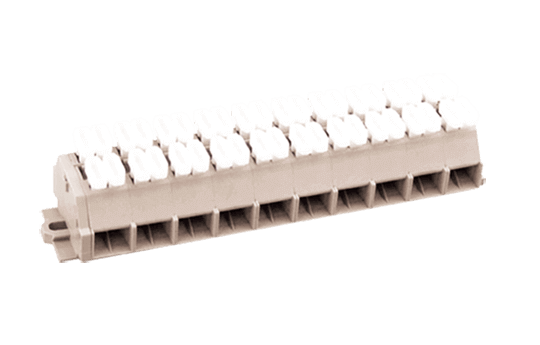

• DIN Rail terminal blocks, Panel mounting terminal blocks

• Long description
• DIN Rail terminal blocks, Panel mounting terminal blocks, 600V, 25A

• Category
• Panel mounting terminal blocks

• Color
• Beige (default)

• Connection method
• Spring Clamp Connection

• Type of locking
• Panel Mounting

• Length (mm)
• 10

• Width (mm)
• 28

• Height (mm)
• 18

• Number of positions
• 01P~10P

• Level
• Single level

• Connection points
• 2

• Insulation material
• PA

• Insulation material group
• I

• Flame retardant rating , compliant with UL94
• V0

• Rated voltage (V)
• 630

• Rated current (A)
• 24

• Rated voltage (III/3)(V)
• 630

• Rated impulse voltage (II/2)(KV)
• 8

• Rated impulse voltage (III/2)(KV)
• 8

• Rated impulse voltage (III/3)(KV)
• 8

• Conductor cross section solid. min (mm²)
• 0.5

• Conductor cross section solid.max (mm²)
• 2.5

• Conductor cross section stranded. min (mm²)
• 0.5

• Conductor cross section stranded. max (mm²)
• 2.5

• Slotted screwdriver size (Blade thickness x Width)(mm)
• 0.4x2.5

• Stripping Length (mm)
• 7~8

• End cover plate required
• YES

• Grounding connections
• NO

• Rated voltage (UL/CUL Group B)(V)
• 600

• Rated current (UL/CUL Group B)(A)
• 25

• Rated voltage (UL/CUL Group C)(V)
• 600

• Rated current (UL/CUL Group C)(A)
• 25

• Min. solid wire connection (AWG) acc. to UL/CUL
• 28

• Max. solid wire connection AWG acc. to UL/CUL
• 12

• Min. stranded wire connection AWG acc. to UL/CUL
• 14

• Max. stranded wire connection AWG acc. to UL/CUL
• 12

• Back of the hand protection (YES or NO)
• YES

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 120

• Operating temperature. min (°C)
• -40
