• Short description

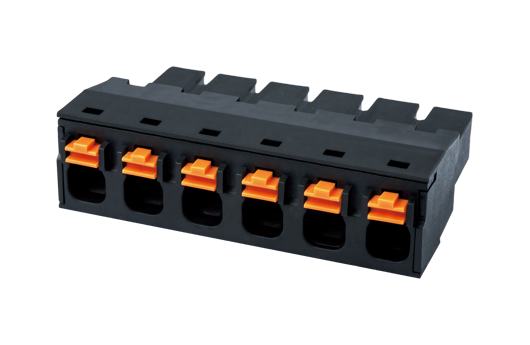

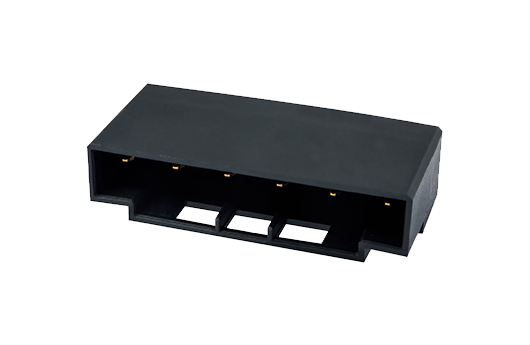

• PCB Connector – Plug

• Long description
• PCB Connector – Plug, Push-in Design, Pitch :7.50mm, 600V, 15A

• Category
• Refer to drawing

• Pitch (mm)
• 7.50

• Color
• Black (default)

• Connection method
• Push in Design

• Type of locking
• With lock flange

• Length (mm)
• 7.50*(P-1)+8.20

• Width (mm)
• 32.4

• Height (mm)
• 17.7

• Number of positions
• 02P~12P

• Level
• Single level

• Insulation material
• PBT

• Insulation material group
• IIIa

• Flame retardant rating , compliant with UL94
• V0

• Insulation resistance
• ≥1000MΩ at DC 500V

• Conductor material
• HIGH PERFORMANCE COPPER ALLOY

• Plating of conductor surface
• Au PLATED

• Rated voltage (V)
• 630

• Rated current (A)
• 18

• Rated voltage (II/2)(V)
• 1000

• Rated voltage (III/2) (V)
• 1000

• Rated voltage (III/3)(V)
• 630

• Rated impulse voltage (II/2)(KV)
• 8

• Rated impulse voltage (III/2)(KV)
• 8

• Rated impulse voltage (III/3)(KV)
• 8

• Conductor cross section solid. min (mm²)
• 0.2

• Conductor cross section solid.max (mm²)
• 2.5

• Conductor cross section stranded. min (mm²)
• 0.2

• Conductor cross section stranded. max (mm²)
• 2.5

• Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
• 2.5

• Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
• 2.5

• 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²)
• 0.5

• 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²)
• 1.5

• 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
• 0.5

• 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
• 1

• Stripping Length (mm)
• 12~13

• Rated voltage (UL/CUL Group B)(V)
• 600

• Rated current (UL/CUL Group B)(A)
• 15

• Rated voltage (UL/CUL Group C)(V)
• 600

• Rated current (UL/CUL Group C)(A)
• 15

• Rated voltage (UL/CUL Group D)(V)
• 600

• Rated current (UL/CUL Group D)(A)
• 5

• Min. solid wire connection (AWG) acc. to UL/CUL
• 20

• Max. solid wire connection AWG acc. to UL/CUL
• 12

• Min. stranded wire connection AWG acc. to UL/CUL
• 20

• Max. stranded wire connection AWG acc. to UL/CUL
• 12

• Back of the hand protection (YES or NO)
• YES

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 120

• Operating temperature. min (°C)
• -40
