General information
Short description

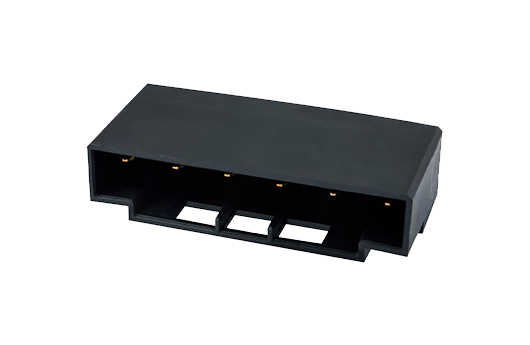

PCB Connector–Socket, Wave soldering
Long description
PCB Connector–Socket, Wave soldering, Pitch:7.50mm, 600V, 15A
Category
PCB Connector–Socket
Type of locking
With lock flange
Soldering method
Wave soldering
Length (mm)
7.50*(P-1)+8.2
Pin demensions (Thickness x Width)(mm)
0.6x0.9
PCB hole diameter (mm)
1.2
Number of positions
02P~12P
Material information
Insulation material group
IIIa
Flame retardant rating , compliant with UL94
V0
Insulation resistance
≥1000MΩ at DC 500V
Conductor material
COPPER ALLOY
Plating of conductor surface
Au PLATED
Connection data-IEC
Rated voltage (II/2)(V)
630
Rated voltage (III/2) (V)
630
Rated voltage (III/3)(V)
400
Rated impulse voltage (II/2)(KV)
6
Rated impulse voltage (III/2)(KV)
6
Rated impulse voltage (III/3)(KV)
6
Connection data-UL
Rated voltage (UL/CUL Group B)(V)
300
Rated current (UL/CUL Group B)(A)
15
Rated voltage (UL/CUL Group C)(V)
300
Rated current (UL/CUL Group C)(A)
15
Rated voltage (UL/CUL Group D)(V)
600
Rated current (UL/CUL Group D)(A)
5
Environment & Safety
Finger protection (YES or NO)
YES
Operating temperature. max (°C)
120
Operating temperature. min (°C)
-40
The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
