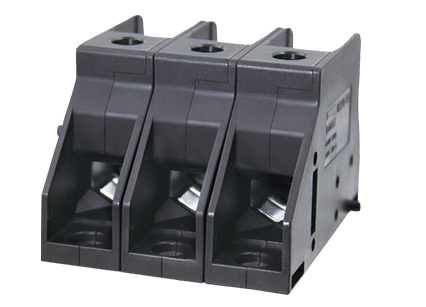

The photo demonstrate a 1~10 pole product
The photo demonstrate a 1~10 pole product
The photo demonstrate a 1~10 pole product
General information
Short description
Barrier terminals blocks, Panel Mounting
Long description
DIN rail terminal blocks, Panel Mounting, Pitch : 17.40 mm, 600V, 115A
Connection method
Screw connection
Type of locking
Panel mounting
Material information
Insulation material group
I
Flame retardant rating , compliant with UL94
V0
Conductor material
Copper Alloy
Plating of conductor surface
Tinned
Connection data-IEC
Rated voltage (II/2)(V)
1000
Rated voltage (III/2) (V)
1000
Rated voltage (III/3)(V)
630
Rated impulse voltage (II/2)(KV)
8
Rated impulse voltage (III/2)(KV)
8
Rated impulse voltage (III/3)(KV)
8
Conductor cross section solid. min (mm²)
16
Conductor cross section solid.max (mm²)
35
Conductor cross section stranded. min (mm²)
16
Conductor cross section stranded. max (mm²)
35
Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
16
Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
16
2 conductors with same cross section, solid, max (mm²)
16
2 conductors with same cross section, stranded, max (mm²)
16
Slotted screwdriver size (Blade thickness x Width)(mm)
1.0x5.5
Philips screwdriver size
PH2
Rated torque (N.m)
Front : 4.5N·mBack : 2N·m
Recommend tightening torque. min (N.m)
2.5
Recommend tightening torque. max (N.m)
3
Stripping Length (mm)
15~16mm
Connection data-UL
Rated voltage (UL/CUL Group B)(V)
600
Rated current (UL/CUL Group B)(A)
115
Rated voltage (UL/CUL Group C)(V)
600
Rated current (UL/CUL Group C)(A)
115
Min. solid wire connection (AWG) acc. to UL/CUL
6
Max. solid wire connection AWG acc. to UL/CUL
2
Min. stranded wire connection AWG acc. to UL/CUL
6
Max. stranded wire connection AWG acc. to UL/CUL
2
Environment & Safety
Back of the hand protection (YES or NO)
YES
Finger protection (YES or NO)
NO
Operating temperature. max (°C)
115
Operating temperature. min (°C)
-40
UL Recognized
Wire Range (Group B)(AWG)
6~2
Rated voltage (Group B)(V)
600
Rated current (Group B)(A)
115
Wire Range (Group C)(AWG)
6~2
Rated voltage (Group C)(V)
600
Rated current (Group C)(A)
115
CUL Recognized
Wire Range (Group B)(AWG)
6~2
Rated voltage (Group B)(V)
600
Rated current (Group B)(A)
115
Wire Range (Group C)(AWG)
6~2
Rated voltage (Group C)(V)
600
Rated current (Group C)(A)
115
The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
