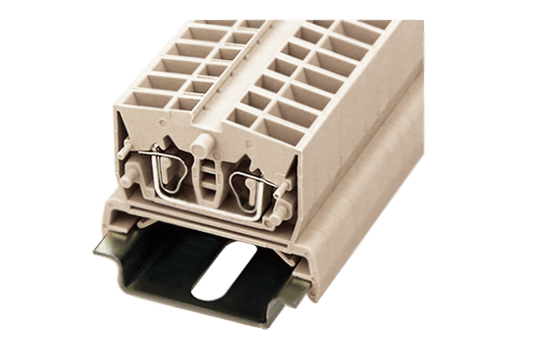

AK2.5PN

DIN Rail Terminal BlocksSpring Clamp Connection

600V, 20A , Grey color

AccessoriesPDF Download Inquiry Add

  • General information
    • Short description
    • DIN Rail terminal blocks , Feed through, Spring Clamp connection
    • Long description
    • DIN Rail terminal blocks , Feed through, Spring Clamp connection, 600V, 20A
    • Category
    • Feed through terminal blocks
    • Color
    • Grey(default)
    • Connection method
    • Spring Clamp Connection
    • Type of locking
    • Rail Mounting

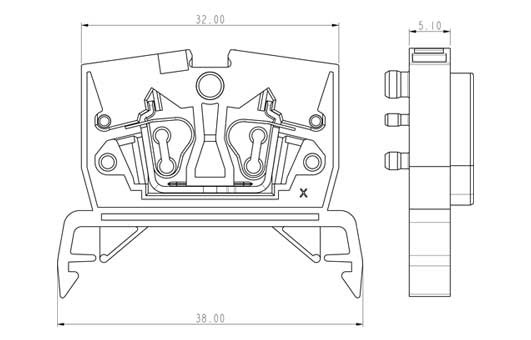

    • Length (mm)
    • 38
    • Width (mm)
    • 5.1
    • Height (mm)
    • 33.9 (TS-35)
    • Level
    • Single level
    • Connection points
    • 2
  • Material information
    • Insulation material
    • PA
    • Insulation material group
    • I
    • Flame retardant rating , compliant with UL94
    • V0
    • Insulation resistance
    • ≥500MΩ at DC 500V
  • Connection data-IEC
    • Rated voltage (V)
    • 800
    • Rated current (A)
    • 24
    • Rated voltage (III/3)(V)
    • 800
    • Rated impulse voltage (III/3)(KV)
    • 8
    • Conductor cross section solid. min (mm²)
    • 0.5
    • Conductor cross section solid.max (mm²)
    • 2.5
    • Conductor cross section stranded. min (mm²)
    • 0.5
    • Conductor cross section stranded. max (mm²)
    • 2.5
    • Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
    • 0.5
    • Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
    • 1.5
    • Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
    • 0.5
    • Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
    • 1.5
    • 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
    • 0.5
    • 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
    • 1
    • Slotted screwdriver size (Blade thickness x Width)(mm)
    • 0.4x2.5
    • Stripping Length (mm)
    • 8~10
    • Mounting rail
    • TS-35
    • End cover plate required
    • YES
    • Grounding connections
    • NO
  • Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 600
    • Rated current (UL/CUL Group B)(A)
    • 20
    • Rated voltage (UL/CUL Group C)(V)
    • 600
    • Rated current (UL/CUL Group C)(A)
    • 20
    • Min. solid wire connection (AWG) acc. to UL/CUL
    • 28
    • Max. solid wire connection AWG acc. to UL/CUL
    • 12
    • Min. stranded wire connection AWG acc. to UL/CUL
    • 28
    • Max. stranded wire connection AWG acc. to UL/CUL
    • 12
  • Environment & Safety
    • Back of the hand protection (YES or NO)
    • YES
    • Finger protection (YES or NO)
    • YES
    • Operating temperature. max (°C)
    • 120
    • Operating temperature. min (°C)
    • -40
  • UL Recognized
    • Wire Range (Group B)(AWG)
    • 28~12
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 20
    • Wire Range (Group C)(AWG)
    • 28~12
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 20
  • CUL Recognized
    • Wire Range (Group B)(AWG)
    • 28~12
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 20
    • Wire Range (Group C)(AWG)
    • 28~12
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 20
  • VDE Approval
    • Wire Range (mm²)
    • 0.5~2.5
    • Rated voltage (V)
    • 800
    • Rated current (A)
    • 24
  • TS-35

    DIN-Rail

    For DP / DP-PE / DK / DK-PE / AK / AK-PE / AK..P series.
    Material is iron.
    Length of 1000mm / 2000mm.
  • Add

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
