• Short description
• DIN rail terminal blocks , Feed through terminal blocks

• Long description
• DIN rail terminal blocks , Feed through terminal blocks , 600V , 60A , Grey(default)

• Category
• Feed through terminal blocks

• Color
• Grey(default)

• Connection method
• Screw connection

• Type of locking
• Rail mounting

• Length (mm)
• 10

• Width (mm)
• 42.9

• Height (mm)
• 50.2

• Level
• Single level

• Connection points
• 2

• Insulation material
• PA

• Insulation material group
• I

• Flame retardant rating , compliant with UL94
• V0

• Rated voltage (V)
• 1000

• Rated current (A)
• 57

• Rated voltage (III/2) (V)
• 1000

• Rated impulse voltage (II/2)(KV)
• 8

• Rated impulse voltage (III/2)(KV)
• 8

• Rated impulse voltage (III/3)(KV)
• 8

• Conductor cross section solid. min (mm²)
• 0.5

• Conductor cross section solid.max (mm²)
• 10

• Conductor cross section stranded. min (mm²)
• 0.5

• Conductor cross section stranded. max (mm²)
• 10

• Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
• 0.5

• Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
• 10

• Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
• 0.5

• Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
• 10

• 2 conductors with same cross section, solid, max (mm²)
• 6

• 2 conductors with same cross section, stranded, max (mm²)
• 6

• 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²)
• 0.5

• 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²)
• 4

• 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
• 0.5

• 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
• 6

• Screw thread
• M4

• Slotted screwdriver size (Blade thickness x Width)(mm)
• 1.0x5.5

• Philips screwdriver size
• PH2

• Rated torque (N.m)
• 1.3

• Stripping Length (mm)
• 12~14

• Mounting rail
• TS-35

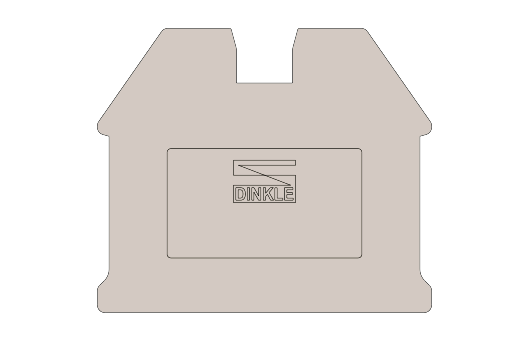

• End cover plate required
• YES

• Grounding connections
• NO

• Rated voltage (UL/CUL Group B)(V)
• 600

• Rated current (UL/CUL Group B)(A)
• 60

• Rated voltage (UL/CUL Group C)(V)
• 600

• Rated current (UL/CUL Group C)(A)
• 60

• Rated voltage (UL/CUL Group D)(V)
• 600

• Rated current (UL/CUL Group D)(A)
• 5

• Min. solid wire connection (AWG) acc. to UL/CUL
• 20

• Max. solid wire connection AWG acc. to UL/CUL
• 6

• Min. stranded wire connection AWG acc. to UL/CUL
• 20

• Max. stranded wire connection AWG acc. to UL/CUL
• 6

• Back of the hand protection (YES or NO)
• YES

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 115

• Operating temperature. min (°C)
• -40

• Wire Range (Group B)(AWG)
• 20~6

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 60

• Wire Range (Group C)(AWG)
• 20~6

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 60

• Wire Range (Group D)(AWG)
• 20~6

• Rated voltage (Group D)(V)
• 600

• Rated current (Group D)(A)
• 5

• Wire Range (Group B)(AWG)
• 20~6

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 60

• Wire Range (Group C)(AWG)
• 20~6

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 60

• Wire Ranget (Group D)(AWG)
• 20~6

• Rated voltage (Group D)(V)
• 600

• Rated current (Group D)(A)
• 5

• Wire Range (mm²)
• 0.5~10

• Rated voltage (V)
• 1000

• Rated current (A)
• 57

• Wire Range (mm²)
• 0.5~10

• Rated voltage (V)
• 630

• Rated current (A)
• 57
