DK16N

DIN Rail Terminal BlocksScrew Connection

M5, 600V, 100A, Grey(default)

AccessoriesPDF Download Inquiry Add

  • General information
    • Short description
    • DIN rail terminal blocks , Feed through terminal blocks
    • Long description
    • DIN rail terminal blocks , Feed through terminal blocks , 600V , 100A , Grey(default)
    • Category
    • Feed through terminal blocks
    • Color
    • Grey(default)
    • Connection method
    • Screw connection
    • Type of locking
    • Rail mounting
    • Length (mm)
    • 12
    • Width (mm)
    • 48.3
    • Height (mm)
    • 50.5
    • Level
    • Single level
    • Connection points
    • 2
  • Material information
    • Insulation material
    • PA
    • Insulation material group
    • I
    • Flame retardant rating , compliant with UL94
    • V0
  • Connection data-IEC
    • Rated voltage (V)
    • 1000
    • Rated current (A)
    • 76
    • Rated voltage (III/2) (V)
    • 1000
    • Rated impulse voltage (II/2)(KV)
    • 8
    • Rated impulse voltage (III/2)(KV)
    • 8
    • Rated impulse voltage (III/3)(KV)
    • 8
    • Conductor cross section solid. min (mm²)
    • 1.5
    • Conductor cross section solid.max (mm²)
    • 16
    • Conductor cross section stranded. min (mm²)
    • 1.5
    • Conductor cross section stranded. max (mm²)
    • 16
    • Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
    • 1.5
    • Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
    • 16
    • Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
    • 1.5
    • Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
    • 16
    • 2 conductors with same cross section, solid, max (mm²)
    • 6
    • 2 conductors with same cross section, stranded, max (mm²)
    • 6
    • 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²)
    • 1.5
    • 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²)
    • 10
    • 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
    • 1.5
    • 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
    • 10
    • Screw thread
    • M5
    • Slotted screwdriver size (Blade thickness x Width)(mm)
    • 1.0x5.5
    • Philips screwdriver size
    • PH2
    • Rated torque (N.m)
    • 3.4
    • Stripping Length (mm)
    • 14~16
    • Mounting rail
    • TS-35/TS-32
    • End cover plate required
    • YES
    • Grounding connections
    • NO
  • Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 600
    • Rated current (UL/CUL Group B)(A)
    • 100
    • Rated voltage (UL/CUL Group C)(V)
    • 600
    • Rated current (UL/CUL Group C)(A)
    • 100
    • Min. solid wire connection (AWG) acc. to UL/CUL
    • 14
    • Max. solid wire connection AWG acc. to UL/CUL
    • 3
    • Min. stranded wire connection AWG acc. to UL/CUL
    • 14
    • Max. stranded wire connection AWG acc. to UL/CUL
    • 3
  • Environment & Safety
    • Back of the hand protection (YES or NO)
    • YES
    • Finger protection (YES or NO)
    • YES
    • Operating temperature. max (°C)
    • 120
    • Operating temperature. min (°C)
    • -40
  • UL Recognized
    • Wire Range (Group B)(AWG)
    • 14~3
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 100
    • Wire Range (Group C)(AWG)
    • 14~3
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 100
  • CUL Recognized
    • Wire Range (Group B)(AWG)
    • 14~3
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 100
    • Wire Range (Group C)(AWG)
    • 14~3
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 100
  • VDE Approval
    • Wire Range (mm²)
    • 1.5~16
    • Rated voltage (V)
    • 1000
    • Rated current (A)
    • 76
  • DSS16N-02PN

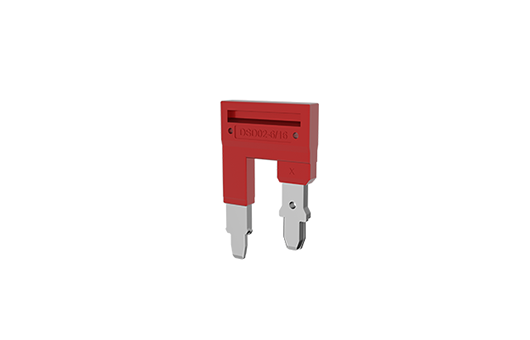

    Plug-in bridge

    For DK16N.
    Red color.
    Using UL94-V0 class of insulation material.
  • Add
  • TS-35N

    DIN-Rail

    For DP / DP-PE / DK / DK-PE / AK / AK-PE / AK..P series.
    Material is iron.
    Length of 1000mm / 2000mm.
  • Add
  • DKNSPS-004

    Partition Plate

    For DK35N / DK35H.
    Grey color.
    Using UL94-V0 class of insulation material.
  • Add
  • CSC-16XXP

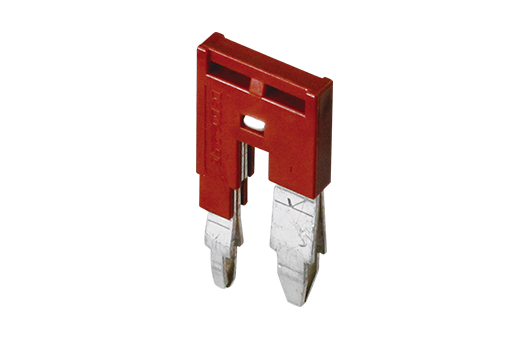

    Insertion Bridge

    For DK16H / DK16N.
    Grey color.
    Using UL94-V0 class of insulation material.
  • Add
  • TM50W

    Making Label

    For
    BEST APPLICATION:
    DP10, DP10-TN, DP10-PE, DP10-TN-PE

    AVAILABLE APPLICATION:
    DP16, DP16-PE

    White color.
    Using UL94-V2 class of insulation material.
  • Add

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
