DK2.5N-TR

DIN Rail Terminal BlocksScrew Connection

M2.5, 600V, 20A, Beige (default)

AccessoriesPDF Download Inquiry Add

CAD data

  • General information
    • Short description
    • DIN rail terminal blocks, Feed through terminal blocks
    • Long description
    • DIN rail terminal blocks, Feed through terminal blocks, 600V, 20A, Beige (default)
    • Category
    • Feed through terminal blocks
    • Color
    • Beige (default)
    • Connection method
    • Screw connection
    • Type of locking
    • Rail mounting
    • Length (mm)
    • 54.8
    • Width (mm)
    • 5.1
    • Height (mm)
    • 48.5
    • Level
    • Double level
    • Connection points
    • 4
  • Material information
    • Insulation material
    • PA
    • Insulation material group
    • I
    • Flame retardant rating , compliant with UL94
    • V0
    • Insulation resistance
    • ≥500MΩ at DC 500V
  • Connection data-IEC
    • Rated voltage (V)
    • 1000
    • Rated current (A)
    • 24
    • Rated voltage (III/3)(V)
    • 1000
    • Rated impulse voltage (III/3)(KV)
    • 8
    • Conductor cross section solid. min (mm²)
    • 0.14
    • Conductor cross section solid.max (mm²)
    • 4
    • Conductor cross section stranded. min (mm²)
    • 0.14
    • Conductor cross section stranded. max (mm²)
    • 2.5
    • Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
    • 0.25
    • Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
    • 1.5
    • Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
    • 0.25
    • Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
    • 1
    • 2 conductors with same cross section, solid, min (mm²)
    • 0.25
    • 2 conductors with same cross section, solid, max (mm²)
    • 1.5
    • 2 conductors with same cross section, stranded, min (mm²)
    • 0.25
    • 2 conductors with same cross section, stranded, max (mm²)
    • 1.5
    • 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²)
    • 0.25
    • 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²)
    • 1
    • 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
    • 0.5
    • 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
    • 1
    • Screw thread
    • M2.5
    • Slotted screwdriver size (Blade thickness x Width)(mm)
    • 0.6x3.5
    • Philips screwdriver size
    • PH0
    • Rated torque (N.m)
    • 0.4
    • Stripping Length (mm)
    • 9~11
    • Mounting rail
    • TS-35
    • End cover plate required
    • YES
    • Grounding connections
    • NO
  • Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 600
    • Rated current (UL/CUL Group B)(A)
    • 20
    • Rated voltage (UL/CUL Group C)(V)
    • 600
    • Rated current (UL/CUL Group C)(A)
    • 20
    • Min. solid wire connection (AWG) acc. to UL/CUL
    • 22
    • Max. solid wire connection AWG acc. to UL/CUL
    • 12
    • Min. stranded wire connection AWG acc. to UL/CUL
    • 22
    • Max. stranded wire connection AWG acc. to UL/CUL
    • 12
  • Environment & Safety
    • Back of the hand protection (YES or NO)
    • YES
    • Finger protection (YES or NO)
    • YES
    • Operating temperature. max (°C)
    • 120
    • Operating temperature. min (°C)
    • -40
  • UL Recognized
    • Wire Range (Group B)(AWG)
    • 22~12
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 20
    • Wire Range (Group C)(AWG)
    • 22~12
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 20
  • CUL Recognized
    • Wire Range (Group B)(AWG)
    • 22~12
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 20
    • Wire Range (Group C)(AWG)
    • 22~12
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 20
  • VDE Approval
    • Wire Range (mm²)
    • 0.14~2.5
    • Rated voltage (V)
    • 1000
    • Rated current (A)
    • 24
  • DSS2.5N-XXP

    Plug-in bridge

    For DK2.5N, DK2.5N-TN, DK2.5N-TR, DKK2.5N, DKK2.5N-PV, DKK2.5N-L2PE, DKK2.5N-PE, DKK2.5N-TP, DKK2.5N-TG, DKK2.5N-CP, DK2.5N-3L Series
    Red color.
    Using UL94-V0 class of insulation material.
  • Add
  • DKNSPS-001

    Partition Plate

    For DK2.5N, DK4N, DK2.5N-TN, DK4N-TN, DK10N-TN, DK2.5N-TR, DK4N-TR, DKK2.5N Series, DKK4N Series.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
  • TS-35

    DIN-Rail

    For DP / DK..N / DK.. / AK / DKB / DKU.. /DKM.. series.
    Material is iron.
    Length of 1000mm / 2000mm.
  • Add
  • TM47W

    Marking Label

    For
    BEST APPLICATION:
    DP2.5N Series, DPH2.5, DPH2.5-PE, DP2.5N-3L-SPE, AK2.5 Series, DK2.5N Series, DKK2.5N Series, DK2.5N-3L Series

    AVAILABLE APPLICATION:
    DKES1.5, DK2.5-PE

    White color.
    Using UL94-V0 class of insulation material.
  • Add
  • CSC-2.5XXPN

    Insertion Bridge

    For DK2.5N Series, DKK2.5N Series, DK2.5N-3L Series.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add

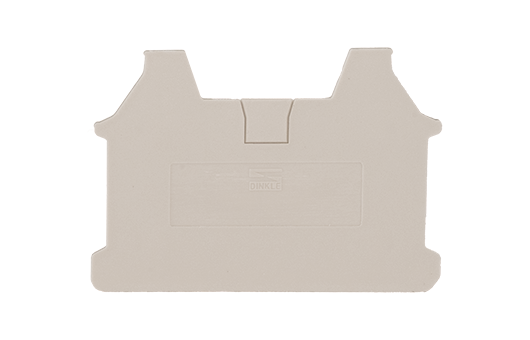

  • DK2.5NC-TR

    End Cover

    For DK2.5N-TR / DK4N-TR
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
  • 0175L1

    Lever

    For DK2.5N、DK2.5N-TN、DK2.5N-TR、DKK2.5N.
    Orange color.
    Using UL94-V0 class of insulation material.
  • Add
  • 0175-T002

    Test plug

    For DK2.5N, DK2.5N-TN, DK2.5N-TR, DKK2.5N, DKK2.5N-PV.
    Red color.
    Using UL94-V0 class of insulation material.
  • Add
  • TM-R200

    Continuous Flat Marking Labels

  • Add
  • DSD02-2.5/6

    Plug-in bridge

    For DK2.5N, DK6N, DK2.5N-TN, DK6N-TN, DK2.5N-TR
    Red color.
    Using UL94-V0 class of insulation material.
  • Add

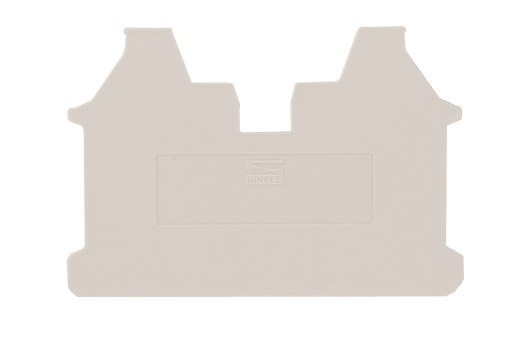

  • DK2.5NCA-TR

    End Cover

    For DK2.5N-TR, DK4N-TR
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
  • DSD02-2.5XXXT

    Plug-in bridge

    For DK2.5N Series, DKK2.5N Series, DK2.5N-3L Series
    Red color.
    Using UL94-V0 class of insulation material.
  • Add
