• Short description
• DIN rail terminal blocks, Fuse terminal blocks

• Long description

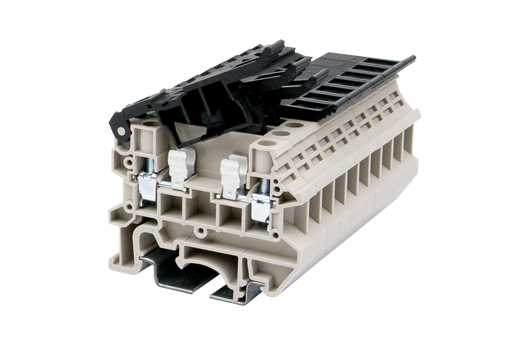

• Fuse terminal blocks, Screw Connection, Width：8mm, M3, 600V, 12A

• Category
• Fuse terminal blocks

• Color
• Beige (default)

• Connection method
• Screw connection

• Type of locking
• Rail mounting

• Length (mm)
• 53.3

• Width (mm)
• 8

• Height (mm)
• 46.3

• Number of positions
• ≥1P

• Level
• Single level

• Connection points
• 2

• Insulation material
• PA

• Insulation material group
• I

• Flame retardant rating , compliant with UL94
• V0

• Insulation resistance
• ≥500MΩ at DC 500V

• Rated voltage (V)
• 800

• Rated current (A)
• 12

• Rated voltage (III/3)(V)
• 800

• Rated impulse voltage (II/2)(KV)
• 6

• Rated impulse voltage (III/2)(KV)
• 6

• Rated impulse voltage (III/3)(KV)
• 6

• Conductor cross section solid. min (mm²)
• 0.14

• Conductor cross section solid.max (mm²)
• 4

• Conductor cross section stranded. min (mm²)
• 0.14

• Conductor cross section stranded. max (mm²)
• 4

• Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
• 4

• Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
• 4

• 2 conductors with same cross section, solid, min (mm²)
• 0.14

• 2 conductors with same cross section, solid, max (mm²)
• 1.5

• 2 conductors with same cross section, stranded, min (mm²)
• 0.14

• 2 conductors with same cross section, stranded, max (mm²)
• 1.5

• 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²)
• 0.5

• 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²)
• 1.5

• 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
• 0.5

• 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
• 1.5

• Screw thread
• M3

• Slotted screwdriver size (Blade thickness x Width)(mm)
• 0.6x3.5

• Philips screwdriver size
• PH1

• Rated torque (N.m)
• 0.53

• Stripping Length (mm)
• 8~10

• Mounting rail
• TS-35

• End cover plate required
• YES

• Grounding connections
• NO

• Rated voltage (UL/CUL Group B)(V)
• 600

• Rated current (UL/CUL Group B)(A)
• 12

• Rated voltage (UL/CUL Group C)(V)
• 600

• Rated current (UL/CUL Group C)(A)
• 12

• Min. solid wire connection (AWG) acc. to UL/CUL
• 22

• Max. solid wire connection AWG acc. to UL/CUL
• 10

• Min. stranded wire connection AWG acc. to UL/CUL
• 22

• Max. stranded wire connection AWG acc. to UL/CUL
• 10

• Back of the hand protection (YES or NO)
• YES

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 120

• Operating temperature. min (°C)
• -40

• Wire Range (Group B)(AWG)
• 22~10

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 12

• Wire Range (Group C)(AWG)
• 22~10

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 12

• Wire Range (Group B)(AWG)
• 22~10

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 12

• Wire Range (Group C)(AWG)
• 22~10

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 12
