DK6N-PE

DIN Rail Terminal BlocksScrew Connection

M4, Green-Yellow (default)

AccessoriesPDF Download Inquiry Add

CAD data

  • General information
    • Short description
    • DIN rail terminal blocks, Grounding terminal blocks
    • Long description
    • DIN rail terminal blocks, Grounding terminal blocks, Green-Yellow (default)
    • Category
    • Grounding terminal blocks
    • Color
    • Green-Yellow (default)
    • Connection method
    • Screw connection
    • Type of locking
    • Rail mounting
    • Length (mm)
    • 47.1
    • Width (mm)
    • 8
    • Height (mm)
    • 45.7
    • Level
    • Single level
    • Connection points
    • 2
  • Material information
    • Insulation material
    • PA
    • Insulation material group
    • I
    • Flame retardant rating , compliant with UL94
    • V0
    • Insulation resistance
    • ≥500MΩ at DC 500V
  • Connection data-IEC
    • Rated impulse voltage (III/3)(KV)
    • 8
    • Conductor cross section solid. min (mm²)
    • 0.2
    • Conductor cross section solid.max (mm²)
    • 10
    • Conductor cross section stranded. min (mm²)
    • 0.2
    • Conductor cross section stranded. max (mm²)
    • 6
    • Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
    • 0.25
    • Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
    • 6
    • Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
    • 0.25
    • Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
    • 4
    • 2 conductors with same cross section, solid, min (mm²)
    • 0.25
    • 2 conductors with same cross section, solid, max (mm²)
    • 4
    • 2 conductors with same cross section, stranded, min (mm²)
    • 0.25
    • 2 conductors with same cross section, stranded, max (mm²)
    • 4
    • 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²)
    • 0.25
    • 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²)
    • 4
    • 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
    • 0.5
    • 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
    • 4
    • Screw thread
    • M4
    • Slotted screwdriver size (Blade thickness x Width)(mm)
    • 0.8x4.0
    • Philips screwdriver size
    • PH1
    • Rated torque (N.m)
    • 1.2
    • Stripping Length (mm)
    • 11~13
    • Mounting rail
    • TS-35
    • End cover plate required
    • YES
    • Grounding connections
    • YES
  • Connection data-UL
    • Min. solid wire connection (AWG) acc. to UL/CUL
    • 20
    • Max. solid wire connection AWG acc. to UL/CUL
    • 8
    • Min. stranded wire connection AWG acc. to UL/CUL
    • 20
    • Max. stranded wire connection AWG acc. to UL/CUL
    • 8
  • Environment & Safety
    • Back of the hand protection (YES or NO)
    • YES
    • Finger protection (YES or NO)
    • YES
    • Operating temperature. max (°C)
    • 110
    • Operating temperature. min (°C)
    • -40
  • UL Recognized
    • Wire Range (Group B)(AWG)
    • 20~8
    • Wire Range (Group C)(AWG)
    • 20~8
  • CUL Recognized
    • Wire Range (Group B)(AWG)
    • 20~8
    • Wire Range (Group C)(AWG)
    • 20~8
  • VDE Approval
    • Wire Range (mm²)
    • 0.2~6
  • TS-35

    DIN-Rail

    For DP / DK..N / DK.. / AK / DKB / DKU.. /DKM.. series.
    Material is iron.
    Length of 1000mm / 2000mm.
  • Add
  • TM49W

    Marking Label

    For
    BEST APPLICATION:
    DP6N, DP6N-PE, DP6N-TN, DP6N-TN-PE, DP6N-TR, DP6N-TR-PE, DP6N-TFV, DP6N-TFVLXX, DPTD6N, DPTL6N, DPH6, DPH6-PE, AK6, AK6-PE, AK6-TN, AK6-TN-PE, AK6-TR, AK6-TR-PE, SS7N, DKK4-TF, DK4N-TF, DK4N-TFL, DK6N, DK6N-PE, DK6N-TN, DKTD6N, DK6S,
    PM6N-XXP, SS4N, SS5N, SS11, SS13

    White color.
    Using UL94-V0 class of insulation material.
  • Add
  • DK6NC-PE

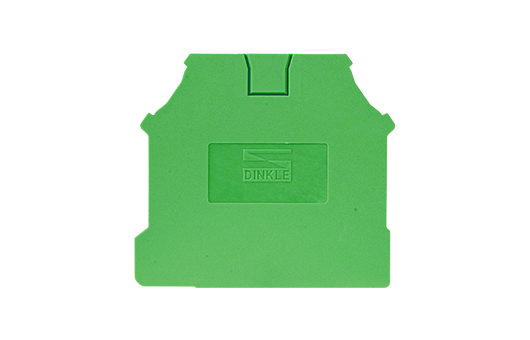

    End Cover

    For DK6N-PE
    Green (default)
    Using UL94-V0 class of insulation material.
  • Add
  • TM-R200

    Continuous Flat Marking Labels

  • Add

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
