General information
Material information
Connection data-IEC
Connection data-UL
Environment & Safety
UL Recognized
CUL Recognized
VDE Approval
-
General information
- Short description
- Feed-Through single level, Screw Connection
- Long description
- Feed-Through single level, Screw Connection, Width: 45.00mm, M10, 600V, 380A
- Category
- Feed-Through single level
- Color
- Refer to drawing
- Connection method
- Screw connection
- Type of locking
- Rail mounting
- Length (mm)
- 90
- Width (mm)
- 45
- Height (mm)
- Refer to drawing
- Level
- Single level

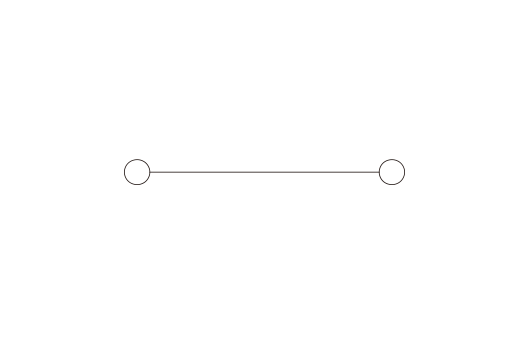

- Connection points
- 2
-
Material information
- Insulation material
- PC
- Insulation material group
- IIIa
- Flame retardant rating , compliant with UL94
- V2
- Insulation resistance
- ≥1000MΩ at DC 500V
- Conductor material
- COPPER ALLOY
- Plating of conductor surface
- Ni PLATED
-
Connection data-IEC
- Rated voltage (V)
- 1000
- Rated current (A)
- 415
- Rated voltage (III/3)(V)
- 1000
- Rated impulse voltage (III/3)(KV)
- 8
- Screw thread
- M10
- Philips screwdriver size
- PH4
- Rated torque (N.m)
- 10
- Stripping Length (mm)
- The stripping length depends on the specification provided by the cable lug manufacturer
- Mounting rail
- TS-35N、TS-35/15N
- Grounding connections
- NO
-
Connection data-UL
- Rated voltage (UL/CUL Group B)(V)
- 600
- Rated current (UL/CUL Group B)(A)
- 380
- Rated voltage (UL/CUL Group C)(V)
- 600
- Rated current (UL/CUL Group C)(A)
- 380
- Min. solid wire connection (AWG) acc. to UL/CUL
- 3/0(With Ring terminals) 2X6 (With Ring terminals)
- Max. solid wire connection AWG acc. to UL/CUL
- 500(kcmil)(With Ring terminals) 2X3/0(With Ring terminals)
- Min. stranded wire connection AWG acc. to UL/CUL
- 3/0(With Ring terminals) 2X6 (With Ring terminals)
- Max. stranded wire connection AWG acc. to UL/CUL
- 500(kcmil)(With Ring terminals) 2X3/0(With Ring terminals)
-
Environment & Safety
- Back of the hand protection (YES or NO)
- YES
- Finger protection (YES or NO)
- NO
- Operating temperature. max (°C)
- 125
- Operating temperature. min (°C)
- -40
-
UL Recognized
- Wire Range (Group B)(AWG)
- 3/0~500kcmil 2x(6~3/0)
- Rated voltage (Group B)(V)
- 600
- Rated current (Group B)(A)
- 380
- Wire Range (Group C)(AWG)
- 3/0~500kcmil 2x(6~3/0)
- Rated voltage (Group C)(V)
- 600
- Rated current (Group C)(A)
- 380
-
CUL Recognized
- Wire Range (Group B)(AWG)
- 3/0~500kcmil 2x(6~3/0)
- Rated voltage (Group B)(V)
- 600
- Rated current (Group B)(A)
- 380
- Wire Range (Group C)(AWG)
- 3/0~500kcmil 2x(6~3/0)
- Rated voltage (Group C)(V)
- 600
- Rated current (Group C)(A)
- 380
-
VDE Approval
- Wire Range (mm²)
- 70~240
- Rated voltage (V)
- 1000
- Rated current (A)
- 415
-
TS-35/15
DIN-Rail For DK / DK-PE series.
Material is iron.
Length of 1000mm / 2000mm. - Add
-
TS-35
DIN-Rail For DP / DK..N / DK.. / AK / DKB / DKU.. /DKM.. series.
Material is iron.
Length of 1000mm / 2000mm. - Add
-
SS9A
End Bracket For TS-35, TS-35/15 rails.
Material is steel then galvanized on the surface. - Add
-
SS9B
End Bracket For TS-35, TS-35/15 rails.
Material is steel then galvanized on the surface. - Add
-
SS9C
End Bracket For TS-35, TS-35/15 rails.
Material is steel then galvanized on the surface. - Add
-
SS10
End Bracket For TS-35 / TS-35A railsBlack colorUsing UL94-V0 class of insulation material - Add
-
DKBC300
Cover For DKB300.
Using UL94-V2 class of insulation material. - Add
-
DKBK300
Label For DKB300.
White color.
Using UL94-V2 class of insulation material. - Add
-
TM-R200
Continuous Flat Marking Labels - Add
The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
