• Short description
• DIN Rail terminal blocks, Screw connection

• Long description
• Feed-Through single level, Screw Connection, Width：14mm, M5, 600V, 60A

• Category
• Rail mounting terminal blocks

• Color
• Black (default)

• Connection method
• Screw connection

• Type of locking
• Rail mounting

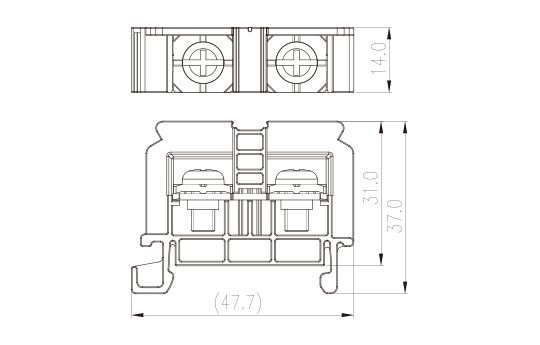

• Length (mm)
• 47.7

• Width (mm)
• 14

• Height (mm)
• 37

• Level
• Single level

• Connection points
• 2

• Insulation material
• PC

• Insulation material group
• IIIa

• Flame retardant rating , compliant with UL94
• V2

• Insulation resistance
• ≥1000MΩ at DC 500V

• Conductor material
• Copper Alloy

• Plating of conductor surface
• Tin PLATED

• Rated voltage (V)
• 630

• Rated current (A)
• 57/76 (with Fork Terminal)

• Rated voltage (III/3)(V)
• 630

• Rated impulse voltage (II/2)(KV)
• 8

• Rated impulse voltage (III/2)(KV)
• 8

• Rated impulse voltage (III/3)(KV)
• 8

• Conductor cross section solid. min (mm²)
• 0.5

• Conductor cross section solid.max (mm²)
• 10

• Conductor cross section stranded. min (mm²)
• 0.5

• Conductor cross section stranded. max (mm²)
• 10

• 2 conductors with same cross section, solid, max (mm²)
• 10

• 2 conductors with same cross section, stranded, max (mm²)
• 10

• Screw thread
• M5

• Philips screwdriver size
• PH2

• Rated torque (N.m)
• 2.0~2.4

• Recommend tightening torque. min (N.m)
• 2

• Recommend tightening torque. max (N.m)
• 2.4

• Stripping Length (mm)
• The stripping length depends on the specification provided by the cablelug manufacturer.

• Mounting rail
• TS-35N、TS-35/15N

• End cover plate required
• YES

• Grounding connections
• NO

• Rated voltage (UL/CUL Group B)(V)
• 600

• Rated current (UL/CUL Group B)(A)
• 50/60 (with Fork Terminal)

• Rated voltage (UL/CUL Group C)(V)
• 600

• Rated current (UL/CUL Group C)(A)
• 50/60 (with Fork Terminal)

• Rated voltage (UL/CUL Group D)(V)
• 600

• Rated current (UL/CUL Group D)(A)
• 0/60 (with Fork Terminal)

• Min. solid wire connection (AWG) acc. to UL/CUL
• 20

• Max. solid wire connection AWG acc. to UL/CUL
• 6

• Min. stranded wire connection AWG acc. to UL/CUL
• 20

• Max. stranded wire connection AWG acc. to UL/CUL
• 6

• Back of the hand protection (YES or NO)
• YES

• Finger protection (YES or NO)
• NO

• Operating temperature. max (°C)
• 125

• Operating temperature. min (°C)
• -40

• Wire Range (Group B)(AWG)
• 22~10

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 60

• Wire Range (Group C)(AWG)
• 20~6

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 60

• Wire Range (Group D)(AWG)
• 20~6

• Rated voltage (Group D)(V)
• 600

• Rated current (Group D)(A)
• 60

• Wire Range (Group B)(AWG)
• 20~6

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 60

• Wire Range (Group C)(AWG)
• 20~6

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 60

• Wire Ranget (Group D)(AWG)
• 20~6

• Rated voltage (Group D)(V)
• 600

• Rated current (Group D)(A)
• 60
