DPD6-P002

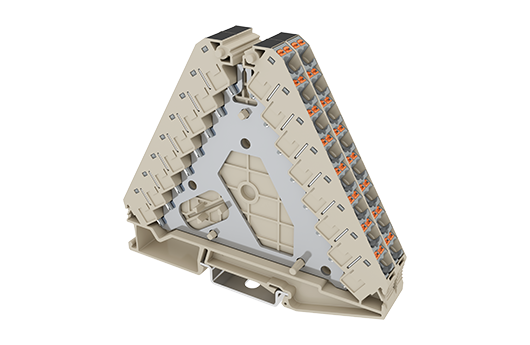

DIN Rail Terminal BlocksPush-in Design

AccessoriesPDF Download Inquiry Add

CAD data

General information Material information Connection data-IEC UL Recognized CUL Recognized
  •
    General information
    • Short description
    • Potential distributors Terminal Block, Push-in Design
    • Long description
    • Potential distributors Terminal Block, Push-in Design, Width: 8.3mm, 300V, 15A
    • Category
    • Potential distributors Terminal Block
    • Color
    • Beige (default)
    • Connection method
    • Push-in Design
    • Length (mm)
    • 100
    • Width (mm)
    • 8.3
    • Height (mm)
    • 86
    • Level
    • Eight level
    • Connection points
    • 32
  •
    Material information
    • Insulation material
    • PA
    • Insulation material group
    • I
    • Flame retardant rating , compliant with UL94
    • V0
    • Insulation resistance
    • ≥500MΩ at DC 500V
  •
    Connection data-IEC
    • Rated voltage (V)
    • 250
    • Rated current (A)
    • 17.5
    • Rated voltage (III/3)(V)
    • 250
    • Rated impulse voltage (III/3)(KV)
    • 4
    • Conductor cross section solid. min (mm²)
    • 0.14
    • Conductor cross section solid.max (mm²)
    • 2.5
    • Conductor cross section stranded. min (mm²)
    • 0.14
    • Conductor cross section stranded. max (mm²)
    • 2.5
    • Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
    • 0.25
    • Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
    • 1.5
    • Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
    • 0.25
    • Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
    • 1.5
    • Mounting rail
    • TS-35
  •
    UL Recognized
    • Wire Range (Group B)(AWG)
    • 26-14
    • Rated voltage (Group B)(V)
    • 300
    • Rated current (Group B)(A)
    • 15
    • Wire Range (Group D)(AWG)
    • 26-14
    • Rated voltage (Group D)(V)
    • 300
    • Rated current (Group D)(A)
    • 15
  •
    CUL Recognized
    • Wire Range (Group B)(AWG)
    • 26-14
    • Rated voltage (Group B)(V)
    • 300
    • Rated current (Group B)(A)
    • 15
    • Wire Ranget (Group D)(AWG)
    • 26-14
    • Rated voltage (Group D)(V)
    • 300
    • Rated current (Group D)(A)
    • 15

  • DPD6C-83

    End Cover

    For DPD6-P001, DPD6-P002
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
    •

  • DPD6C-38

    End Cover

    For DPD6-P001, DPD6-P002
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
    •

  • DPD6C

    End Cover

    For DPD6-P001, DPD6-P002
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
    •

  • SS11

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
    •

  • TS-35

    DIN-Rail

    For DP / DK..N / DK.. / AK / DKB / DKU.. /DKM.. series.
    Material is iron.
    Length of 1000mm / 2000mm.
  • Add
    •

  • TS-35/15

    DIN-Rail

    For DK / DK-PE series.
    Material is iron.
    Length of 1000mm / 2000mm.
  • Add
    •

  • TS-35C

    DIN rail end cap

    For TS-35 rail.
    Black color.
    Using UL94-V2 class of insulation material.
  • Add
    •

  • TM-R200

    Continuous Flat Marking Labels

  • Add
    •

  • SS7N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
    •

  • SS4N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
    •

  • SS13

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
    •

  • DSD03-M1XXX

    Plug-in bridge

    For DPD6-P001, DPD6-P002
    Red color.
    Using UL94-V0 class of insulation material.
  • Add
    •

  • SS6N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
    •

  • SS5N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
    •

  • SS2N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
    •

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
