• Short description

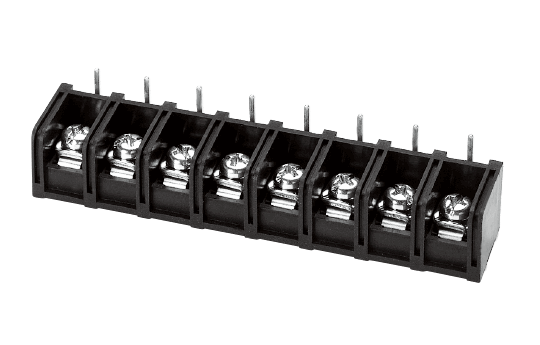

• Barrier terminal blocks , Screw connection

• Long description
• Barrier terminal blocks , screw connection , Pitch : 11.10mm , #6-32 , 600V , 20/45

• Category
• Single Row

• Pitch (mm)
• 11.10

• Color
• Black(default)

• Connection method
• Screw connection

• Type of locking
• Without

• Pin demensions (Thickness x Width)(mm)
• 0.8X1.2

• PCB hole diameter (mm)
• 1.5~1.6

• Level
• Single Row

• Insulation material
• PA66

• Insulation material group
• IIIa

• Flame retardant rating , compliant with UL94
• V0

• Conductor material
• Copper Alloy

• Plating of conductor surface
• Tinned

• Rated current (A)
• 32

• Rated voltage (II/2)(V)
• 1000

• Rated voltage (III/2) (V)
• 1000

• Rated voltage (III/3)(V)
• 500

• Rated impulse voltage (II/2)(KV)
• 8

• Rated impulse voltage (III/2)(KV)
• 8

• Rated impulse voltage (III/3)(KV)
• 8

• Conductor cross section solid. min (mm²)
• 0.34

• Conductor cross section solid.max (mm²)
• 4

• Conductor cross section stranded. min (mm²)
• 0.34

• Conductor cross section stranded. max (mm²)
• 4

• 2 conductors with same cross section, solid, max (mm²)
• 2.5

• 2 conductors with same cross section, stranded, max (mm²)
• 2.5

• Screw thread
• #6-32

• Slotted screwdriver size (Blade thickness x Width)(mm)
• 0.8x4.0

• Philips screwdriver size
• PH2

• Rated torque (N.m)
• 1

• Recommend tightening torque. min (N.m)
• 0.8

• Recommend tightening torque. max (N.m)
• 1

• Stripping Length (mm)
• 7~8

• Rated voltage (UL/CUL Group B)(V)
• 600

• Rated current (UL/CUL Group B)(A)
• 20 Str /45 Sol

• Rated voltage (UL/CUL Group C)(V)
• 600

• Rated current (UL/CUL Group C)(A)
• 20 Str/45 Sol

• Min. solid wire connection (AWG) acc. to UL/CUL
• 22/10

• Max. solid wire connection AWG acc. to UL/CUL
• 12/8

• Min. stranded wire connection AWG acc. to UL/CUL
• 22/10

• Max. stranded wire connection AWG acc. to UL/CUL
• 12/8

• Back of the hand protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 11.005

• Operating temperature. min (°C)
• -40

• Wire Range (Group B)(AWG)
• 22~8

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 20 Str /45 Sol

• Wire Range (Group C)(AWG)
• 22~8

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 20 Str/45 Sol

• Wire Range (Group B)(AWG)
• 22~8

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 20 Str /45 Sol

• Wire Range (Group C)(AWG)
• 22~8

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 20 Str/45 Sol

• Wire Range (mm²)
• 0.34~4

• Rated current (A)
• 32
