The photo demonstrate a 12 pole product
The photo demonstrate a 12 pole product
The photo demonstrate a 12 pole product
General information
Short description
PCB Connector – Socket, Wave soldering
Long description
PCB Connector – Socket, Wave soldering, Pitch:5.00mm, 300V, 8A
Category
PCB Connector – Socket
Soldering method
Wave soldering
Length (mm)
3.50*(P/2-1)+4.3
Pin demensions (Thickness x Width)(mm)
0.8x0.8

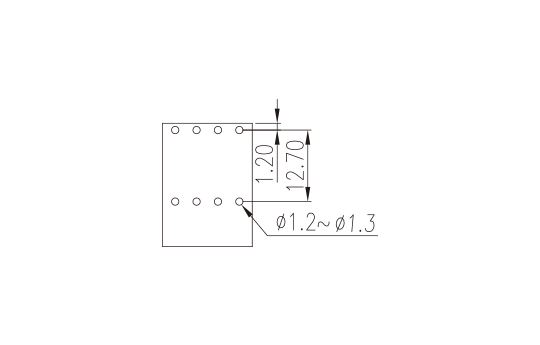

PCB hole diameter (mm)
1.2~1.3
Number of positions
04P~32P
Material information
Insulation material group
IIIa
Flame retardant rating , compliant with UL94
V0
Insulation resistance
≥1000MΩ at DC 500V
Conductor material
COPPER ALLOY
Plating of conductor surface
Tin PLATED
Connection data-IEC
Rated voltage (II/2)(V)
320
Rated voltage (III/2) (V)
160
Rated voltage (III/3)(V)
160
Rated impulse voltage (II/2)(KV)
2.5
Rated impulse voltage (III/2)(KV)
2.5
Rated impulse voltage (III/3)(KV)
2.5
Connection data-UL
Rated voltage (UL/CUL Group B)(V)
300
Rated current (UL/CUL Group B)(A)
8
Rated voltage (UL/CUL Group D)(V)
300
Rated current (UL/CUL Group D)(A)
8
Environment & Safety
Finger protection (YES or NO)
YES
Operating temperature. max (°C)
120
Operating temperature. min (°C)
-40
UL Recognized
Rated voltage (Group B)(V)
300
Rated current (Group B)(A)
8
Rated voltage (Group D)(V)
300
Rated current (Group D)(A)
8
CUL Recognized
Rated voltage (Group B)(V)
300
Rated current (Group B)(A)
8
Rated voltage (Group D)(V)
300
Rated current (Group D)(A)
8
VDE Approval
ECHK1
Keycode
Keycode Orange color. For ECH350 Series, ECH381 Series, ECHP381 Series, ECHB350 Series, ECHB381 Series, ECH508 Series, EECH350 Series, EECH381 Series, 0221-25XX, 0221-33XX, 0221-39XX, 0221-41XX, 0221-51XX, 0221-52XX. Using UL94-V0 class of insulating material.
Add
The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
