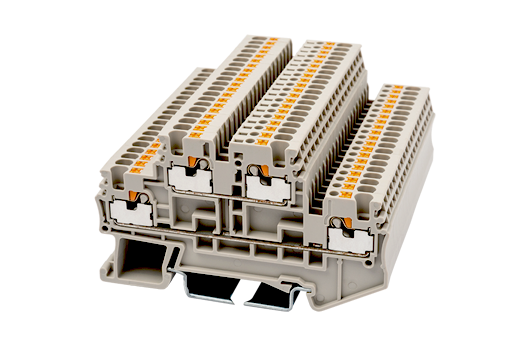

DPP1.5

DIN Rail Terminal BlocksPush-in Design

300V, 15A, Beige (default)

PDF Download Inquiry Add

General information Material information Connection data-IEC Connection data-UL Environment & Safety
  •
    General information
    • Short description

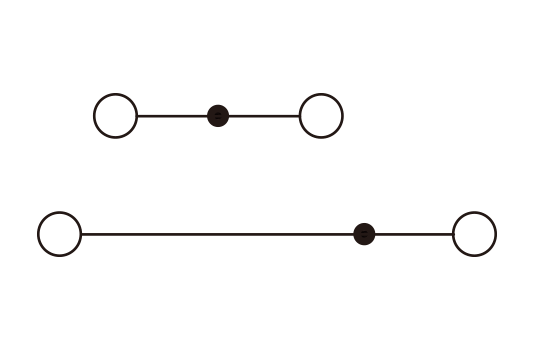

    • Bi-level Feed-Through Terminal Block, Push-in Design
    • Long description
    • Bi-level Feed-Through Terminal Block, Push-in Design, Width : 3.5mm, 300V, 15A
    • Category
    • Bi level Feed Through Terminal Blocks
    • Color
    • Beige (default)
    • Connection method
    • Push-in Design
    • Type of locking
    • Rail Mounting
    • Length (mm)
    • 69
    • Width (mm)
    • 3.5
    • Height (mm)
    • 41.2
    • Number of positions
    • ≧1P
    • Level
    • Double level
    • Connection points
    • 4
  •
    Material information
    • Insulation material
    • PA
    • Insulation material group
    • I
    • Flame retardant rating , compliant with UL94
    • V0
    • Insulation resistance
    • ≧500MΩ at DC 500V
  •
    Connection data-IEC
    • Rated voltage (V)
    • 500
    • Rated current (A)
    • 17.5
    • Rated voltage (III/3)(V)
    • 500
    • Rated impulse voltage (III/3)(KV)
    • 6
    • Conductor cross section solid. min (mm²)
    • 0.14
    • Conductor cross section solid.max (mm²)
    • 1.5
    • Conductor cross section stranded. min (mm²)
    • 0.14
    • Conductor cross section stranded. max (mm²)
    • 1.5
    • Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
    • 0.25
    • Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
    • 1.5
    • Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
    • 0.25
    • Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
    • 0.75
    • Slotted screwdriver size (Blade thickness x Width)(mm)
    • 0.4x2.5
    • Stripping Length (mm)
    • 8
    • Mounting rail
    • TS-35
    • End cover plate required
    • YES
    • Grounding connections
    • NO
  •
    Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 300
    • Rated current (UL/CUL Group B)(A)
    • 15
    • Rated voltage (UL/CUL Group C)(V)
    • 300
    • Rated current (UL/CUL Group C)(A)
    • 15
    • Min. solid wire connection (AWG) acc. to UL/CUL
    • 26
    • Max. solid wire connection AWG acc. to UL/CUL
    • 14
    • Min. stranded wire connection AWG acc. to UL/CUL
    • 26
    • Max. stranded wire connection AWG acc. to UL/CUL
    • 14
  •
    Environment & Safety
    • Back of the hand protection (YES or NO)
    • YES
    • Finger protection (YES or NO)
    • YES
    • Operating temperature. max (°C)
    • 120
    • Operating temperature. min (°C)
    • -40

  • TM41LW

    For BEST APPLICATION： DP1.5N, DP1.5N-PE, DP1.5N-TN, DP1.5N-TN-PE, DP1.5N-TR, DP1.5N-TR-PE, DPH1.5, DPH1.5-PE, DPP1.5N, DPP1.5N-PV, DPP1.5N-L2PE, DPP1.5N-PE, DPH1.5SG AVAILABLE APPLICATION： AK1.5, AK1.5-PE, AK1.5-TN, AK1.5-TN-PE, AK1.5-TR, AK1.5-TR-PE, AKK1.5 White color. Using UL94-V0 class of insulation material.
  • add
    •

  • SS11

    For TS-35, TS-35/15 rails. Beige color. Using UL94-V0 class of insulation material.
  • add
    •

  • TS-35

    For DP / DK..N / DK.. / AK / DKB / DKU.. /DKM.. series. Material is iron. Length of 1000mm / 2000mm.
  • add
    •

  • TS-35C

    For TS-35 rail. Black color. Using UL94-V2 class of insulation material.
  • add
    •

  • DPP1.5C

    For DPP1.5 Beige color. Using UL94-V0 class of insulation material.
  • add
    •

  • DSD03-1.5XX

    For DP1.5N, DP1.5N-TN, DP1.5N-TR, DP1.5N-PE, DP1.5N-TN-PE, DP1.5N-TR-PE, DPH1.5, DPH1.5-PE, DPH1.5SG, DPP1.5N Series, DPD10-P001, DKD35-P002 Red color. Using UL94-V0 class of insulation material.
  • add
    •

  • MKP-502

    For DPP Series, AKK Series. Using UL94-V0 class of insulation material.
  • add
    •
