General information
- Short description

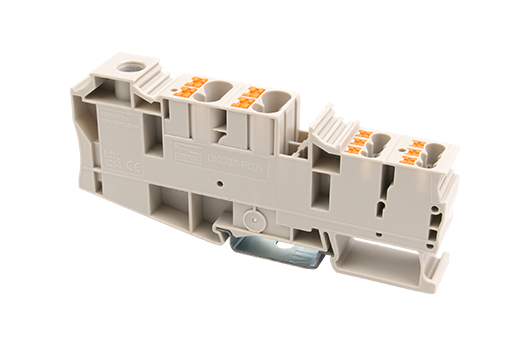

- Potential collective Terminal Block, Screw Connection / Push-in Design
- Long description
- Potential collective Terminal Block, Screw Connection / Push-in Design, Width: 16mm, M6, 600V, 102A
- Category
- Potential collective Terminal Block
- Color
- Beige (default)
- Connection method
- Screw Connection / Push-in Design
- Length (mm)
- 108
- Width (mm)
- 16
- Height (mm)
- 47
- Level
- Single level
- Connection points
- 11
-
Material information
- Insulation material
- PA
- Insulation material group
- I
- Flame retardant rating , compliant with UL94
- V0
- Insulation resistance
- ≥500MΩ at DC 500V
-
Connection data-IEC
- Rated voltage (V)
- 1000
- Rated current (A)
- Line Side: 105 / Load Side1: 41 / Load Side2: 24
- Rated voltage (III/3)(V)
- 1000
- Rated impulse voltage (III/3)(KV)
- 8
- Conductor cross section solid. min (mm²)
- Line Side: 1.5 / Load Side1: 0.5 / Load Side2: 0.14
- Conductor cross section solid.max (mm²)
- Line Side: 50 / Load Side1: 10 / Load Side2: 4
- Conductor cross section stranded. min (mm²)
- Line Side: 1.5 / Load Side1: 0.5 / Load Side2: 0.14
- Conductor cross section stranded. max (mm²)
- Line Side: 35 / Load Side1: 6 / Load Side2: 2.5
- Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
- Line Side: 1.5 / Load Side1: 0.5 / Load Side2: 0.25
- Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
- Line Side: 35 / Load Side1: 6 / Load Side2: 2.5
- Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
- Line Side: 1.5 / Load Side1: 0.5 / Load Side2: 0.25
- Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
- Line Side: 35 / Load Side1: 6 / Load Side2: 2.5
- 2 conductors with same cross section, solid, min (mm²)
- 1.5
- 2 conductors with same cross section, solid, max (mm²)
- 16
- 2 conductors with same cross section, stranded, min (mm²)
- 1.5
- 2 conductors with same cross section, stranded, max (mm²)
- 10
- 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²)
- 1.5
- 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²)
- 10
- 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
- Line Side: 1.5 / Load Side1: 0.5 / Load Side2: 0.5
- 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
- Line Side: 10 / Load Side1: 1.5 / Load Side2: 0.5
- Screw thread
- M6
- Philips screwdriver size
- 0.6X3.5 / 0.8X4 / 1X5.5
- Recommend tightening torque. min (N.m)
- 4.0
- Recommend tightening torque. max (N.m)
- 6.0
- Mounting rail
- TS-35
-
Connection data-UL
- Rated voltage (UL/CUL Group B)(V)
- 600
- Rated current (UL/CUL Group B)(A)
- Line Side:102 / Load Side1: 40 / Load Side2: 20
- Rated voltage (UL/CUL Group C)(V)
- 600
- Rated current (UL/CUL Group C)(A)
- Line Side:102 / Load Side1: 40 / Load Side2: 20
- Min. solid wire connection (AWG) acc. to UL/CUL
- Line Side: 12 / Load Side1: 20 / Load Side2: 26
- Max. solid wire connection AWG acc. to UL/CUL
- Line Side: 1/0 / Load Side1: 8 / Load Side2: 12
- Min. stranded wire connection AWG acc. to UL/CUL
- Line Side: 12 / Load Side1: 20 / Load Side2: 26
- Max. stranded wire connection AWG acc. to UL/CUL
- Line Side: 1/0 / Load Side1: 8 / Load Side2: 12
-
Environment & Safety
- Back of the hand protection (YES or NO)
- YES
- Finger protection (YES or NO)
- NO
- Operating temperature. max (°C)
- 120
- Operating temperature. min (°C)
- -40
-
UL Recognized
- Wire Range (Group B)(AWG)
- Line Side：12~1/0 / Load Side1: 20~8 / Load Side2: 26~12
- Rated voltage (Group B)(V)
- 600
- Rated current (Group B)(A)
- Line Side：102 / Load Side1: 40 / Load Side2: 20
- Wire Range (Group D)(AWG)
- Line Side：12~1/0 / Load Side1: 20~8 / Load Side2: 26~12
- Rated voltage (Group D)(V)
- 600
- Rated current (Group D)(A)
- Line Side：102 / Load Side1: 40 / Load Side2: 20
-
CUL Recognized
- Wire Range (Group B)(AWG)
- Line Side：12~1/0 / Load Side1: 20~8 / Load Side2: 26~12
- Rated voltage (Group B)(V)
- 600
- Rated current (Group B)(A)
- Line Side：102 / Load Side1: 40 / Load Side2: 20
- Wire Ranget (Group D)(AWG)
- Line Side：12~1/0 / Load Side1: 20~8 / Load Side2: 26~12
- Rated voltage (Group D)(V)
- 600
- Rated current (Group D)(A)
- Line Side：102 / Load Side1: 40 / Load Side2: 20
-
